AUECOOR Flexible Solar Panel 100W Solar System + PWM 20A LED Solar Controller + 5M Solar Cable + Cable Entry Cover for RV Boat Off Grid
Description

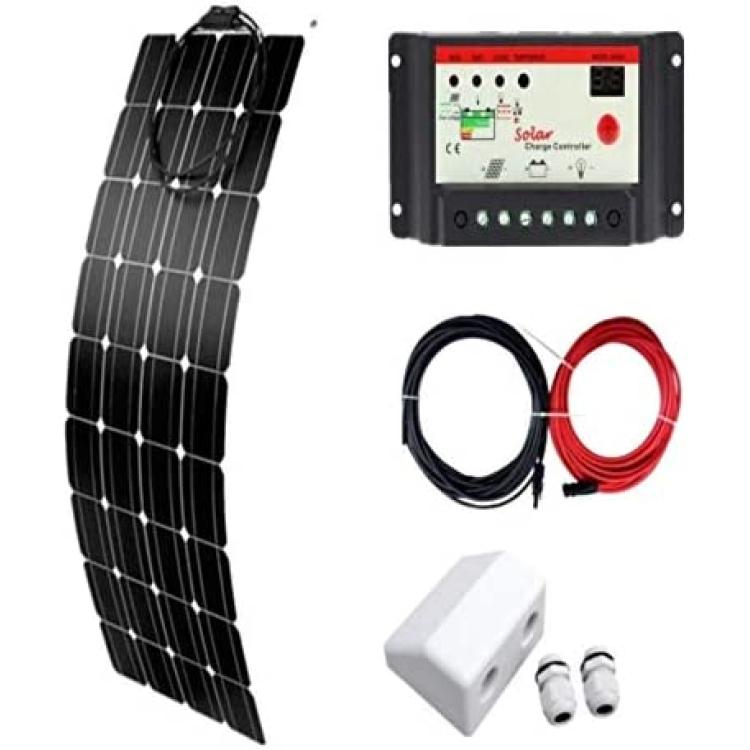

Package include:
* 1 x100W flexible solar panel,
* 1 x 20A LED 12V/24V solar controller,
* 1 x 5M red and black solar cable with connectors(red about 2.5m, black about 2.5m),
* 1 x ABS cable entry cover.

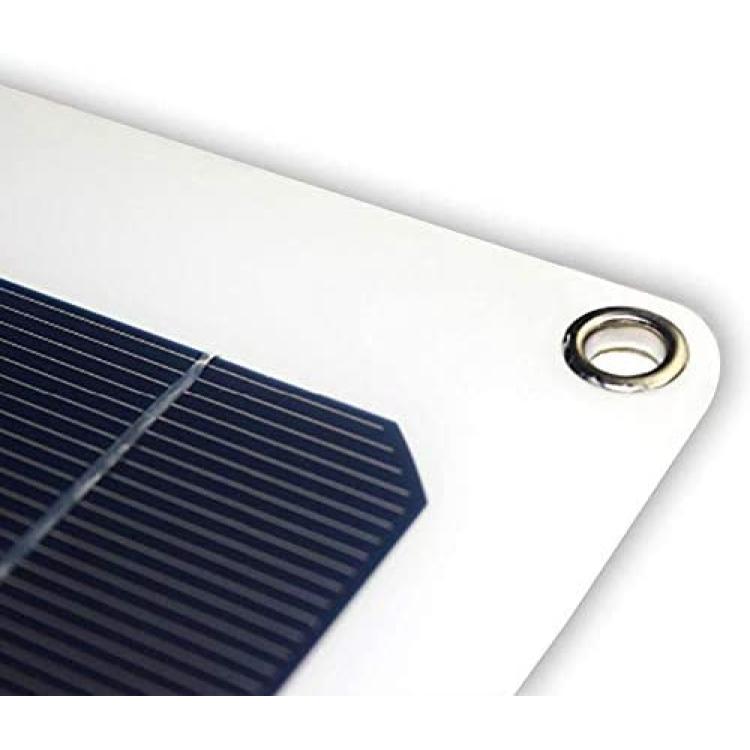

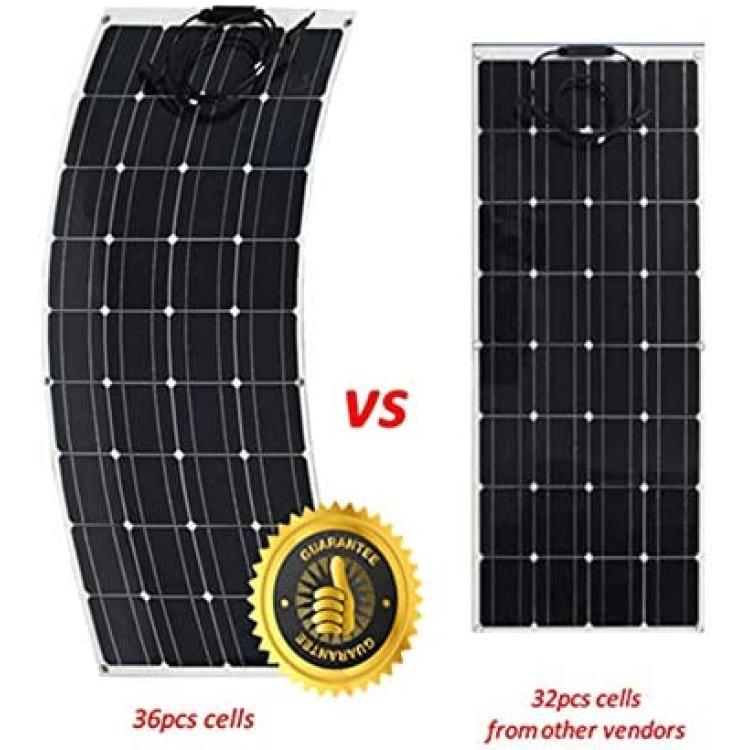

* 100W Flexible Solar Panel (36pcs cells)
Specification:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 18 V
Open-Circuit Voltage (Voc):21 V
Optimum Operating Current (Imp): 5.5 A
Short-Circuit Current (Isc): 6.25 A
Dimensions:1200*550*2.5mm /47.24X21.65X0.1 In
Weight: 4.40lbs (2.0KG)
90mm of special cable with connectors attached
Juction box with diodes within for safety protection

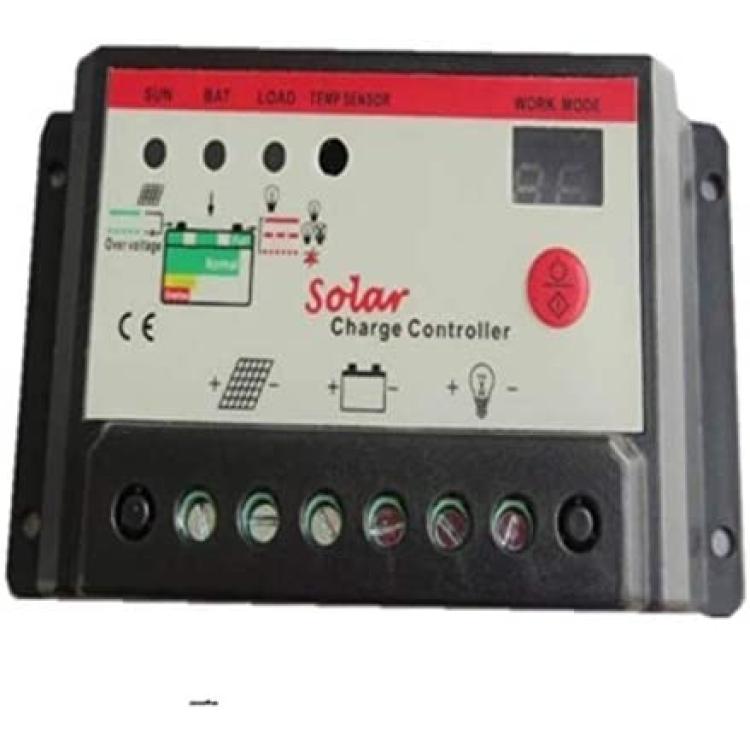

* PWM 20A LED 12V/24V Solar Controller
Specification:
MODEL LTD1210N LTD1220N LTD1230N
Rated charge current 10A 20A 30A
Rated discharge current 10A 20A 30A
System Voltage 12V/24V Auto
Max solar panel voltage 40V
Over load protection 130% ( maintain for 60 secs)
160% ( maintain for 5 secs)
over-load ( immediately shut down)
Self-consume <6mA
Charge circuit voltage drop <0.26V
Discharge circuit voltage drop <0.15
Equalize charging voltage 14.8V
Bulk charging voltage 14.2V
Acceptance voltage(PWM) 14.2V
Float charging voltage 13.8V
Charge return voltage 13.2V
Discharge stop voltage 11.2V
Discharge return voltage 12.6V
Temperature compensation -4mV/?/2V
Operating temperature -35?-55?
Dimension 140x90x28mm
Weight 210g
all voltage X2 when using 24V system.
Warm Tips:
Please handle the solar panel with care and avoid over-bending or bump, otherwise this may result in damage to the product.
The plastic film is used to protect the panel, it may fall off during use, but it will not affect the solar panel.
Please feel free to contact AUECOOR if need any help.
