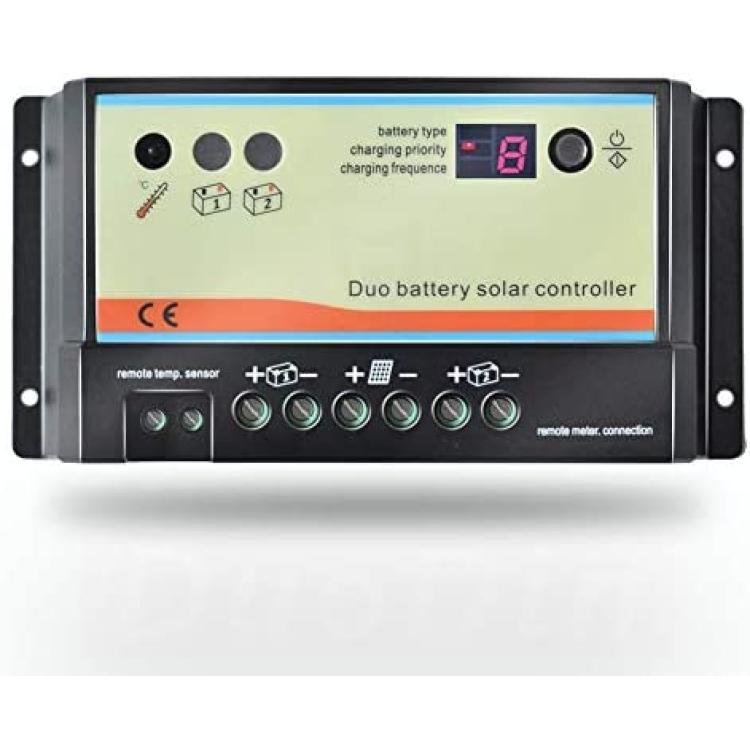

EVPEVER 10A Solar Charge Controller 12V/24V Auto Working Dual Battery Solar Panel Charge Controller PWM 10AMP Intelligent Solar Panel Batteries Regulator for Motorhome, Caravan, Boat
Share Facebook Twitter Pinterest Email

EVPEVER 10A Solar Charge Controller 12V/24V Auto Working Dual Battery Solar Panel Charge Controller PWM 10AMP Intelligent Solar Panel Batteries Regulator for Motorhome, Caravan, Boat

Brand: EPEVER
Product Code: MM16402
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

*Designed to charge and protect 2 batteries or battery banks independently with required charging priority (e.g. 80%/20%).

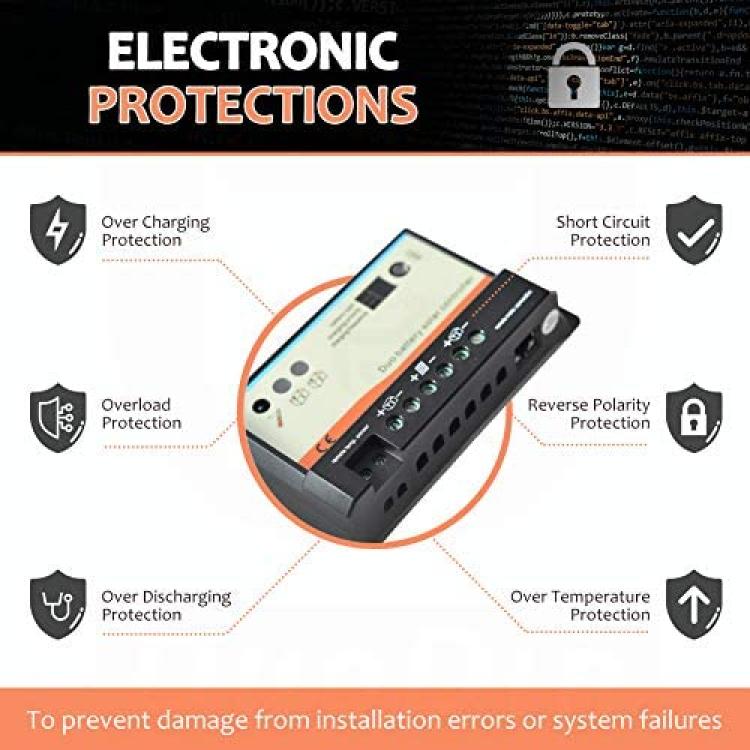

*Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.

*All necessary protections equipped, adjustable controlling parameter of the system, easy to set up and operate.

*Various types of batteries supported: sealed, gel, flooded.

*Fit for motorhome, caravan, boat or any system with two 12V / 24V batteries or battery banks.

Description

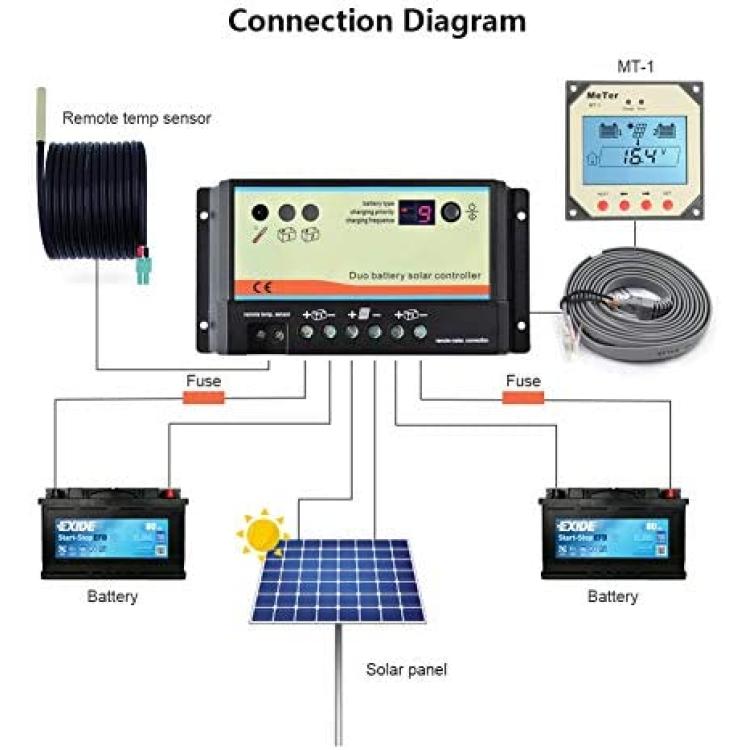

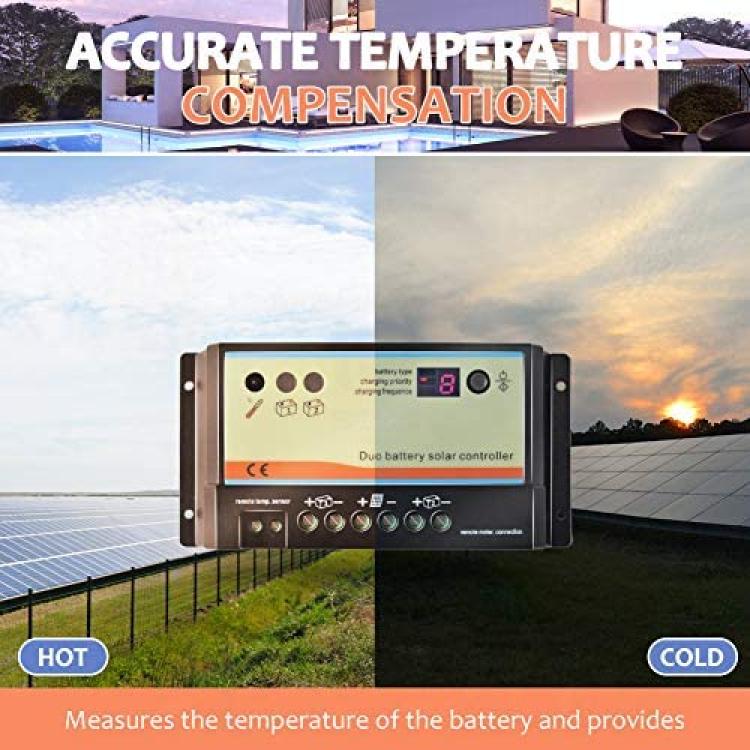

This dual battery solar charge controller is designed for independent charging of 2x12V or 2x24V batteries / battery banks.The controller uses PWM (Pulse Width Modulation) technology which increases charge acceptance and extends the life of your batteries. PWM technology can also recover some lost battery capacity.Initial charging priority can be set e.g. 80% of power to the engine battery and 20% to leisure battery. When one of the batteries is fully charged the controller will automatically divert all power to the other battery.Solar System: 12V/24V Auto recognitionMaximum solar voltage: 30V?12V System?/ 55V?24V System?Battery voltage range: 8?15VBoost time: 120 minutesSelf-consumption: 4mA at night, 10mA at chargingMeterbus connection: 8- PIN RJ-45Temp. Compensation: -5mV/?/2VTerminals: 4mm2Temperature: -35? ? +55?Rated voltage: 12VMin voltage (suggest): 8.0VBacklight and LED indicator off: <17mAOperation temperature: -40? ? +60?Communication cable: RJ45 (8PIN), 10 meterEPEVER MT-1 Remote Meter with LCD Display for 10A/20A Dual Battery Solar Panel Charge ControllerBattery charge / accumulated capacity / min and max voltage can be recorded which is great for comparing performance of the system at different periodsOver load protection, Short circuit protection, Reverse polarity protection, Over charging or discharging protection, Reverse current protection during nightThree leds flashing, each LED express different specifications, choose the 3 LED first according to the following information, and then press the switch for 5 seconds until the number flashing, choose one number as you need, and leave it and the number you set will be savedNote: all the data is for 12V, for 24V, please use 2xFit for motorhome, caravan, boat or any system with two 12V/24V batteries or battery banks
