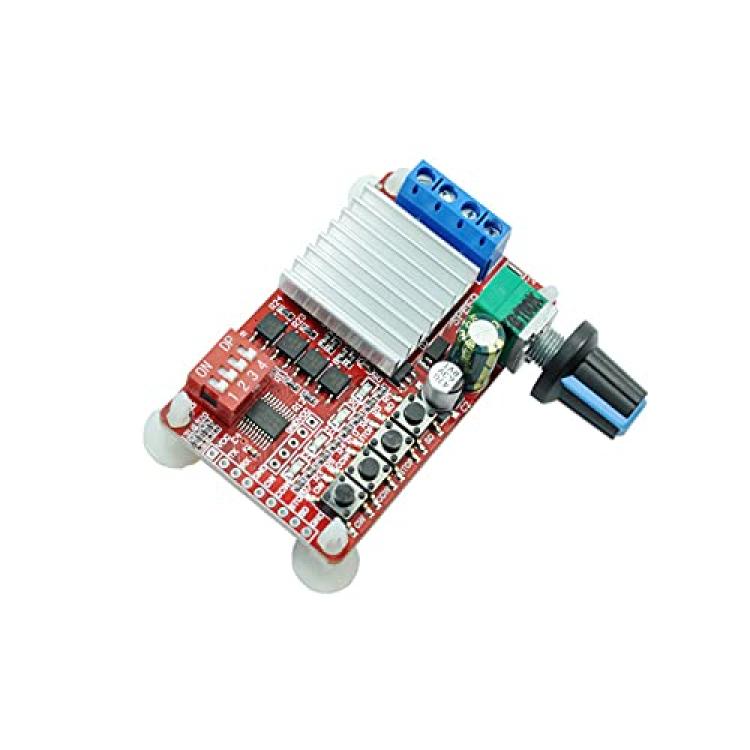

The Drive Board of 12v24v DC Motor Governor Variable Frequency Variable Speed Forward and Reverse Controller can Communicate with Upper Computer

Product parameters:

1. Input voltage range: dc5v-26v. (without anti reverse protection)

2. Drive motor current: maximum 5a, instantaneous maximum current 50A. (without short circuit protection, it is recommended to connect 6A fuse in series with the output end)

3. Standby current: <5mA.

4. Speed range: 0% - 100% stepless speed regulation through rotary potentiometer.

5. Frequency range:

[manual control] there are 8 gears from 300Hz to 10kHz.

[automatic, software, serial port control] 300hz-10khz can be adjusted at will.

Note: the lower the selection frequency, the greater the fluctuation of input power.

6. Serial communication: TTL level. (not directly connected to 232 interface of computer)

7. Working temperature: - 40 ? - 85 ?.

8. Size: L * w * h 67 * 39 * 15mm.

9. Mounting hole: 4mm in diameter.

10. Weight: 30g

·There is an external port, which can be connected with control switch and TTL communication. The software can be loaded into the module after setting the program.

·The running state can be switched quickly, without noise and stepless speed change.
