ICQUANZX DC Brush Motor Speed Controller DC10-55V Forward Reverse with Digital Display&Fan Inside 40A-60A
About this product
*Input supply voltage: DC 10V-55V；Maximum current: 60A； Continuous current: 40A
*speed regulation mode: potentiometer (linear)；Speed range: 0-100%
*With Brushless Cooling fan inside;Forward rotation: Support
*Potentiometer with switch function,High power speed controller switch which is much more adaptable.
*The input voltage must be equal to the rated voltage of the motor within the range of DC10-55V
Description
Features:
Motherboard size: 100mm*80mm*28mm ;
Shell size:100mm*90mm*45mm
Brand New and high quality
Forward & Reverse: Support
Regulation Method: Potentiometer with switch
Wiring Type: terminal Knob
Rotary Knob: 100K(with switch)
Suitable for: Brushed DC motor
Bidirectional rotation: setting direction of rotation is optional, which means that accomplishes reversing the motor's direction.
Note:

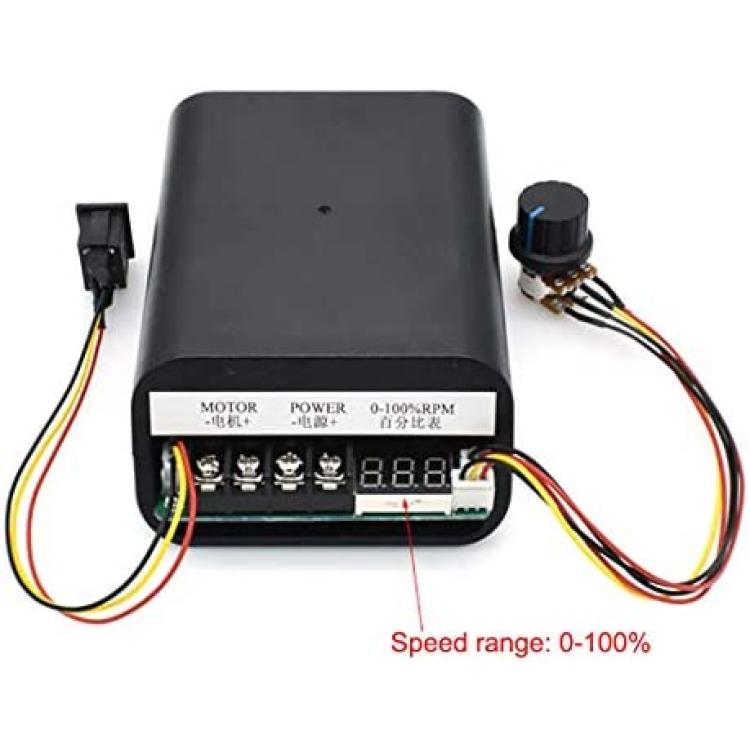

1.The digital display is the percentage of motor full speed 0-100 non-motor actual speed
2.The input voltage must be positive and negative
3.The input voltage must be equal to the rated voltage of the motor within the range of DC10-55V
Package Including:
1 x DC Motor Speed Controller
