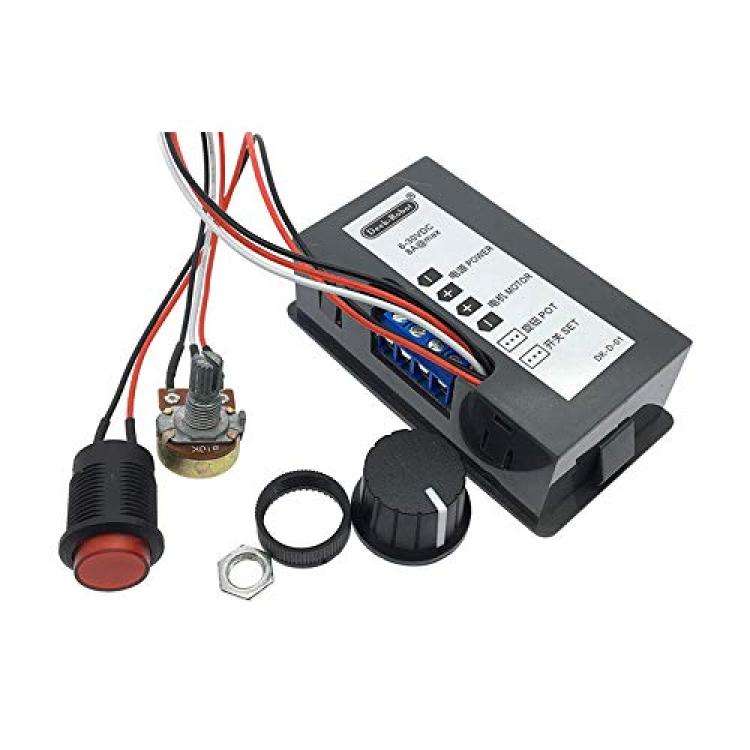

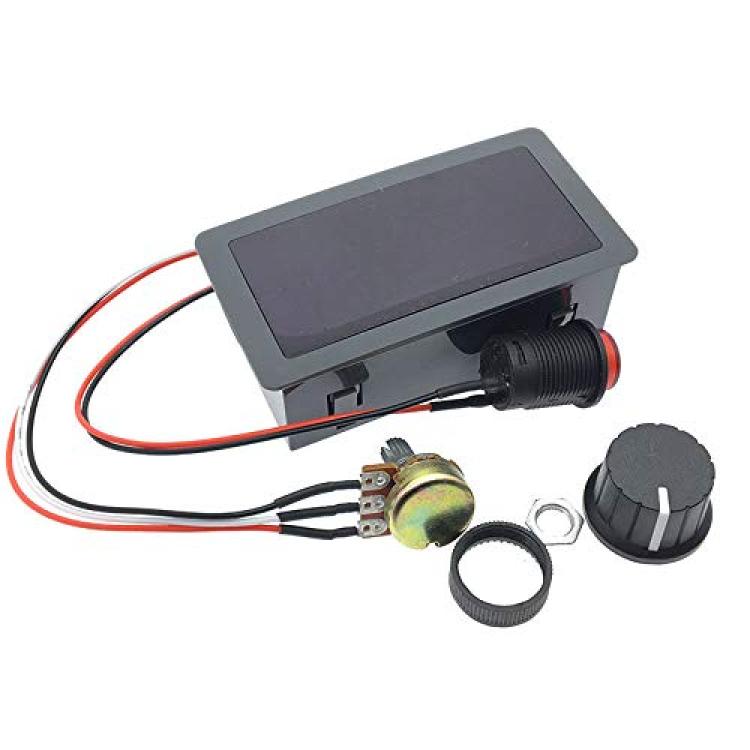

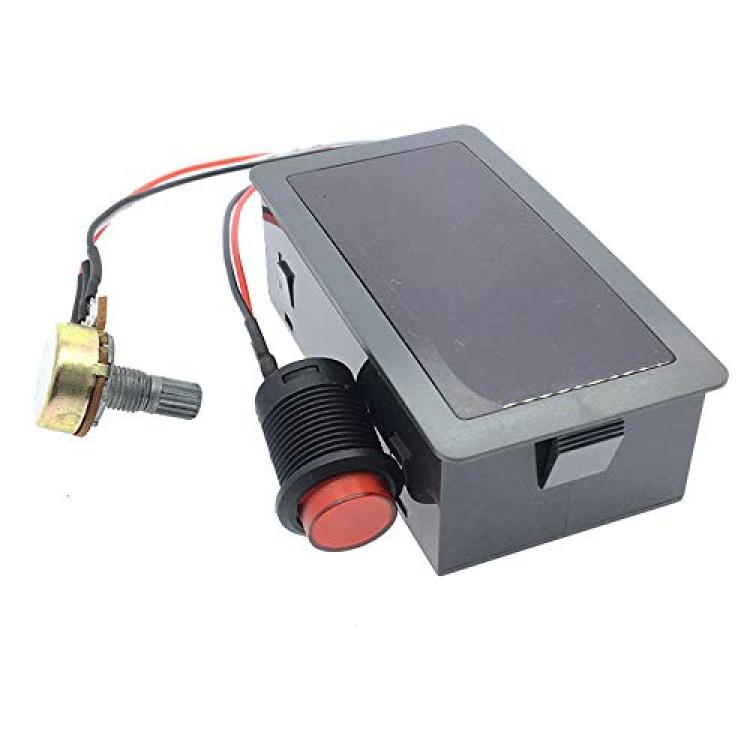

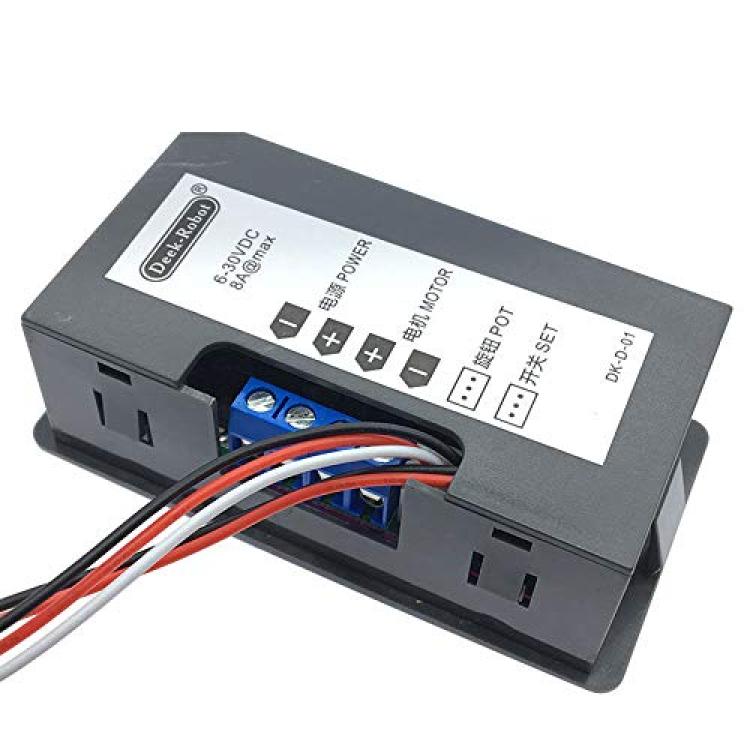

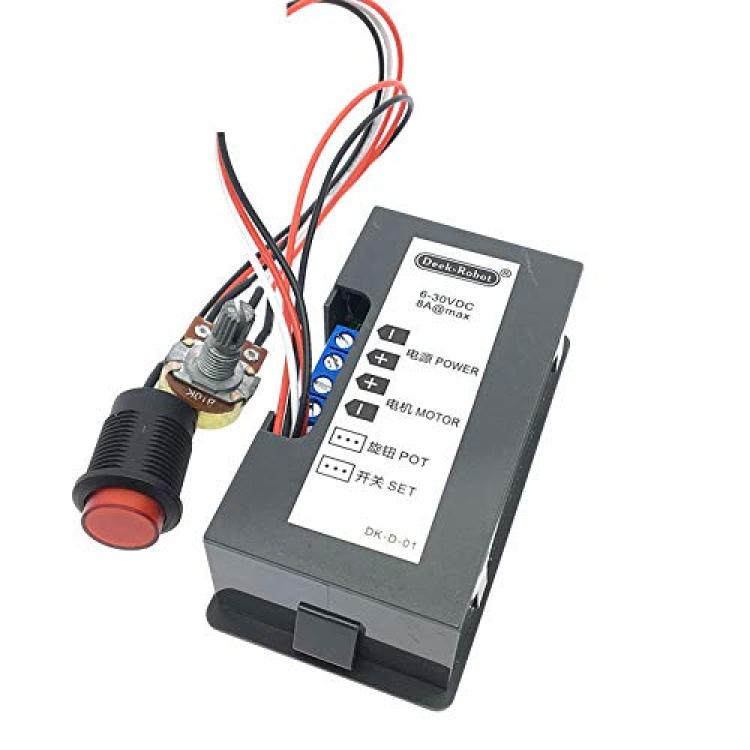

Electric Motors Governor Digital DC Motor Speed Controller PWM Speed Control Switch 8V-30V

The company produces DC motor speed controller, using the new MCU control system, high-current drive MOS circuits, large-screen display speed ratio, stepless 0-100 precise control. Specially designed anti-power input connection circuit, output overload / short circuit protection. With small size, high precision, wide speed range, low energy consumption, long life, excellent mechanical properties, easy to use features. Widely used in production lines, packaging, printing, food, electronics, instruments, clothing machinery, medical machinery and other industries to do the speed, the drive means. InstructionsIn accordance with the wiring diagram on the back of the product after the completion of energization, the standby indicator light on the panel, click the red button to start to work, the panel displays the current value of output speed ratio, rotary potentiometer value begins to change and change the output speed ratio. parameterParameter Input voltage DC8-30VOperating current 0-8A (more than 8A start protection)Display three "0.56" LED digital tubeDisplay color redLead Length 20cmDimensions 79 x 42x 26 mm, length X width X thickness;Hole size 72 x 39 mmWeight about 55gOperating temperature -20 'C ~ 65 'C
