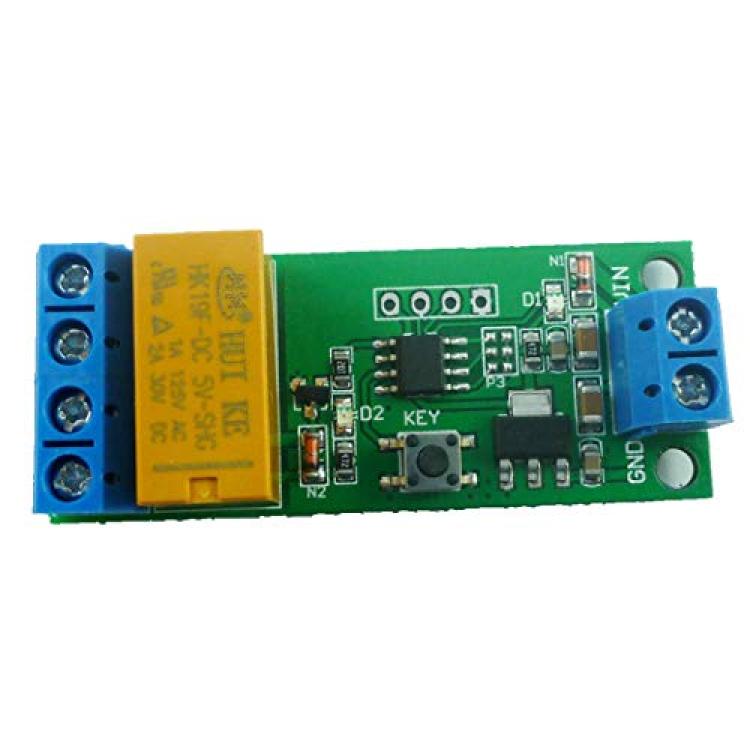

Eletechsup 5V~12V DC Motor Reverse Polarity Cyclic Timer Switch Time Repeater Delay Relay (1)

1 Operating voltage: DC 5-12V(5V 6V 9V 12V)

2 Operating current: 5V,forward 4ma, reverse: 36ma;

12V, Forward 6ma, reverse: 44ma;

3 Load voltage: DC 1-48V OR AC 85-265V

4 Load current: Maximum 2A

5 Forward maximum time: 5000 seconds, 0.1 seconds step

Reverse maximum time: 5000 seconds, 0.1 seconds step

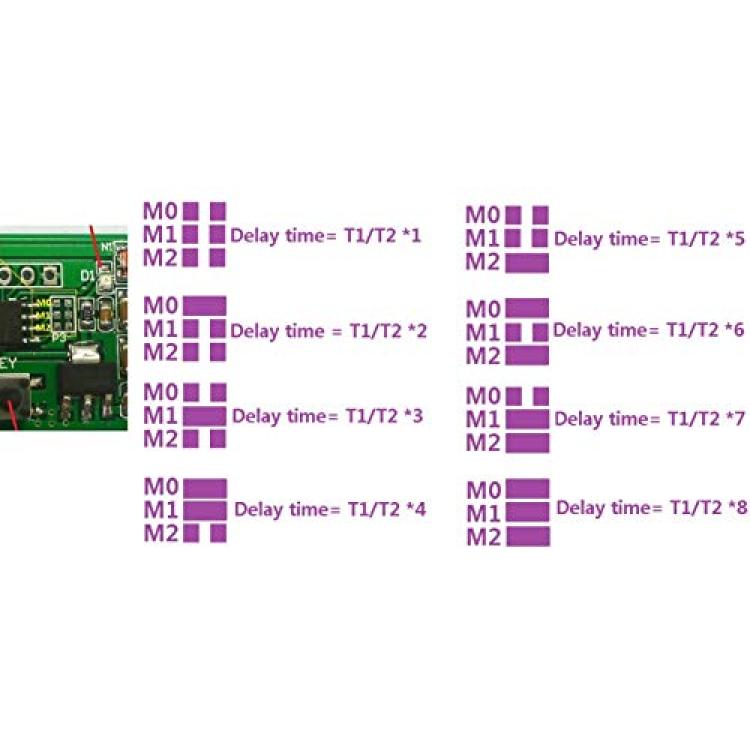

By "Time multiple selection" setting,The maximum delay of up to 40,000 seconds

6 Size: 54mm X 22mm X 15mm

7 Weight: 14.2 g

How to use:

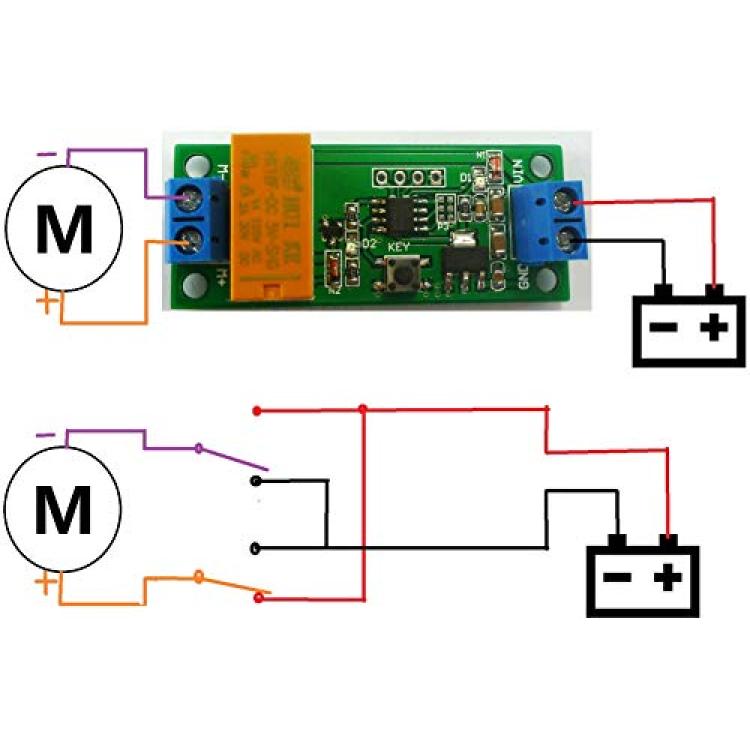

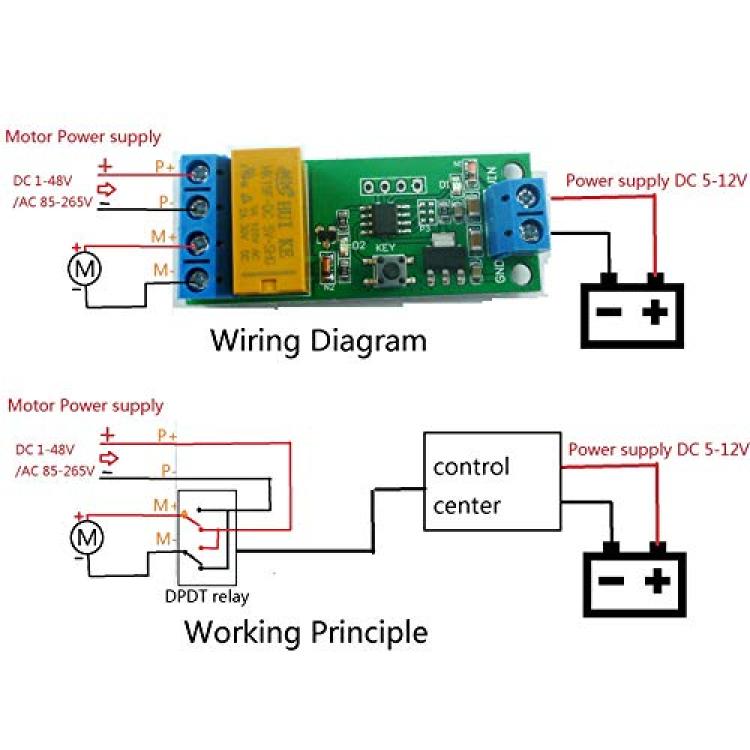

VIN connected to the positive of power supply , GND connected to the negative of power supply;

P+ connected to the positive of Motor power supply, P- connected to the negative of Motor power supply;

M + M- are connected to both ends of the motor

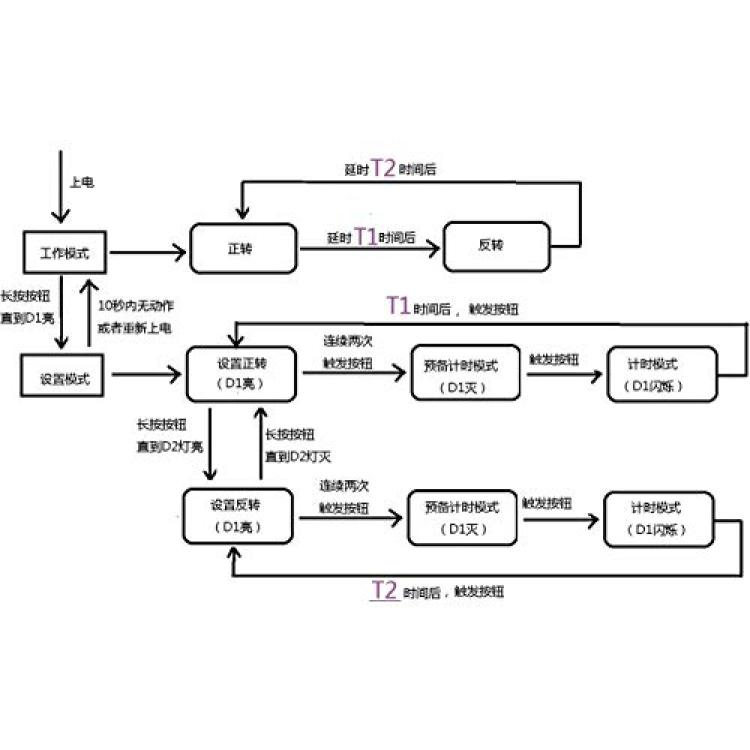

After power, D1 flashes 3 times, D2 off, M+ output positive, M- output negative, motor forward; after a time delay T1, D2 on, M+ output negative, M- output positive, motor reversal; after a time delay T2, D2 off, M+ output positive, M- output negativ, motor forward;and so on.



T1: indicates motor Forward delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)



T2: indicates motor Reverse delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)



By "Time multiple selection" setting,The maximum delay of up to 40,000 seconds
