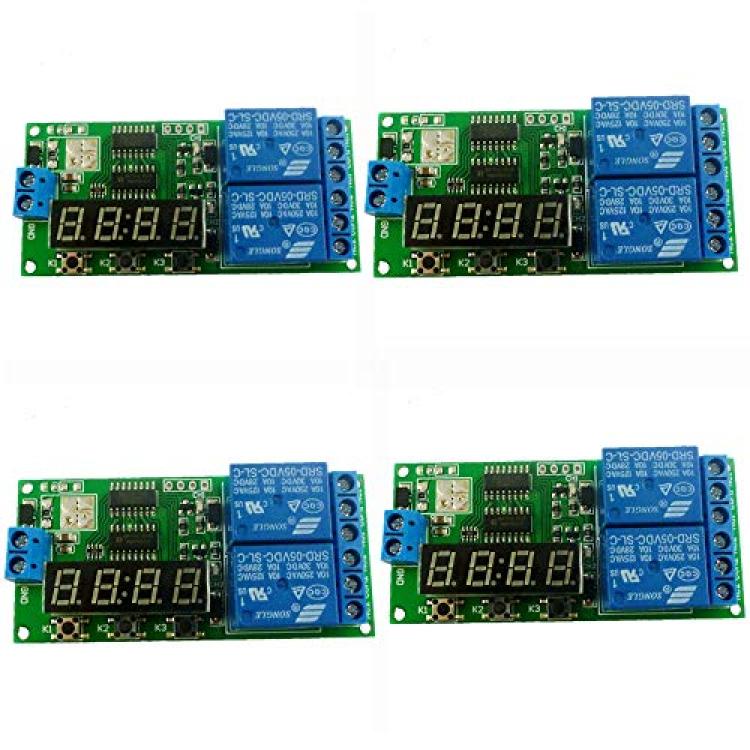

Eletechsup DC 5V 2 Channel 9 Function Delay Timer Relay Module Controller Motor Reverse Cycle Loop Timers Interlock Latch Switch Board LED (4)

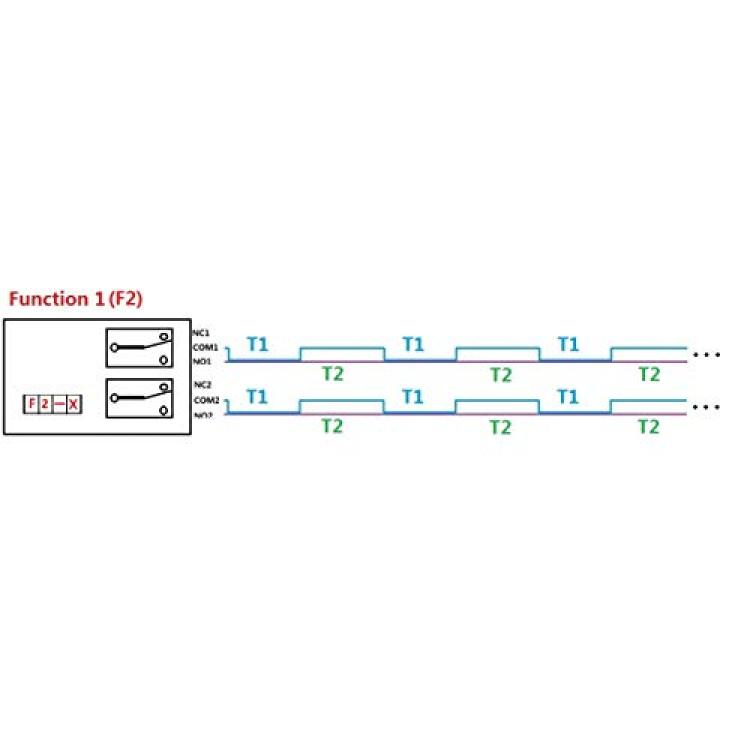

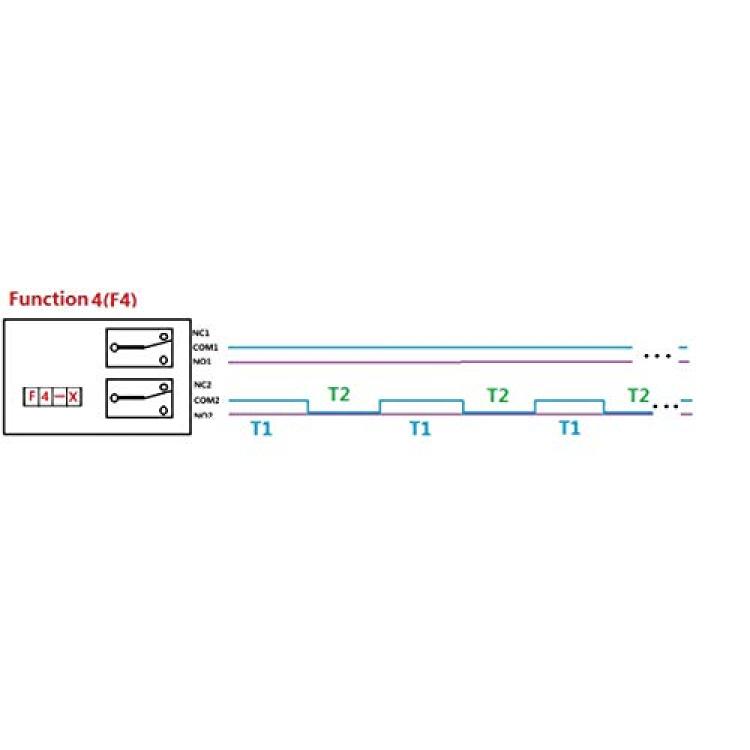

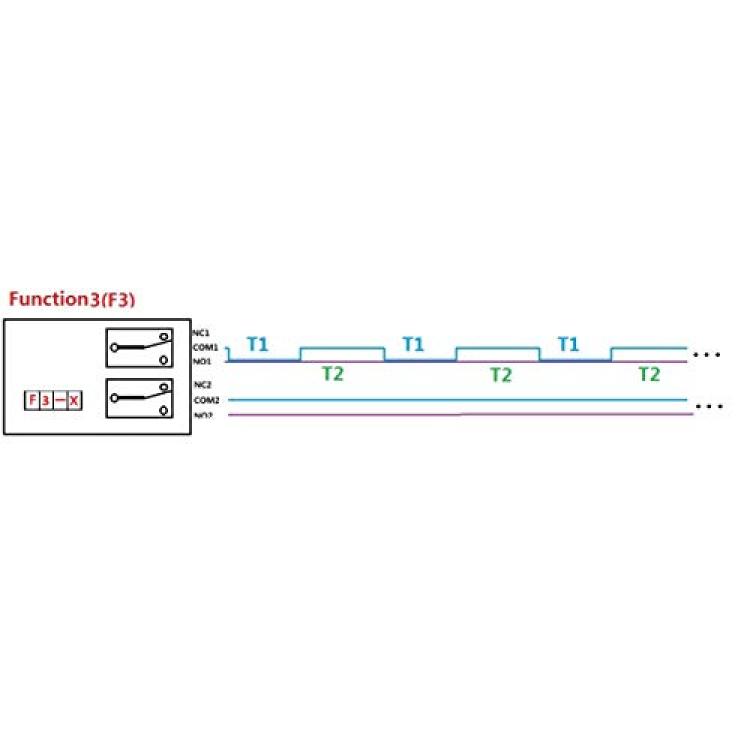

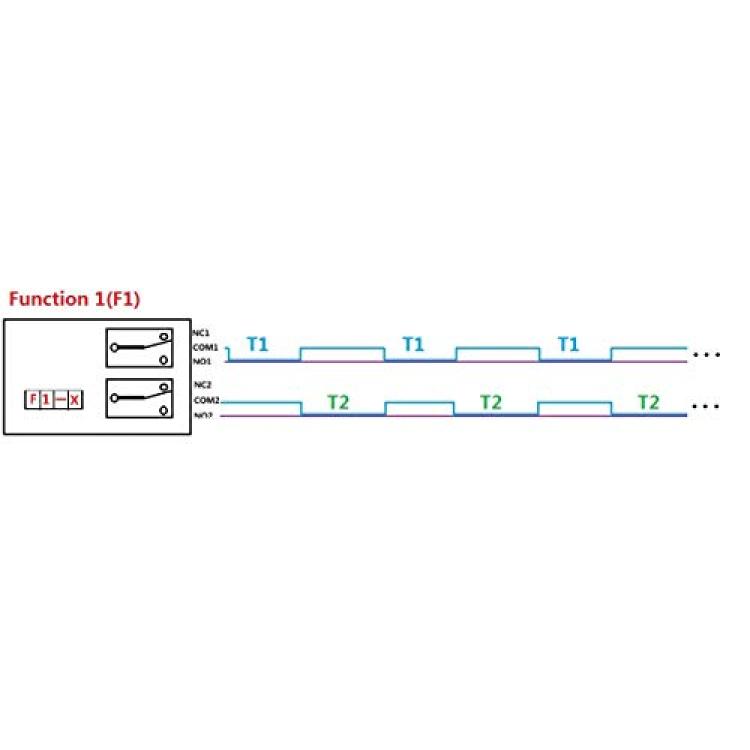

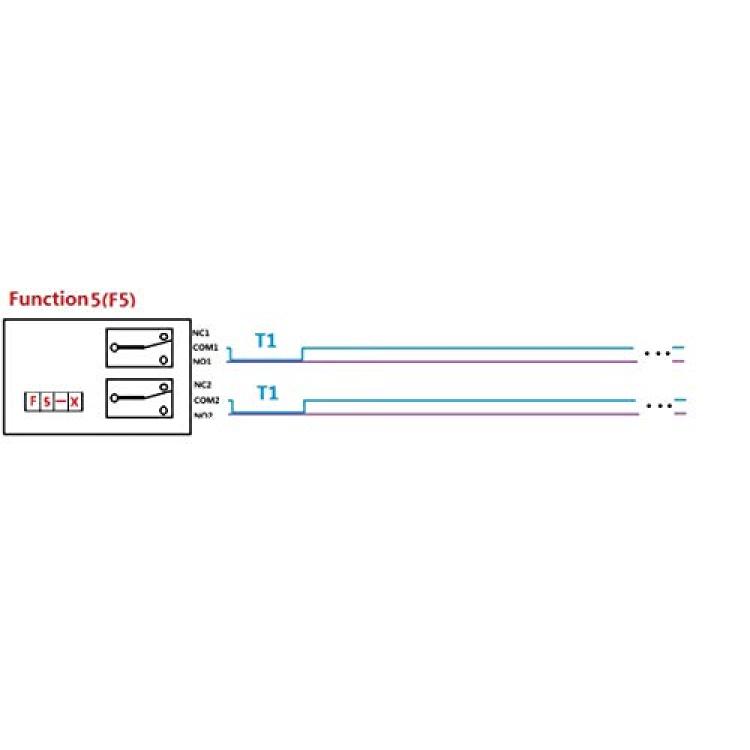

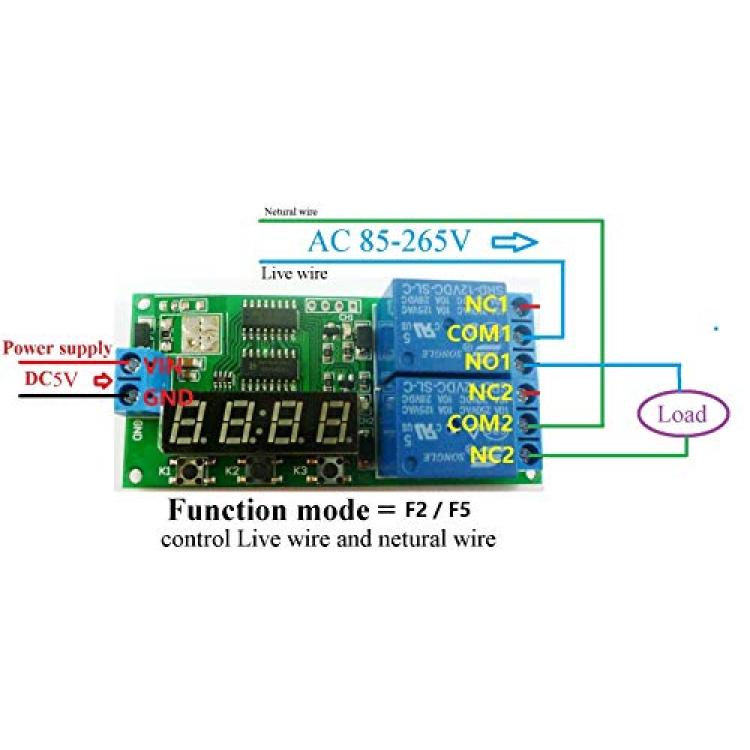

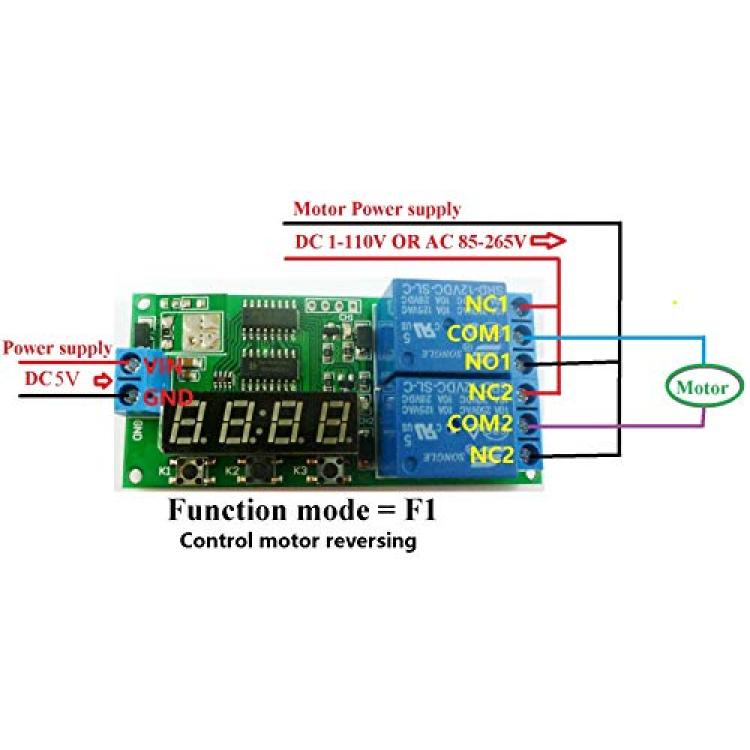

Function Mode Switch:



Keep pressing K1, press K2 to switch Function mode



F5 F6 F7 mode has only 1 delay time counter (T1), the other mode has two delay time counters (T1 T2); Keep pressing K1 ,press K3, switch T1 T2 counter .





Adjustment delay time :



Press K2, switching 4 bits of delay time counter(0000~9999S),the selected bit flash , press K3 to adjusted counter . Repeat to switch the rest bits .



After switching all bits ,then press K2 exit adjustable delay mode; or press K1, exit adjustable delay mode; or wait 10 seconds exit adjustment mode





Display way :



Keep pressing the K3 for 5 seconds , the digital display Turn off. Keep pressing K3 5 second more (or re-power), the digital display Turn on .



F5 F6 F7 F8 F9 mode, the delay counter is completed, digital display Turn off, enter a low-power mode, press K1, exit the low-power mode

DC 5V 2 channels 0-9999 seconds multi-function delay relay board

Nine kinds of functions can be switched

Products can set the delay time and Function.After setting up, power-up setting value is previous setting delay time and Function as we set last time  (power-down memory function);



Relay maximum load capacity: DC 1-110V/6A; AC 85-250V/5A
