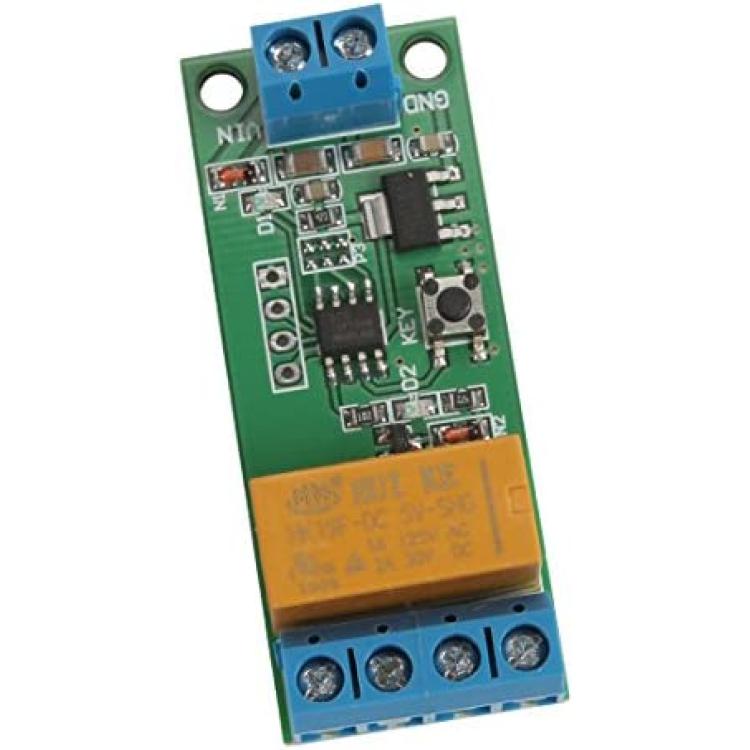

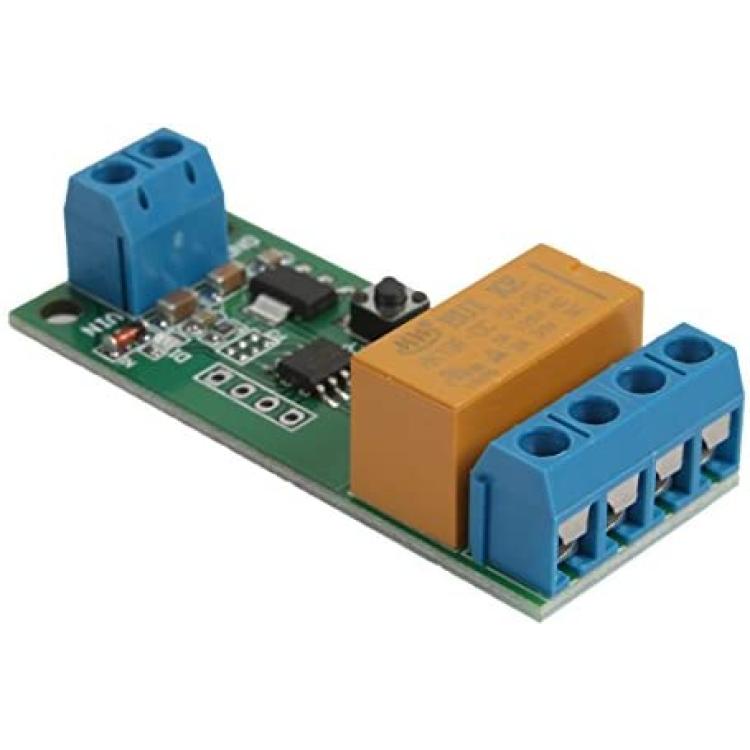

Vanki 5V 6V 9V DC Motor Reverse Polarity Cyclic Timer Switch Time Repeater Delay Relay 1pcs

How to use:
1.VIN connected to the positive of power supply , GND connected to the negative of power supply;
2.P+ connected to the positive of Motor power supply, P- connected to the negative of Motor power supply;
3.M + M- are connected to both ends of the motor
4.After power, D1 flashes 3 times, D2 off, M+ output positive, M- output negative, motor forward; after a time delay T1, D2 on, M+ output negative, M- output positive, motor reversal; after a time delay T2, D2 off, M+ output positive, M- output negativ, motor forward;and so on.
5.(1)T1: indicates motor Forward delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)
(2)T2: indicates motor Reverse delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds)
By "Time multiple selection" setting,The maximum delay of up to 40,000 seconds
Package:1pcs
