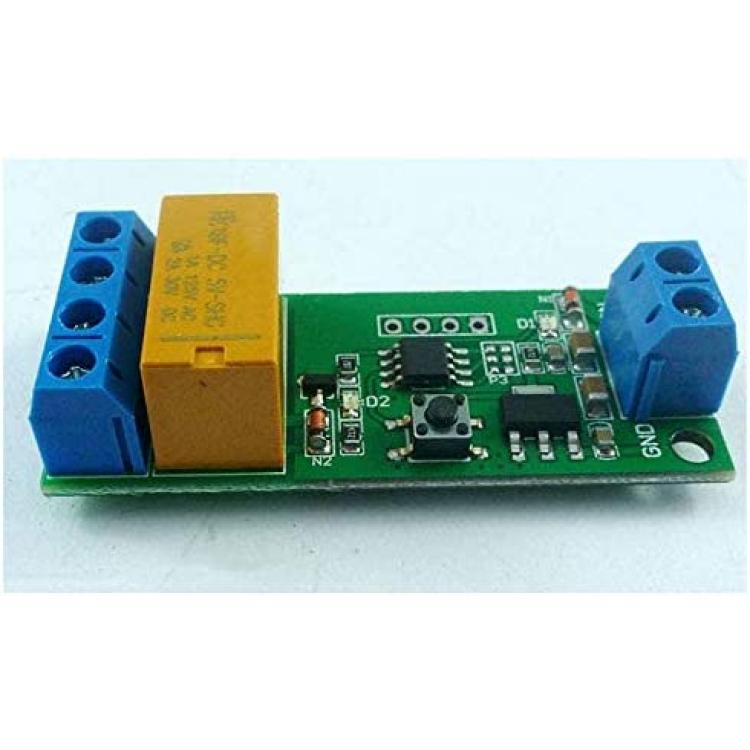

CE032 DC 5V 6V 9V 12V Motor Reversible Controller Time adjustable Delay Relay Switch 2A Drive current 5000s 0.1setp

Package inlcuded:1 PCS DC 5V-13V Motor Reversible Controller
Operating voltage: DC 5-12V(5V 6V 9V 12V)
Operating current: 5V,forward 4ma, reverse: 36ma;12V, Forward 6ma, reverse: 44ma;

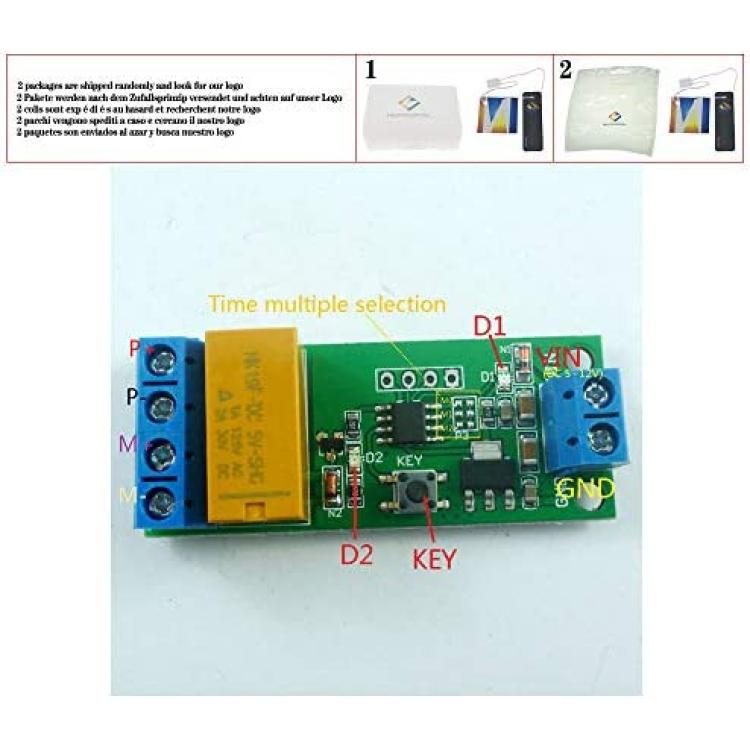

How to use:VIN connected to the positive of power supply , GND connected to the negative of power supply;
P+ connected to the positive of Motor power supply, P- connected to the negative of Motor power supply;
M + M- are connected to both ends of the motor After power, D1 flashes 3 times, D2 off, M+ output positive, M- output negative, motor forward; after a time delay T1, D2 on, M+ output negative, M- output positive, motor reversal; after a time delay T2, D2 off, M+ output positive, M- output negativ, motor forward;and so on.

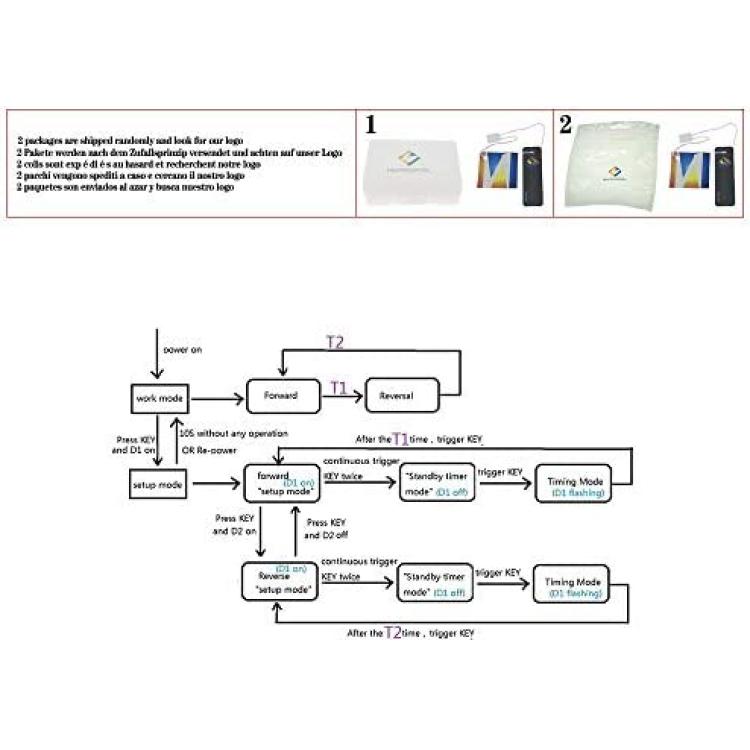

After power, D1 3 blinks, Enter the "work mode"?D2 on Reversal,D2 Off Forward?Press and hold the Key for 2 seconds,D1 on,enter the "setup mode"?D2 off, It's forward "setup mode"?In forward "setup mode", the continuous trigger KEY twice ,D1 off,entry "Standby timer mode"?In the "Standby timer mode" ,trigger KEY start timing(entry "Timing Mode")?D1 flashing said it is timing("Timing Mode")?Trigger KEY again to stop the clock(exit "Timing Mode")?D1 flashing time is forward time(T1)
Press and hold the Key for 2 seconds,D2 on,enter the Reverse "setup mode"
In Reverse "setup mode", the continuous trigger key twice ,D1 off,entry "Standby timer mode"
In the "Standby timer mode" ,trigger KEY start timing(entry "Timing Mode")
D1 flashing said it is timing("Timing Mode")
Trigger KEY again to stop the clock(exit "Timing Mode")
D1 flashing time is Reverse time(T2)
So far, forward time(T1) and reverse time(T2) is set up
Re-power in "work mode"
