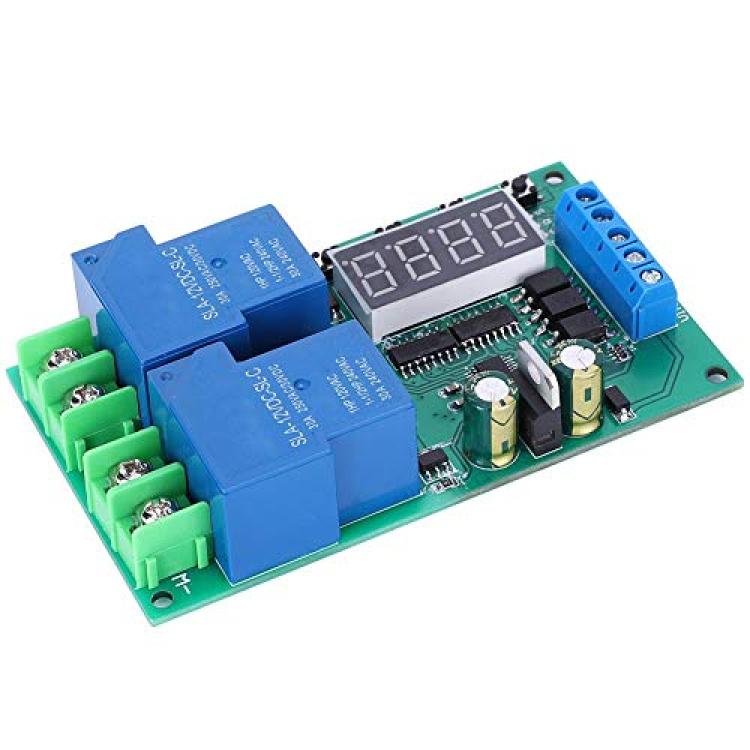

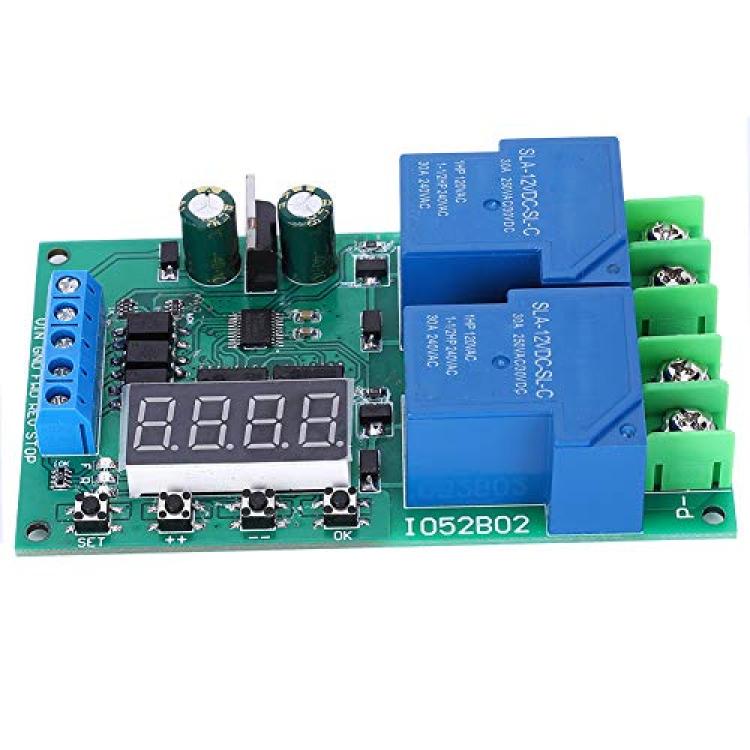

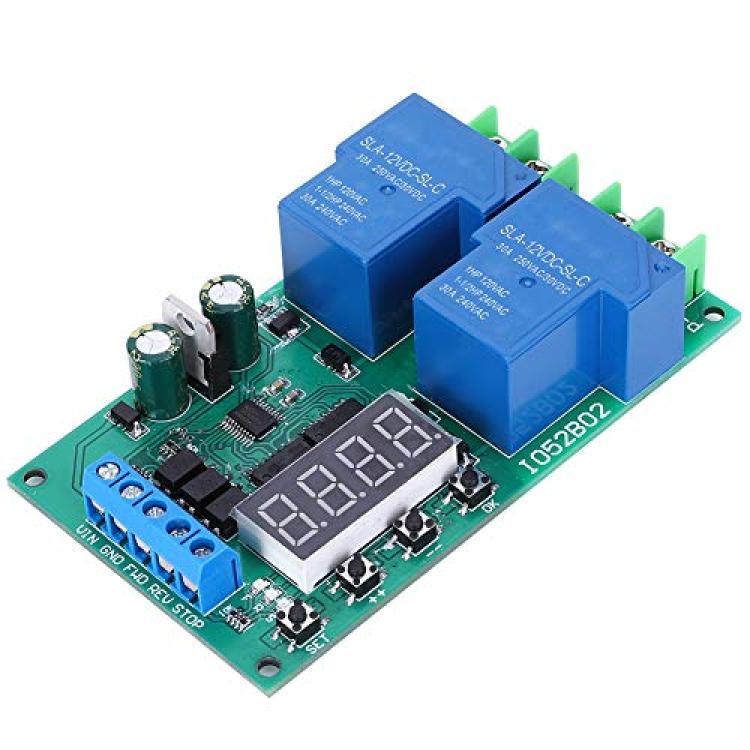

Forward/Reverse Controller Module, 30A12V Multifunction Motor Forward Reverse Controller Start-Stop Delay Limit Switch Relay
Availability: Pre-Order, Inquiry Price
About this product
*Motor Speed Controllers ---This is a 30A multi-function DC / AC motor forward and reverse controller.
*Motor Controller ---It has multiple control methods, high efficiency and stable performance.
*Dc Motor Speed Controller ---Through reasonable settings, many kinds of control functions can be derived.
*Forward/Reverse Controller Module ---Made of high quality metal components, anti-corrosion and high strength for maximum durability.
*Electrical Relays --- Low pulse control mode, more convenient to use.
Description
Specification:
Condition: 100% Brand New
Item Type: Motor Controller
Material: Metal
Color: As Pictures Shown
Working Voltage: DC 12V
Working Current: (Normal mode) standby current 22mA, working current 109mA;
(Energy saving mode) Standby current 7mA, working current 76mA.
There are three input control port: forward control, reverse control and stop control.
Two input trigger modes, low pulse trigger mode, low level trigger mode
Delay Time: 0.1-999.9s, 1-9999s, 1-9999 minutes.
Number of Cycles: No cycle, 2-99 cycles, Cycle forever.Three Indicator Lights: Forward indicator light, reverse indicator light, stop indicator light.
6 functional modes
Relay Load Current: 30A 250VAC / 30VDC
Size: Approx. 97.5 x 56 x 24mm / 3.8 x 2.2 x 0.9in

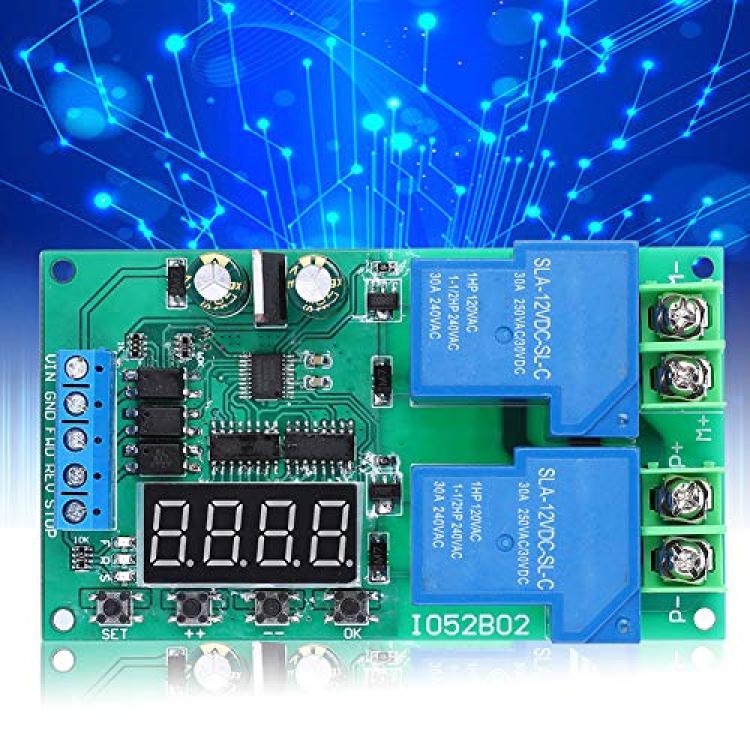

Port:
VIN: Positive power supply, DC 12V power supply
GND: Negative power supply
FWD: Forward rotation input control (some function modes are invalid)
REV: Reverse input control (some function modes are invalid)
STOP: Stop input control (some function modes are invalid)
M +: Motor positive
M-: Motor negative
P +: Positive pole of motor power supply
P-: Negative pole of motor power supply
Package List:
1 x Forward/Reverse Controller Module
