Davitu Motor Controller - PLC FX1N-14MR relay module delay module

6 point 1A relay output, comes all the way AD, all the way DA accuracy are: 0-4095
Wide supply voltage 10-28VDC
Dimensions: length X width X high:66X73X20Mm

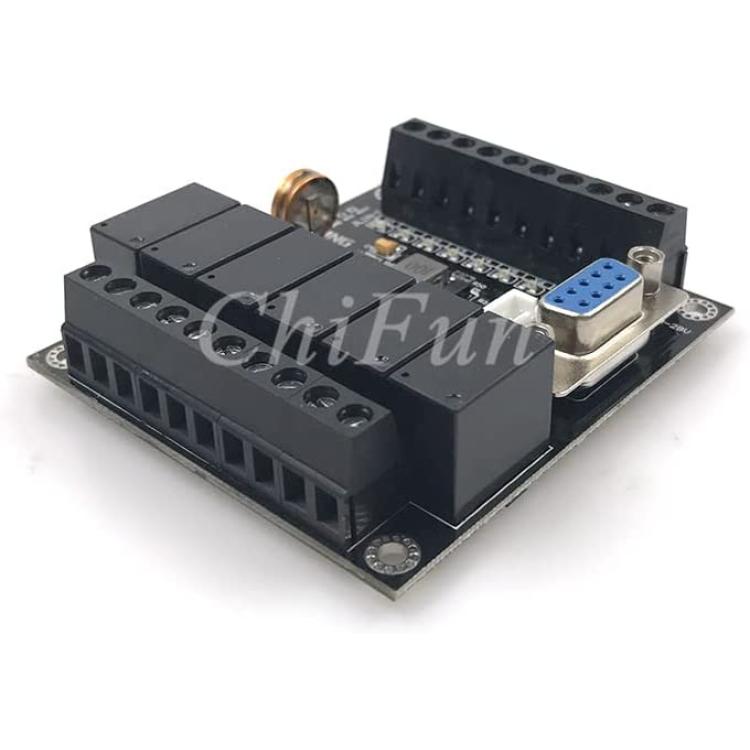

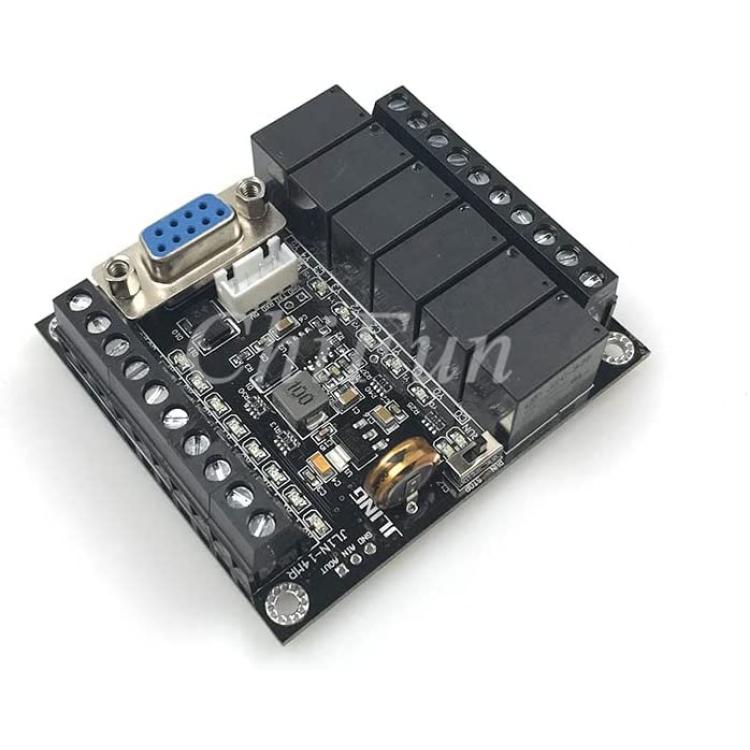

This board is PLCboard, the direct use of GX programming software ladder diagram, written directly to the PLC, you can monitor online, even cheaper than the microcontroller board.
 GX-Developer8.52 Chinese programming software download address:Pan.baidu.com/s/1nty5XXn
Advantages of using PLC boards:
2 reusable.
3 high stability.
4 easy to expand.
1.Integrated, systematic anti-interference processing, the power supply circuit through the design of multiple anti-jamming, without fear of all kinds of adverse electromagnetic interference working environment.
TwoUsing powerful 32Bit speed ARM nucleus CPU  programming software FXGPWINor GX Developer programming
Can downloaduploaddebuggingMonitor
(No software conversion, and regular PLC Download the same way)
C Application scope:Be flexible to use in the automatic control occasions of various industries, such as metallurgy, chemical industry, industrial control equipment, plastics, textile, food, building materials, packaging, printing, carpentry, central air conditioning, environmental protection equipment and single process control equipment and other industries in the production of machinery, industrial production line, all kinds of machine tools in.
Six This control board is 10VDC-28VDC Uniform mayPower supply, select type for FX1N. Input: X0-X7 a total of 8 points, output: Y0-Y5 a total of 6 points. Maximum memory capacity: 2000 steps Board has three spray paint, to better adapt to the complex application environment)
Module function:
This module is programmable control, can achieve thousands of functions, stable and reliable working performance, built-in watchdog timer circuit, to ensure that the module for a long time to run!!!
Some of the common features are shown as follows:
Turn on the
