Davitu Motor Controller - FX1N-20MT Programmable Controller PLC Module Regulator Board Industrial Supplies DC24V Multiple Anti‑interference Design

FX1N?20MT Programmable Controller PLC Module Regulator Board Industrial Supplies DC24V
Features:
1. Input high?speed pulse C235, C251, the function is compatible with FX1N series. Y0, Y1 can send 10K pulse.
2. The power circuit has undergone multiple anti?interference design, without fear of various harsh electromagnetic interference working environments
3. Can be flexibly used in various industrial automatic control situations, such as metallurgy, chemical industry, printing, central air conditioning, environmental protection equipment.
4. Can also be applied to industrialized control equipment for production machinery, industrial assembly lines, and various machine tools in industries such as single process control devices.
5. The working voltage is DC24V, output frequency is 10 (kHz), input points are 12 points, Output Points are 8 points.
Specifications:
Item Type: Programmable Controller PLC
Material: Plastic
Model: FX1N-20MT
Working Voltage: DC24 (V)
Output Frequency: 10 (kHz)
Input Points: 12 points
Output Points: 8 points
Analog Input and Output: 1AD
Memory Capacity: 2000 steps
The Setting Method Is As Follows: After clicking the + sign in front of the parameter in the program data list, the PLC parameter will appear, and then double-click the PLC parameter and the parameter setting interface will appear. In the parameter setting interface, set the memory capacity from 8000 to 2000.
The programming line USB to TTL and USB to 232 driver are the same
After installing the driver, a serial port will appear. Please select a baud rate of 9600 when downloading.

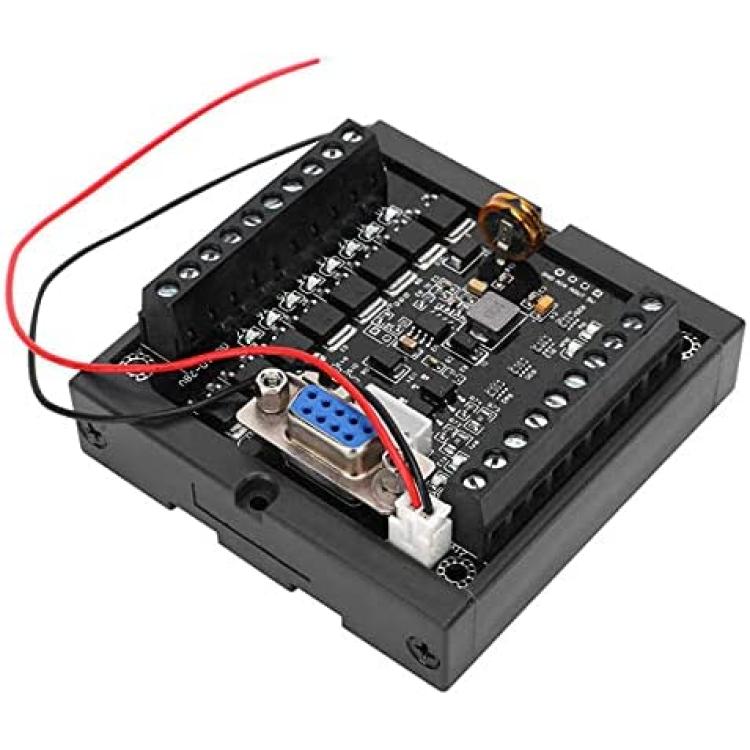

This PLC Series Has 2 Independent 232 Serial Ports, One Is a 9pin port with 232 level (2: TXD 3: RXD 5: GND)
The Other Is A TTL Level 4pin Port (1: GXD 2: TXD 3: RXD 4: 5V), both of which are programmable and connected to the touch screen. When programming, the 9pin port uses the USB-232 cab
