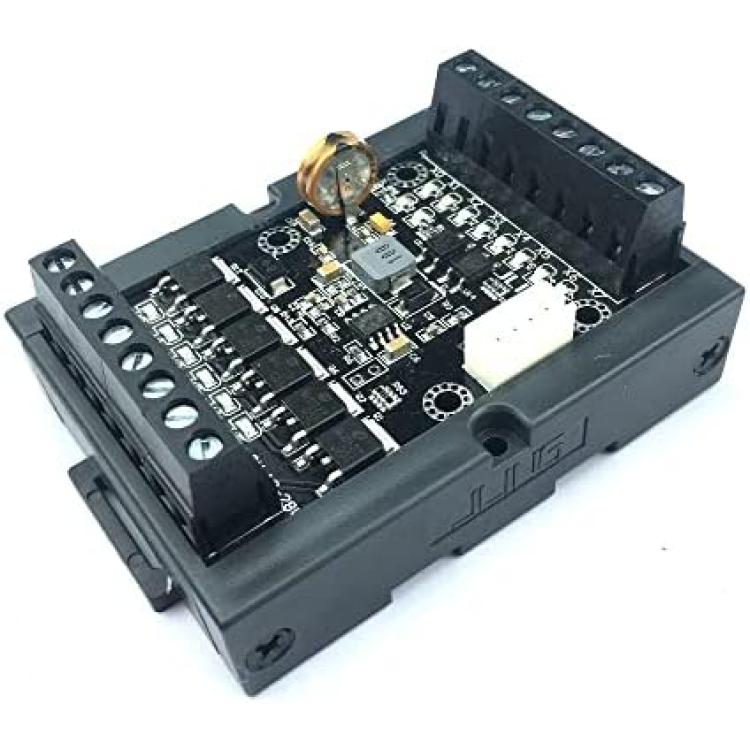

Davitu Motor Controller - PLC industrial control board Simple FX1N-14MT delay module

8-point input, 6-point transistor open collector output, wide supply voltage 10-28VDC
Dimensions: length X width X height: 46X73X20mm. Mounting hole size: 38*22.5 Secure with 4 M3 screws.
Advantages of using a PLC board:
2. Reusable
3. High stability
4. Easy to expand
1. Comprehensive, systematic anti-interference treatment, power supply circuit through multiple anti-interference design, no fear of all kinds of harsh electromagnetic interference working environment.
2. Use powerful 32-bit high-speed ARM core CPU. can be programmed with FXGPWIN or GX Developer
Can be downloaded\Debug\Monitor
(No software conversion is required, the same download method as regular PLC)
 Scope of Applications: It can be flexibly used in various industrial automatic control applications, such as metallurgy, chemical, plastic, textile, food, packaging, printing, building materials, woodworking, central air conditioning, environmental protection equipment and single process control equipment. Mechanical, industrial assembly lines, industrial control equipment for various machine tools.

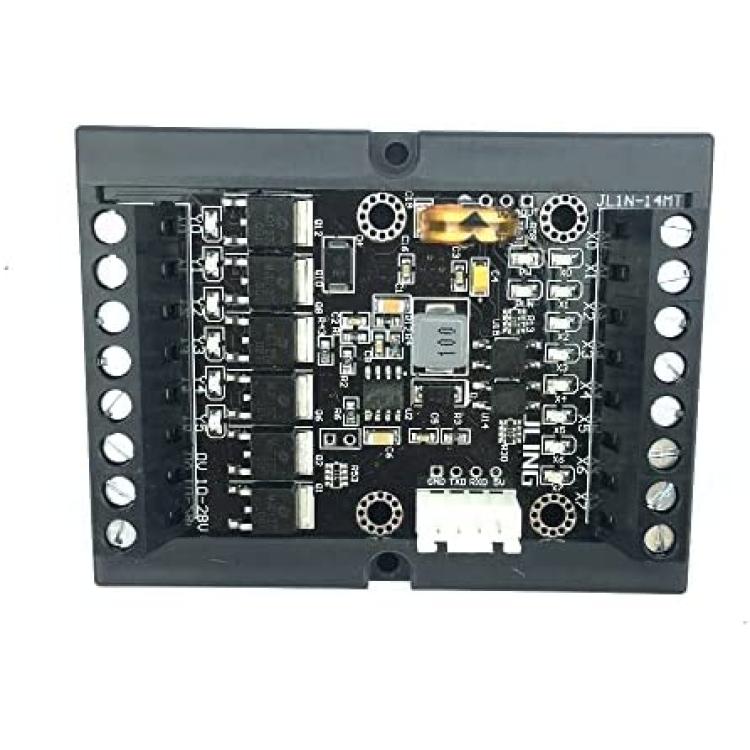

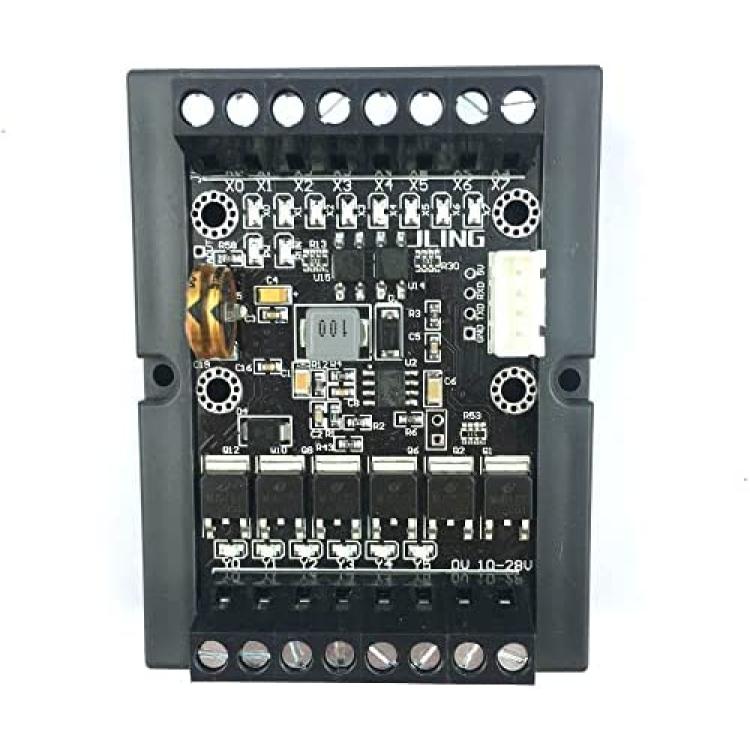

   6. This industrial control board can supply power to 10VDC-24VDC, and the selection type is  FX1N. Input: X0-X7 a total of 8 points, output: Y0-Y5 a total of 6 points. Maximum memory capacity: 8000 steps (the board has been sprayed with three anti-paints to better adapt to complex application environments)
 Module function:
This module is programmable control, can realize thousands of functions, stable and reliable working performance, built-in watchdog timing circuit, effectively guarantee the module to run for a long time! ! ! .
Some of the common features are shown below:
1. Turn on the power, the relay 1 is closed after N seconds of closing. then the relay 2 is closed after N seconds of closing.
2. Turn on the power, the relay 1 is turned off after N seconds of closing. then the relay 2
