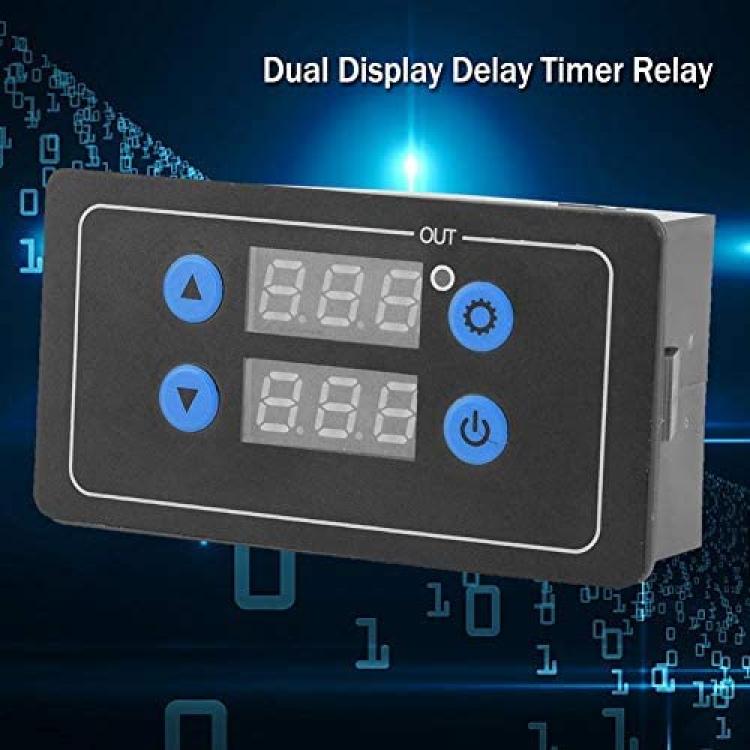

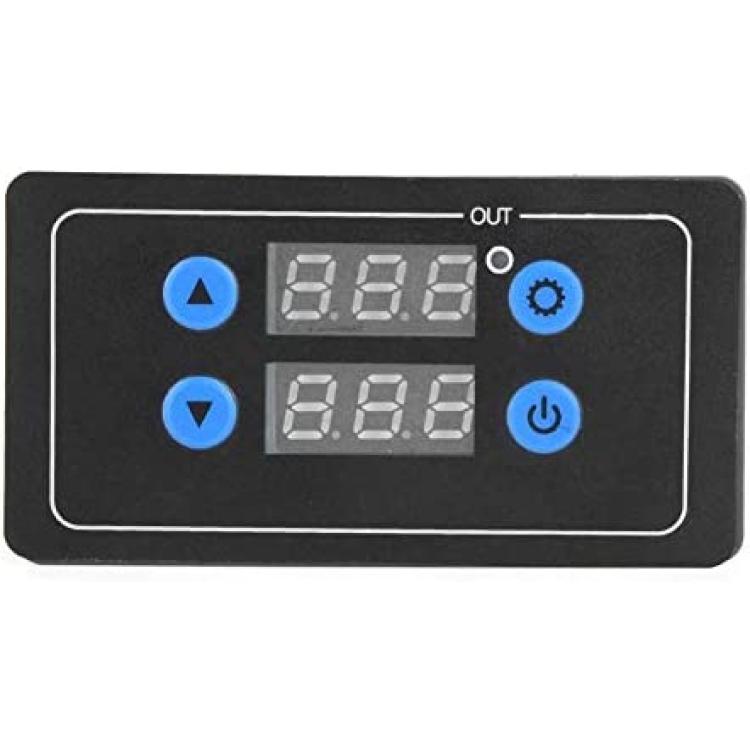

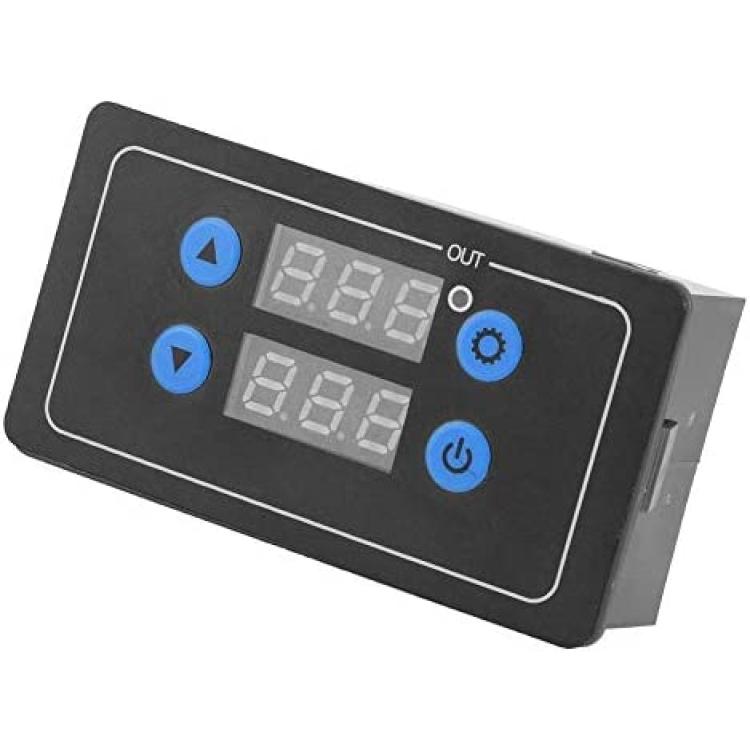

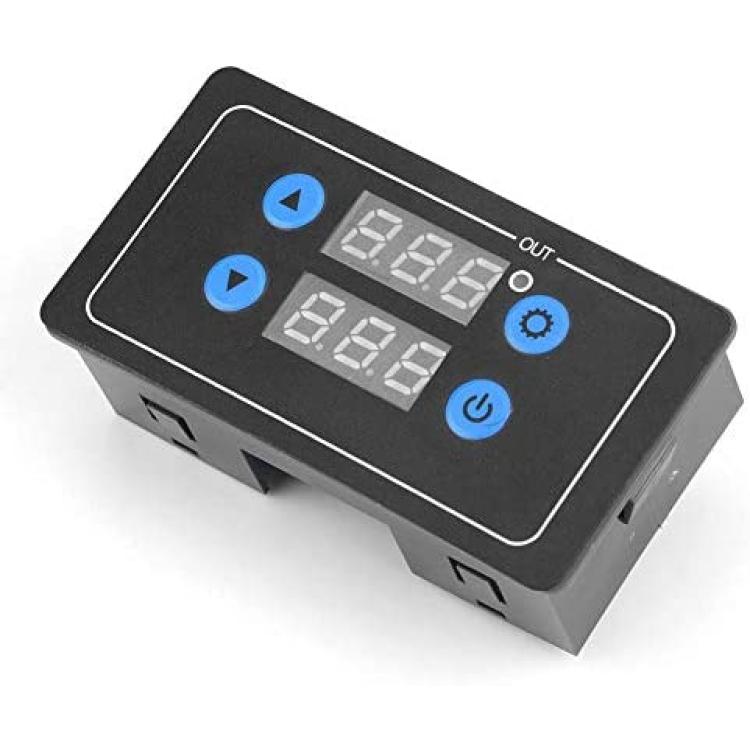

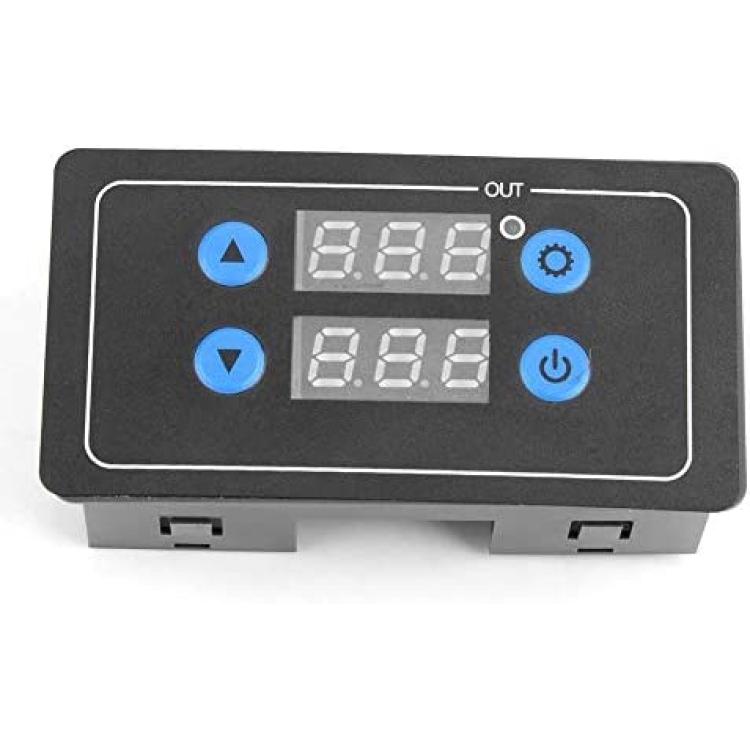

Timer Relay,Adjustable Cycle Delay Timer Relay Module Timing Delay Board with Digital Display(DC 12V)

Function List:

P1-1: After T1 delay time, the relay pulls in.
P1-2: After T1 delay time, the relay releases.
P1-3: After T1 delay time, the relay pulls in. After T2 delay time, the relay releases.
P1-4: After T1 delay time, the relay releases. After T2 delay time, the relay pulls in.
P1-5: After T1 delay time, the relay pulls in. After T2 delay time, the relay releases and repeat the cycle.
P1-6: After T1 delay time, the relay releases. After T2 delay time, the relay pulls in and repeat the cycle.

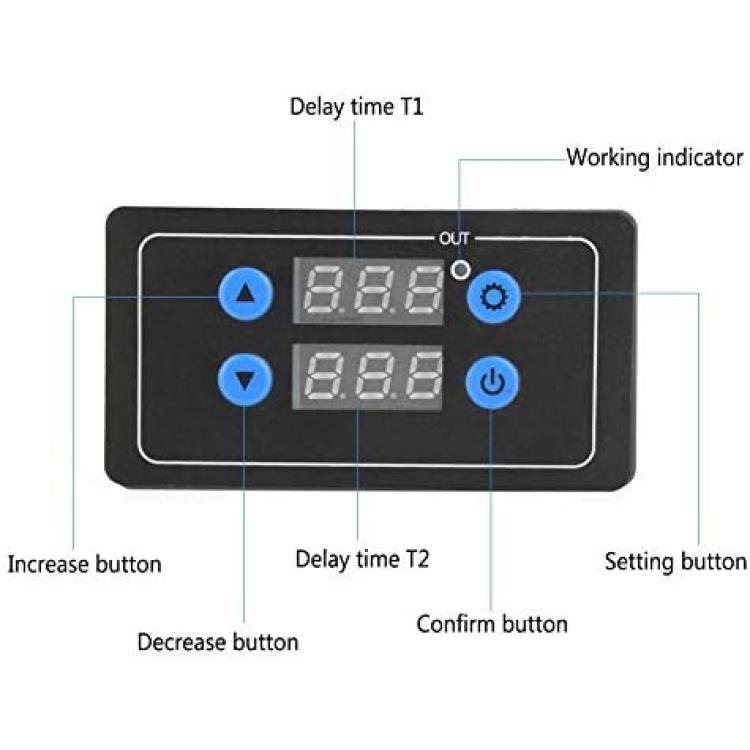

Button setting description:

Setting button: long press 2 seconds to enter the function settings; short press to switch the parameter settings

Increase button: increase time

Decrease button: decrease time

Confirm button: start/stop



Timing range description:

Timing range varies according the position of decimal point:

XX.X - timing range: 0.1 seconds ~ 99.9 seconds

XXX - timing range: 1 second ~ 999 seconds

XXX. - timing range: 1 minute ~ 999 minutes.

XX.X. - timing range: 1 hour ~ 999 hours

Package list:

1 * Cycle Timer Relay
