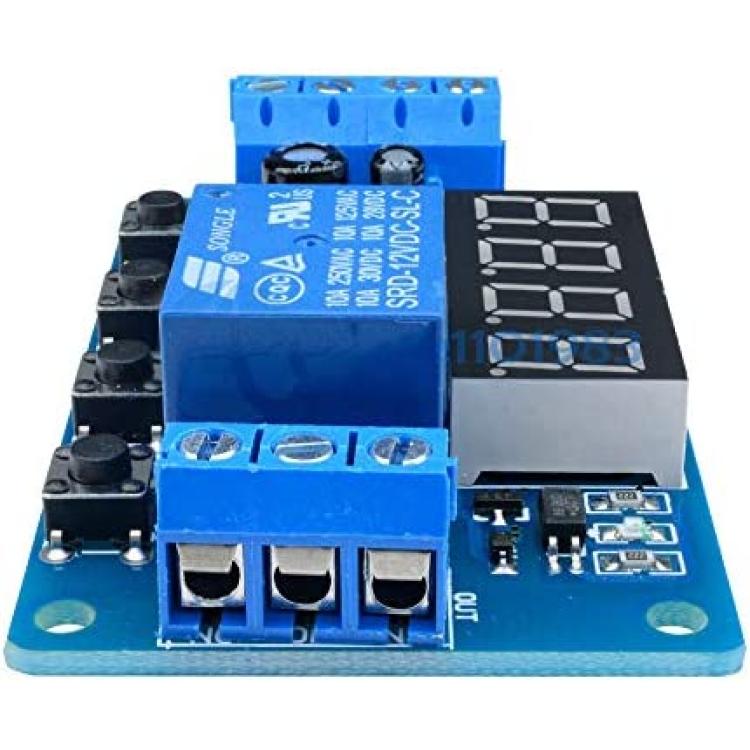

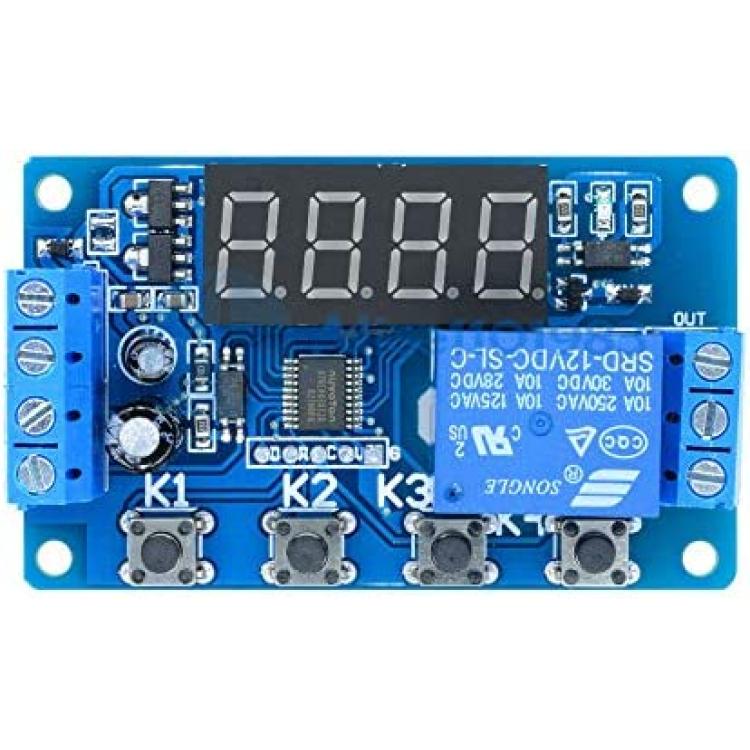

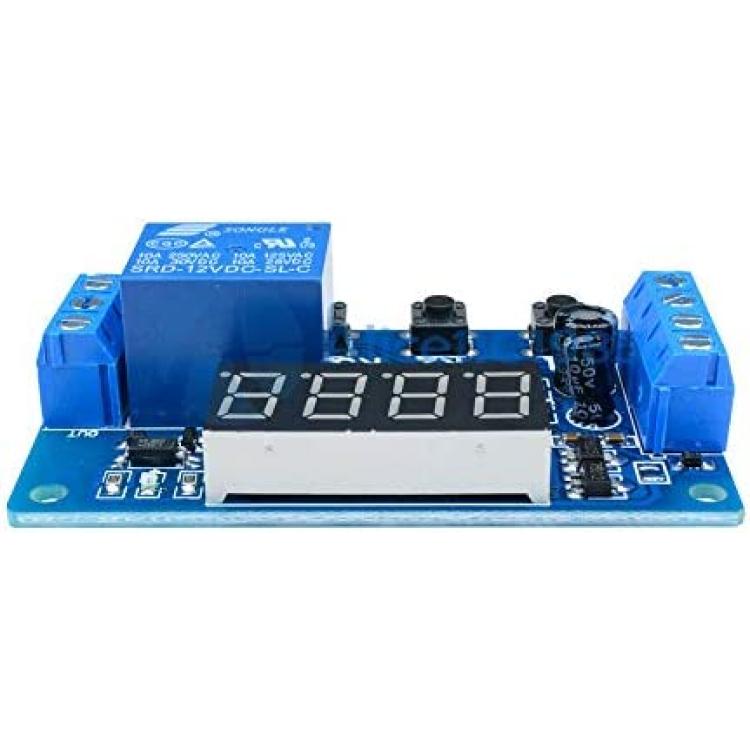

Gumps grocery Digital 12V LED Display Timer Automation Delay Relay Programmable Module Switch
Description
Description:
1: Product model: YYC-2S 24 common functions, to meet more application needs; can control solenoid valves, pumps, motors, lights, etc.
2: Input voltage: DC 5/12/24V optional
3: Output power: can control DC or AC load within 10A
4: Time range: 0.01 seconds to 999 minutes adjustable at any time

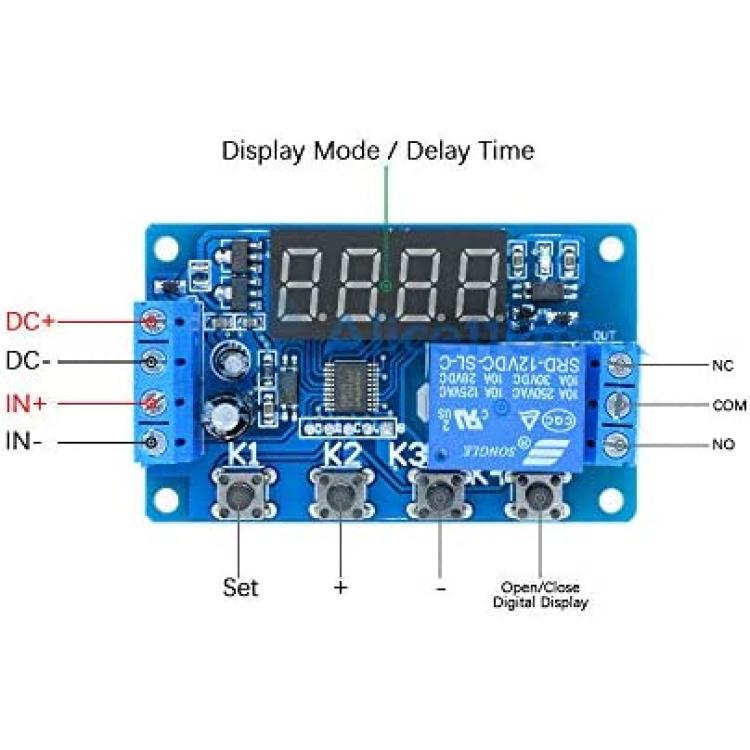

5: Description of the wiring port:
(1) DC+: input DC power supply positive
(2) DC-: input DC power supply negative
(3)IN+: positive input terminal
(4) IN-: signal input terminal
(5) NO: relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM
(6) COM: relay common interface
(7) NC: The relay normally closes the interface, and the relay is shorted to COM before the suction is closed.
