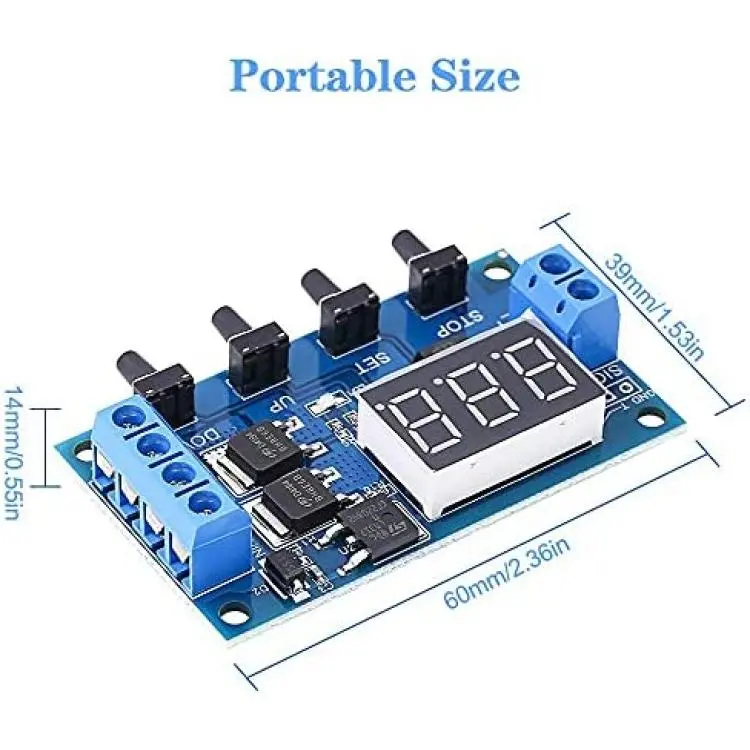

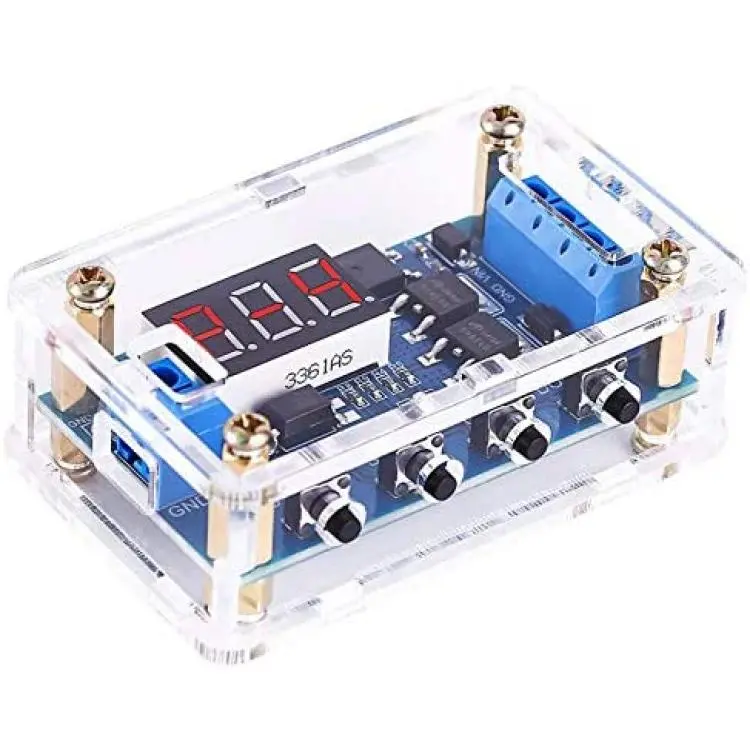

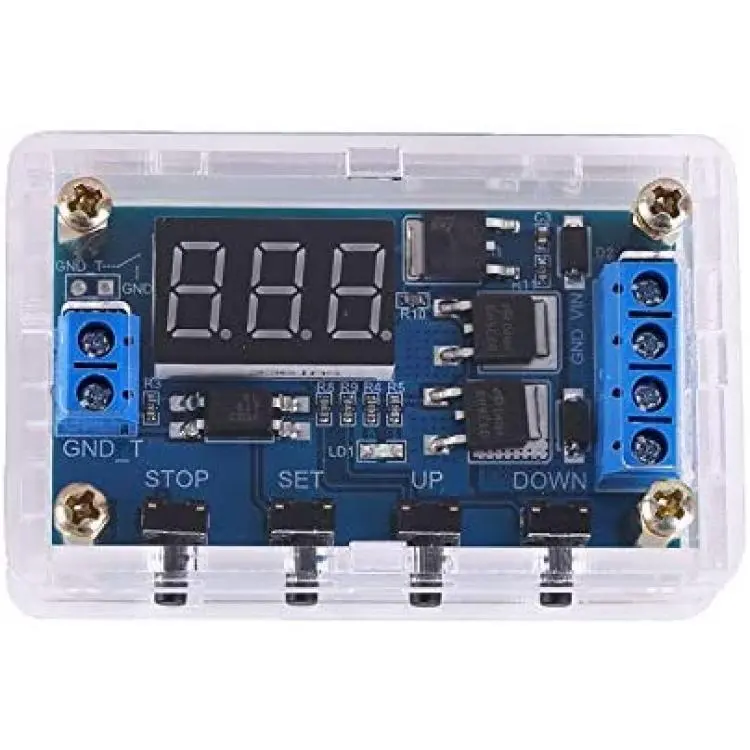

Timer Delay Relay DC 5V 12V 24V On Off Timer Module Trigger Cycle Dual MOS Delay Control Board with Digital Tube Display and Protective Shell for Smart Home, Automatic Control

Features:

1>.Digital tube display

2>.Support high level trigger

3>.Emergency stop function

4>.Sleep mode,Wake up with any button

5>.Automatically save parameters

6>.Dual MOS control support more than 15A 400W

7>.Support reverse connection protection

8>.Continuously adjustable from 0.1 seconds to 999 minutes

9>.Optocoupler isolation to enhance anti-interference ability

Additional Features:

1>.Auto sleep function: Long press button 'STOP' in the normal running interface to turn on or off auto sleep function.

1.1>C-P:Turn ON auto sleep function.Screen will automatically turns off if there is no operation within five minutes.It can be wake up by any buttons.

1.2>.O-d:Turn OFF auto sleep function.

2>.Enabled/Disabled output by short press button STOP:

2.1>.ON:Enabled output during delay time OP.

2.2>.OFF:Disabled output during delay time OP.Module can not output any signal at this mode.

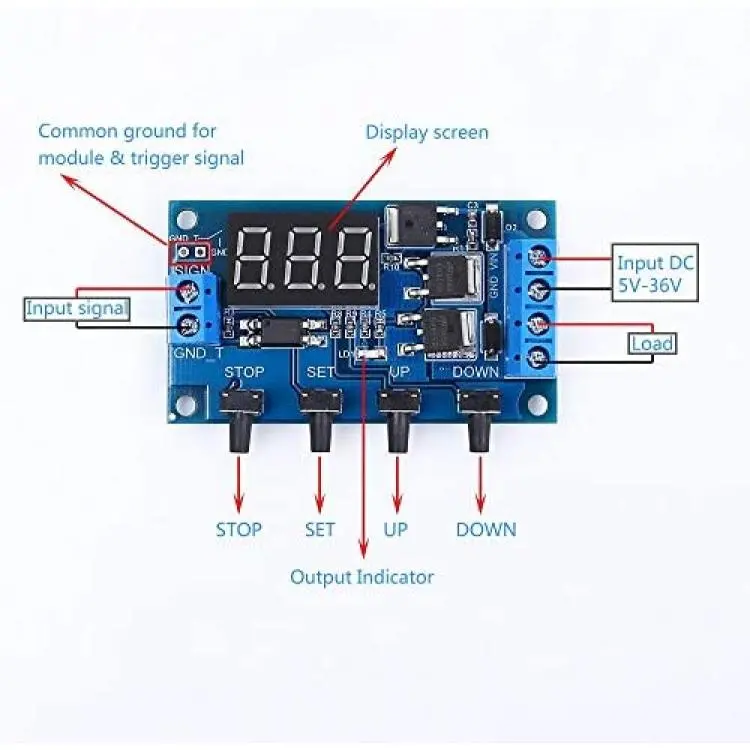

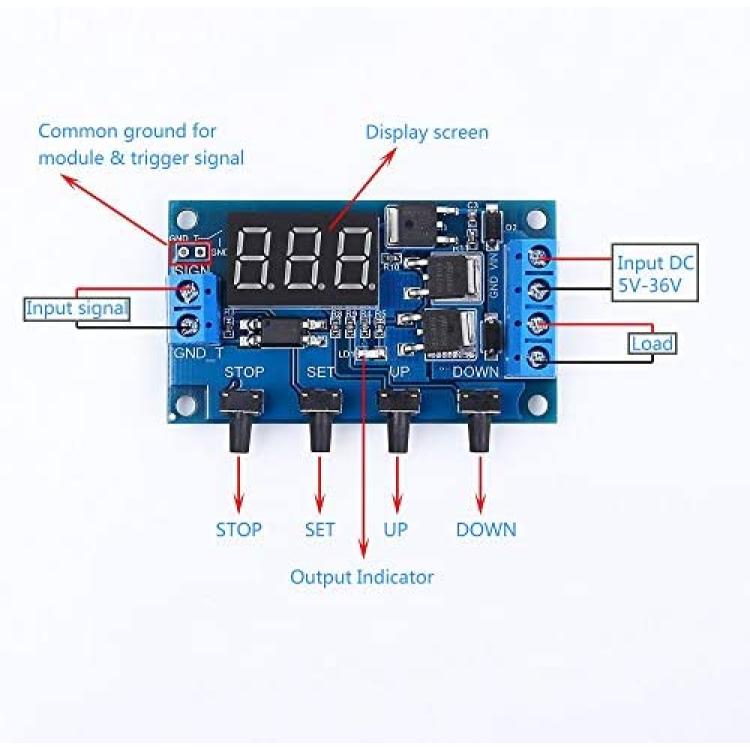

3>.Common ground:User can connect GND of trigger signal to GND of module by short pads GND-T and GND.But it is not recommended, which will reduce the anti-interference ability of the module.

Note:

1>.Module can output voltage same to input voltage.

2>.GND and GND- can not connect together otherwise module can not work normally.

3>.Please read use manual and description before use.
