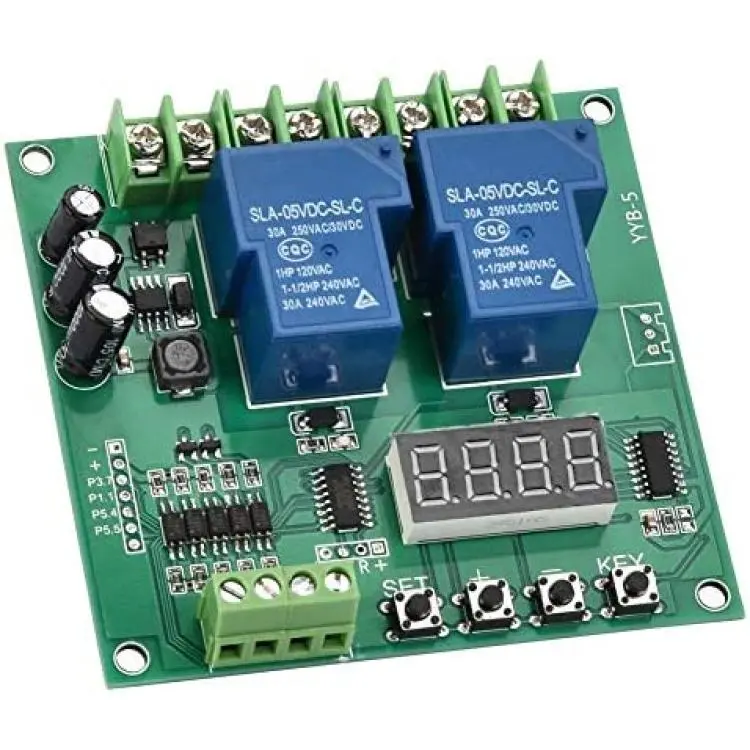

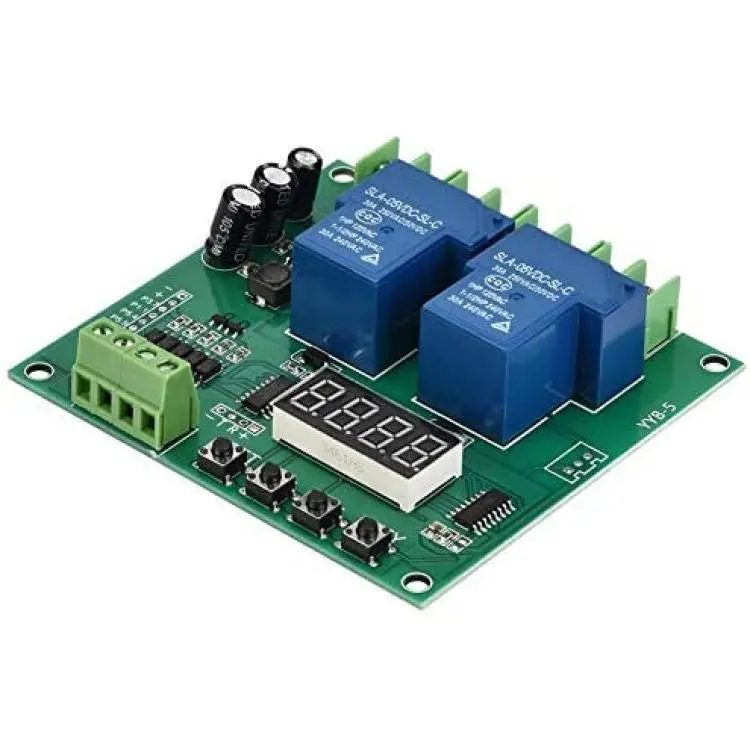

YYB-5 12v 24v Motor Forward/Reverse Control Board Two Relay Delay Timing Cycle Module Control Solenoid Valve Pumps
About this product

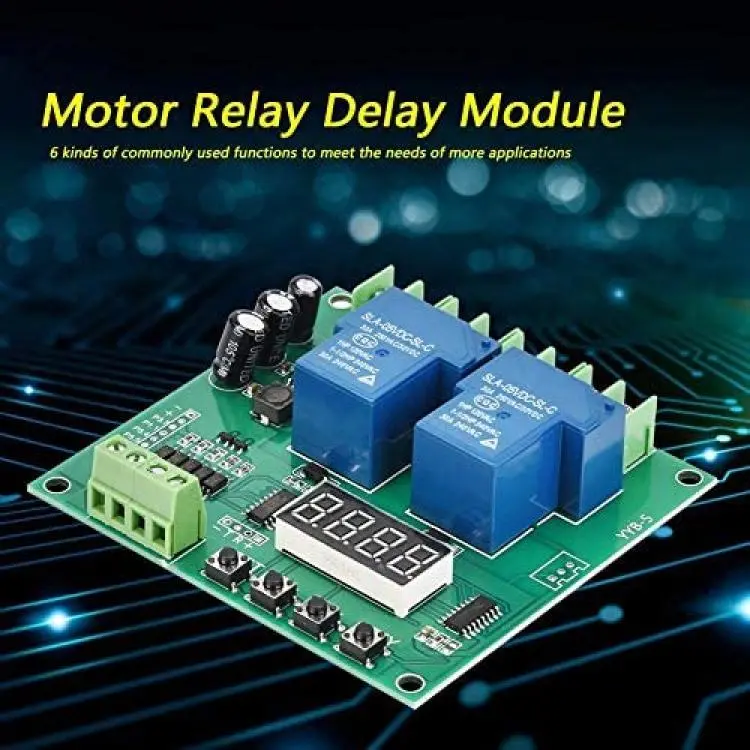

*6 kinds of commonly used functions to meet the needs of more applications; It can control 2-way solenoid valve, pumps, motors, lights and other running freely Output power: it can control within 30A DC or AC load Time range: 0.1 seconds to 999 minutes any time adjustable
*Wiring port Description: 1. AC/DC : Input 7V~27V 3. IN1: Signal input 1 (negative trigger) 4. IN2: Signal input terminal 2 (negative trigger) 2. IN3: Signal input 3 (negative trigger) 5. NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted
*6. COM: relay common interface 7. NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension
*Decimal time unit Description: XX.X decimal point in the ten, timing range: 0.1 seconds to 99.9 seconds XXX no decimal point, timing range: 1 second to 999 seconds XXX. Decimal points in a single, timing range: 1 minute to 999 minutes
*Specification: Model:YYB-5 Input voltage: DC/ AC7V~27V Time range: 0.1 seconds to 999 minutes Weight: Approx.103g/3.6oz
Description
See the preview for details on the Function list.
Key Settings Description:
Power display "----" that access to standby;
Press the first time K1, the screen shows: P-1: K2 and K3 adjustment mode
Press the second time K1, the screen shows: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)
Press the third time K1, the screen shows: B001: K2 and K3 adjust the second time B, K4 adjust the decimal point (time unit)
Press the fourth time K1, the screen shows: C001: K2 and K3 adjust the third time C, K4 adjust the decimal point (time unit)
Press the fifth K1, display "----" that entered the standby state;
For example; need to set the mode: P - 2; time: A010 B005 C006:
Indicating the second mode of operation; after the signal 1; relay 1 after 10 seconds to start off; relay 2 to give the signal after delay 5 seconds after the start 1 second automatically shut down
Package list:
1 x Motor Control Board
