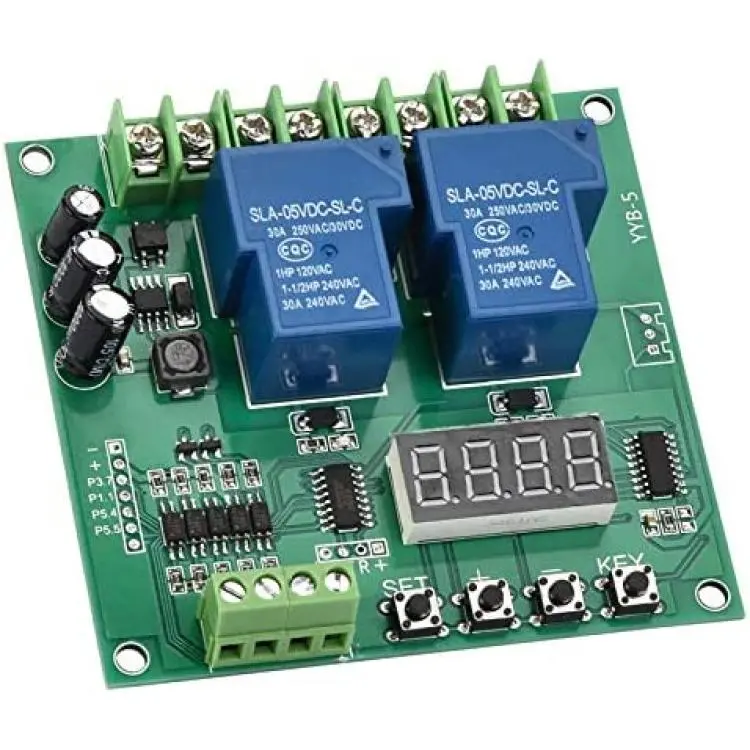

Jeanoko YYB-5 Motor Control Board 12v 24v Motor Relay Delay Module 0.1s-999m Time Range for Controlling 2-Way Solenoid Valve Running Freely

Spec:

Model:YYB-5
Input voltage: DC/ AC7V~27V

Time range: 0.1 seconds to 999 minutes

Weight: Approx.103g/3.6oz

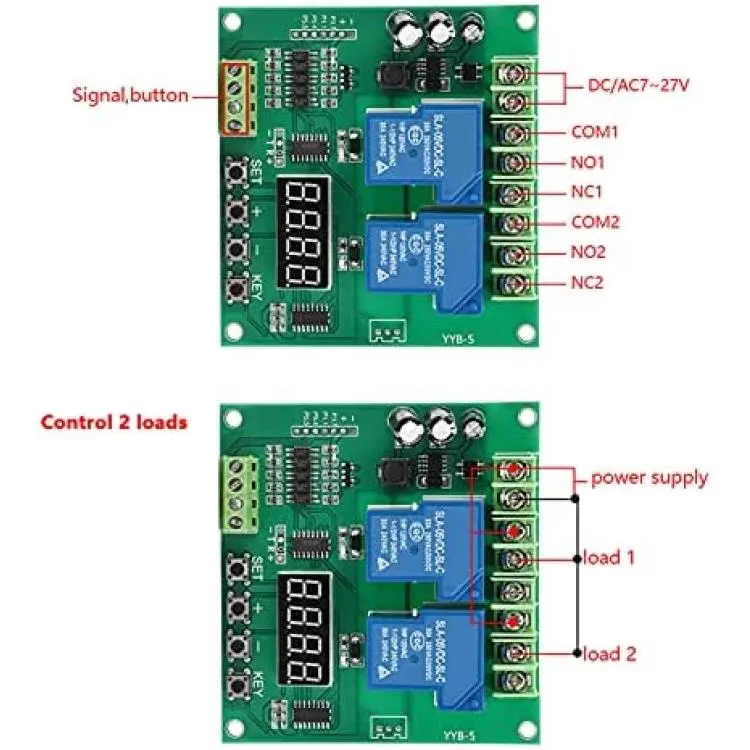

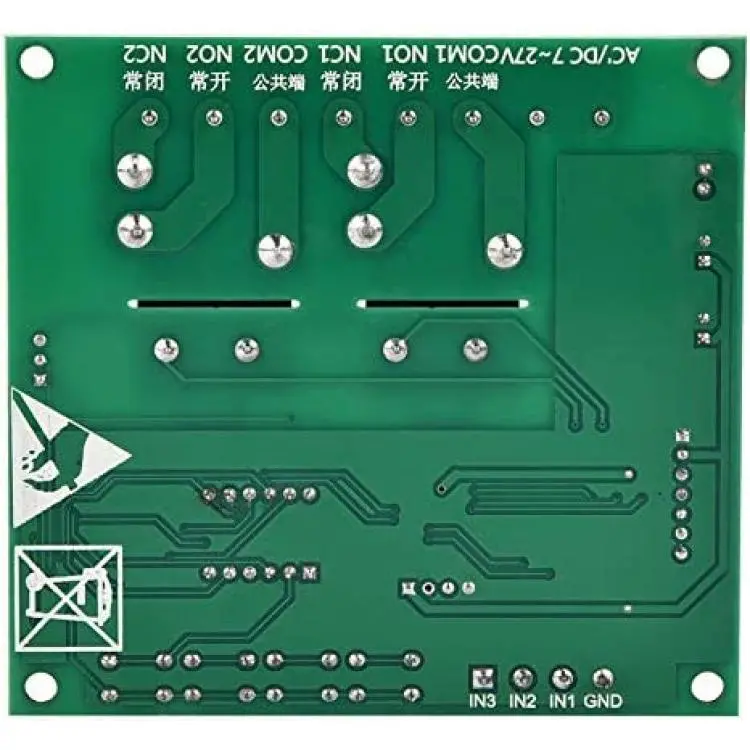

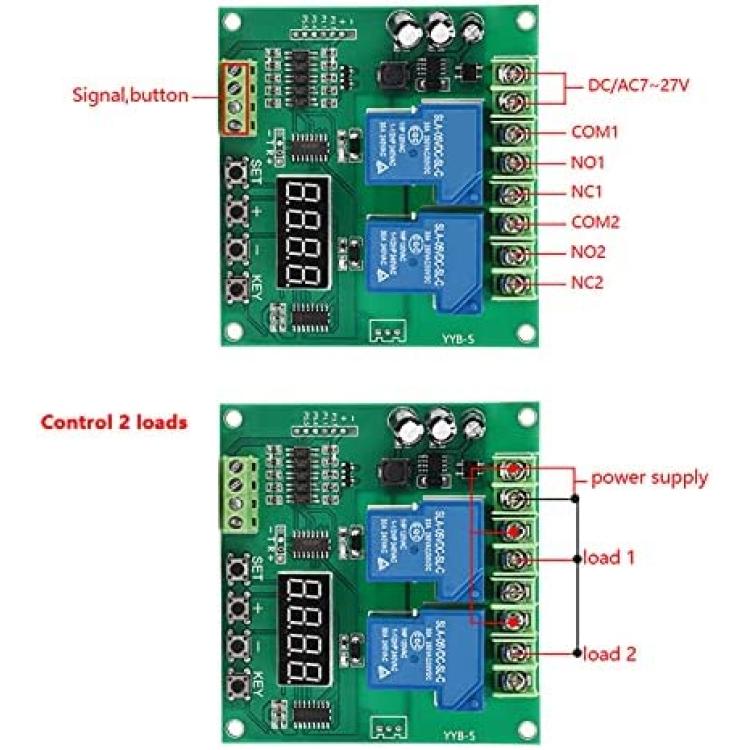

Wiring port Description:

1. AC/DC : Input 7V~27V

3. IN1: Signal input 1 (negative trigger)

4. IN2: Signal input terminal 2 (negative trigger)

2. IN3: Signal input 3 (negative trigger)

5. NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted

6. COM: relay common interface

7. NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension



Function list:

P - 1: to signal 1, relay 1 pulls to A time automatically stops; to signal 2, relay 2 pulls to B time automatically stops; signal 3 is emergency stop reset signal

P - 2: signal 1, relay 1 is pulled to A time automatically stop; relay 2 from the signal to start delay B time after the suction to C time automatically stop (this function time unit needs to be consistent)

P - 3: After power on, relay 1 pulls up to A time release, waiting for C time, relay 2 pulls to B time release, waits for C time; relay 1,2 turns endless operation endless cycle

(If the control motor is reversible can be understood as: the motor is running a period of time; stop for some time
