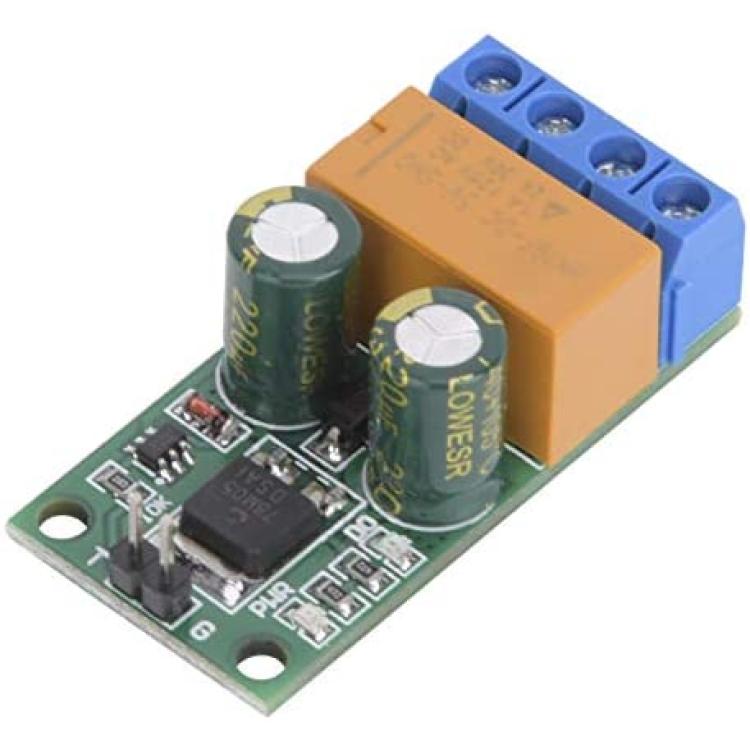

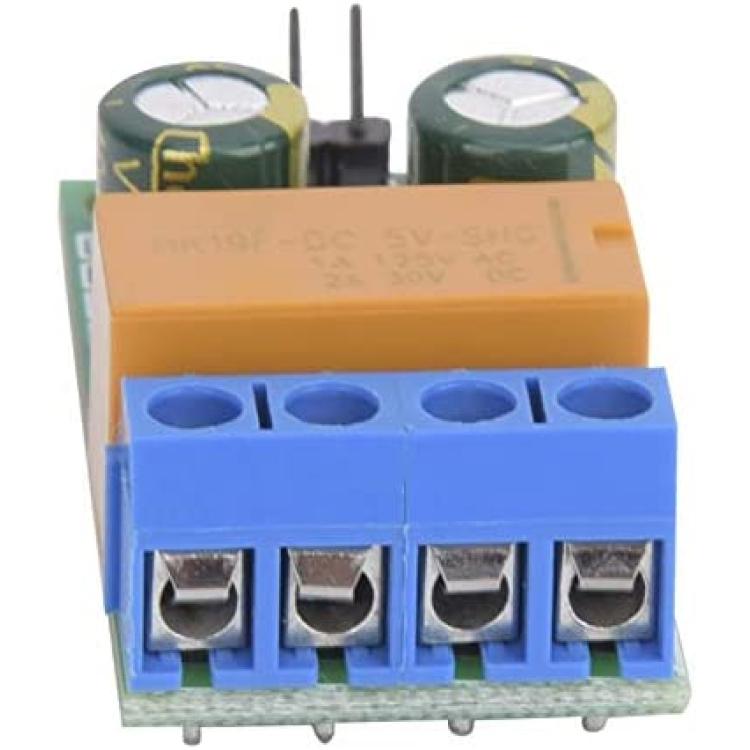

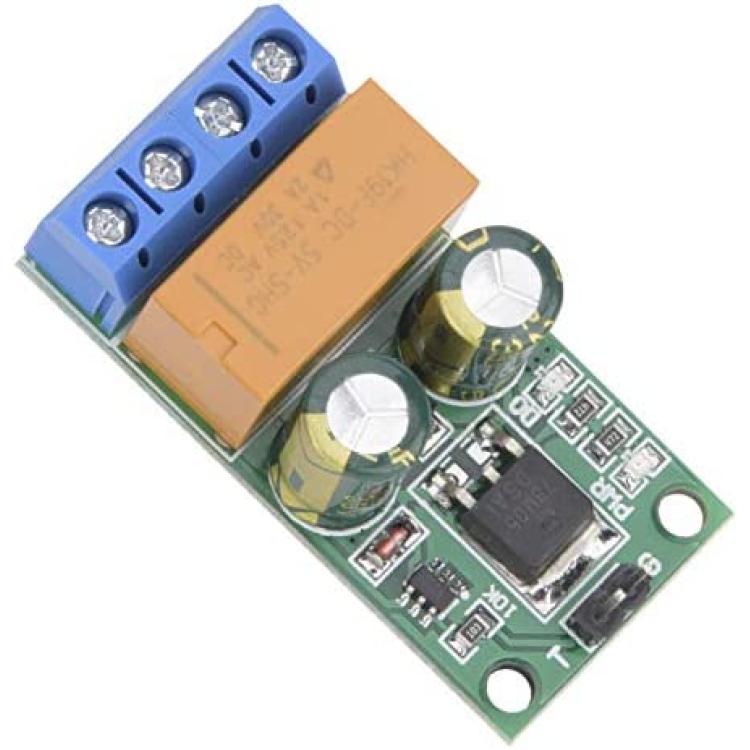

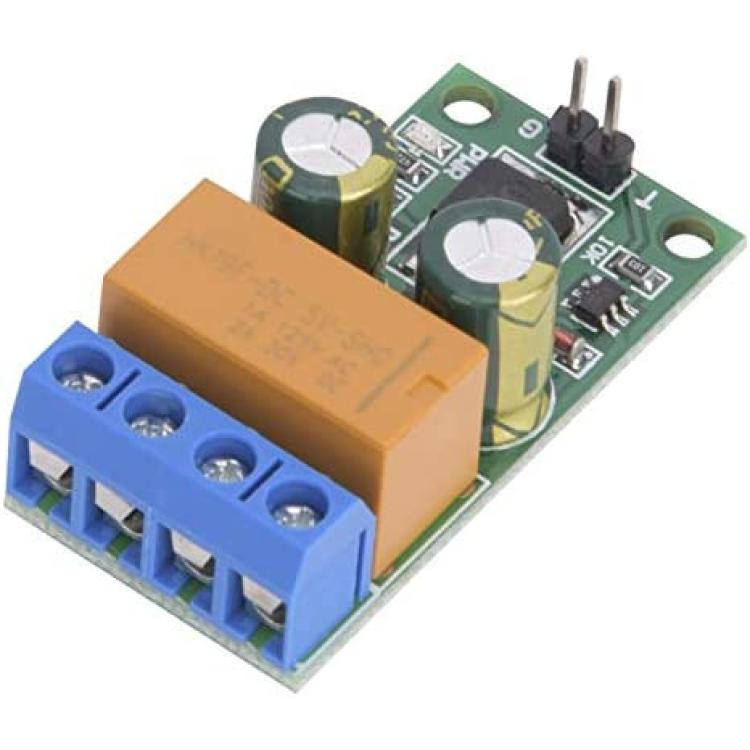

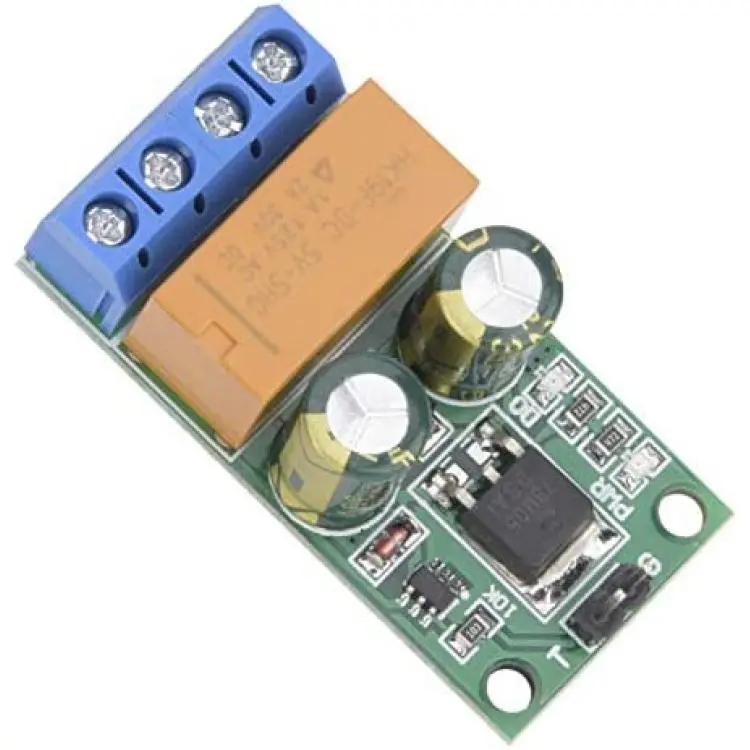

DR55B01 DC Motor forward/Reverse Controller Board, Self Locking Reverse Polarity Relay Motor Control Module (DC 6-24V)
About this product
*【Principle of Operation】 The CW/CCW controller module is a self-locking (bistable) reverse polarity relay. Trigger once, output reverse polarity (and hold), trigger again, output = input (and hold).
*【Forward/Reverse Control】 The CW CCW reversible switch can be controlled in forward and reverse directions (start and stop are controlled by power-on and power-off). Module working current: 2MA forward, 35-40MA reverse.
*【Way to Control】 The DC 5V-36V motor speed controller is made of high-quality electronic components, with stable and reliable performance, low pulse control mode, and more convenient use.
*【Optional Input Voltage】 The dc motor controller has two optional input voltages: DC 5V (5V version), DC 6-24V (12V version).
*【Indicator Light】 DC motor speed control with power indicator and reverse polarity indicator. The size is about 43 x 21 x 16 mm / 1.7 x 0.8 x 0.6 inches.
Description
Specification:
Item Type: CW/CCW Controller Module
Optional Input voltage: DC 5V (5V version), DC 6-24V (12V version)
Module working current: forward 2MA, reverse 35-40MA
Load voltage: equal to output voltage
Load current: maximum. 2A (motor <= 1A)
With power indicator and reverse polarity indicator
Control mode: low pulse control
Size: Approx. 43 x 21 x 16mm / 1.7 x 0.8 x 0.6in
Weight: 13.5 g / 0.5 oz(approx.)

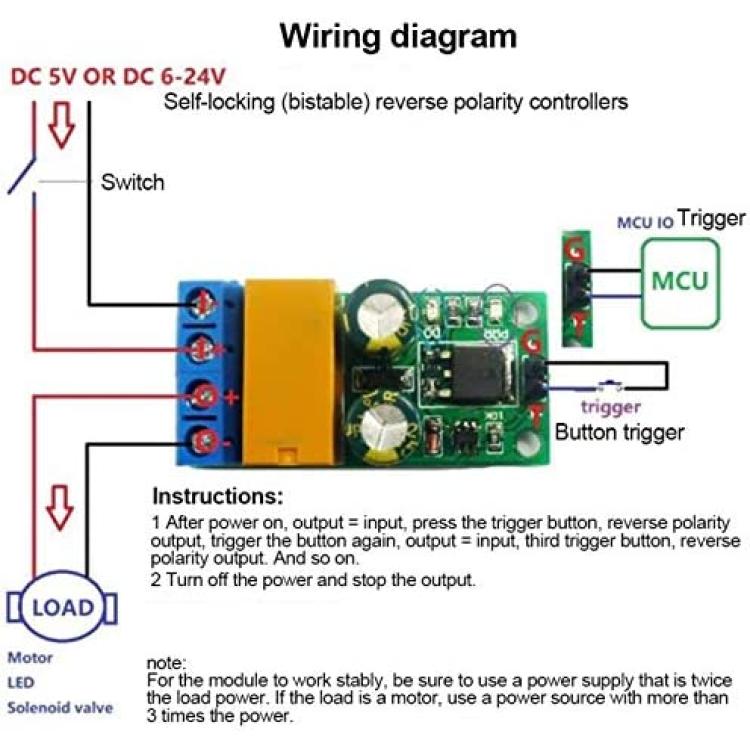

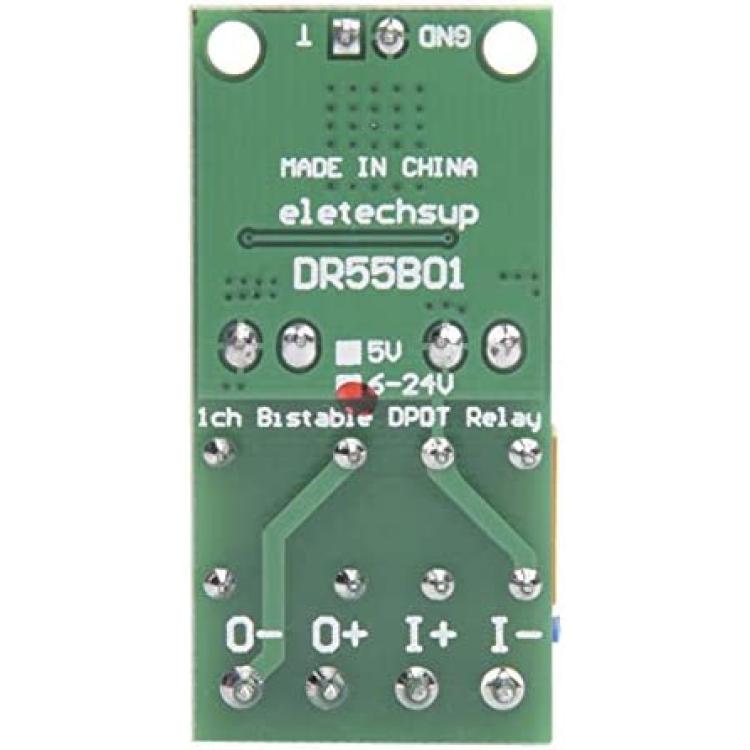

Pin description:
I +: power input +;
I-: voltage input-;
O +: power output + (The output in reverse polarity is-);
O-: power output-(The output in reverse polarity is +);
G: trigger signal ground;
T: trigger signal input (0.2-2 seconds low pulse).
Instructions:
1 After power on, output = input, press the trigger button, reverse polarity output, trigger the button again, output = input, third trigger button, reverse polarity output. And so on.
2 Turn off the power and stop the output.
Package List:
1 x CW/CCW Controller Module
Note:
1. For the module to work stably, be sure to use a power supply that is twice the load power. If the load is a motor, use a power source with more than 3 times the power.
2. The maximum load current is 2A. If it is a load motor, the maximum load current is 1A.
3. The module can only control forward and reverse (start and stop are controlled by power on and power off)
