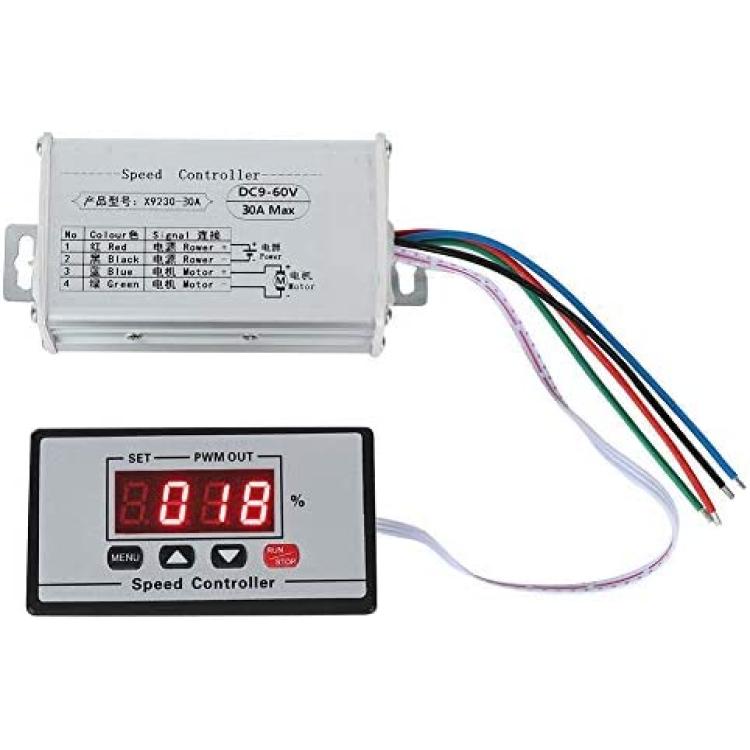

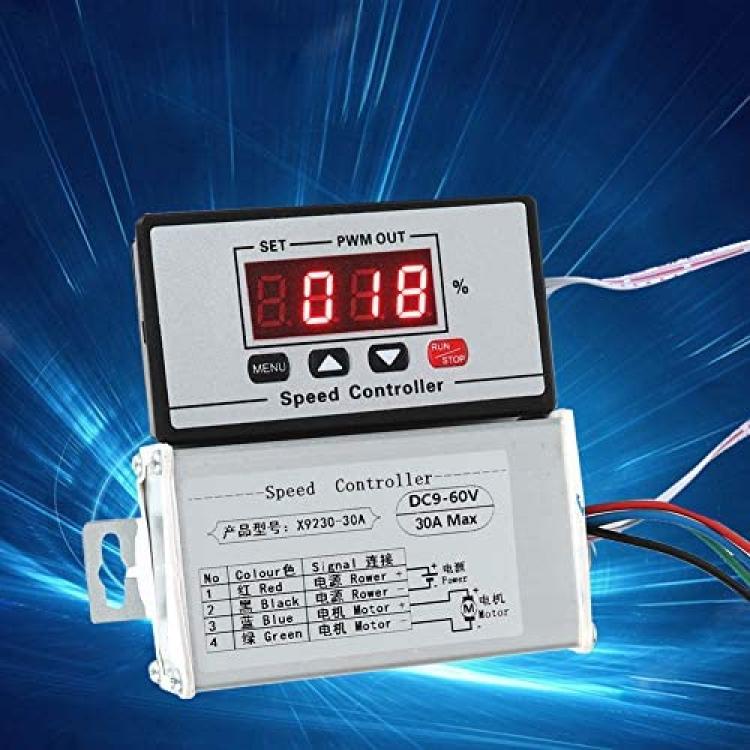

Gfnxk Dc9-60vmotor Speed Regulator,Brush Motor Speed Controller,with Digital Display 30a Output
About this product
*Convenient Reading:Designed with a LED Digital Display panel for easy reading and convenient setting of speed adjustment.
*Speed Increase Can Be Set:The maximum and minimum speed of the motor can be adjusted, and the speed increase can be set.
*Set Time:Can set the slow start and slow stop time of DC motor.
*Easy to operate:Easy to operate, can reduce the mechanical stress on the motor and shaft.
*This is a simple and easy-to-use DC motor speed controller of small size, stable performance.
Description
Feature:
1. Designed with a LED Digital Display panel for easy reading and convenient setting of speed adjustment.
2. Can set the slow start and slow stop time of DC motor.
3. The maximum and minimum speed of the motor can be adjusted, and the speed increase can be set.
4. This is a simple and easy-to-use DC motor speed controller of small size, stable performance.
5. Easy to operate, can reduce the mechanical stress on the motor and shaft.
6. Suitable for DC brush motor speed control.
Specification:
Item Type: Motor Speed Controller
Input Voltage: DC 9-60V
Output Voltage: Linear Under Load
Output Current: 30A
Continuous Current: 20A
Speed Range: 0%--100%
Control Frequency: 21Khz
Speed Control Mode: Button
Digital Positioning: 0-100 (Percentage)
Wiring Type: Wire
Support Motor: DC Brush Motor
Package List:
1 * Motor Speed Controller
Function panel description:
1. Slow start time setting Range: 000 - 100 slow start to 100% speed time is adjustable between 0-10 seconds, the default is 1 second.
2. Slow stop time setting Range: 000 - 100 Slow stop time is adjustable between 0-10 seconds, the default is 1 second.
3. Speed lower limit setting Range: 000- 080 The minimum speed is adjustable between 0-80%, and is less than the maximum speed setting. The default is 0.
4. Speed upper limit setting Range: 000- 100 The maximum speed is adjustable between 0-100% and is greater than the minimum speed setting. The default is 100%.
