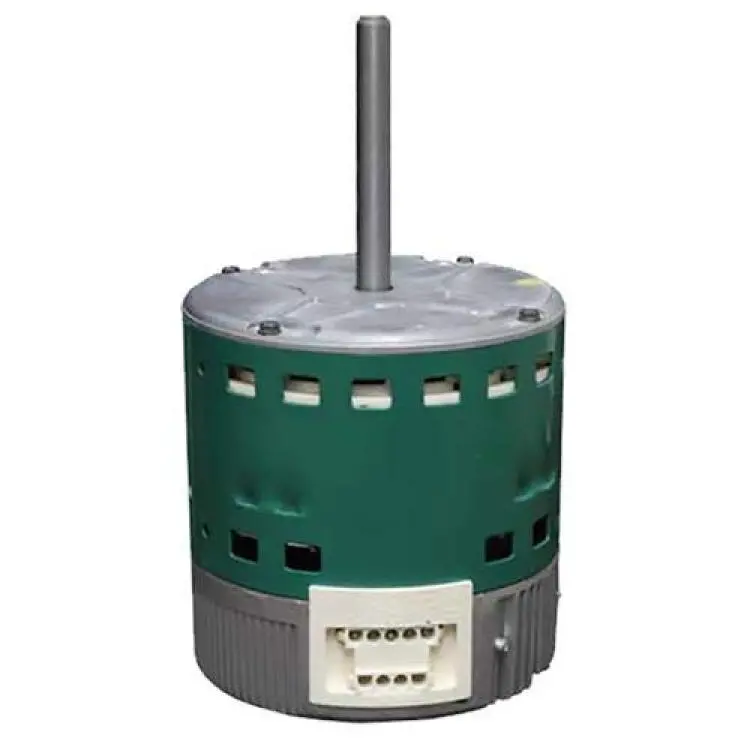

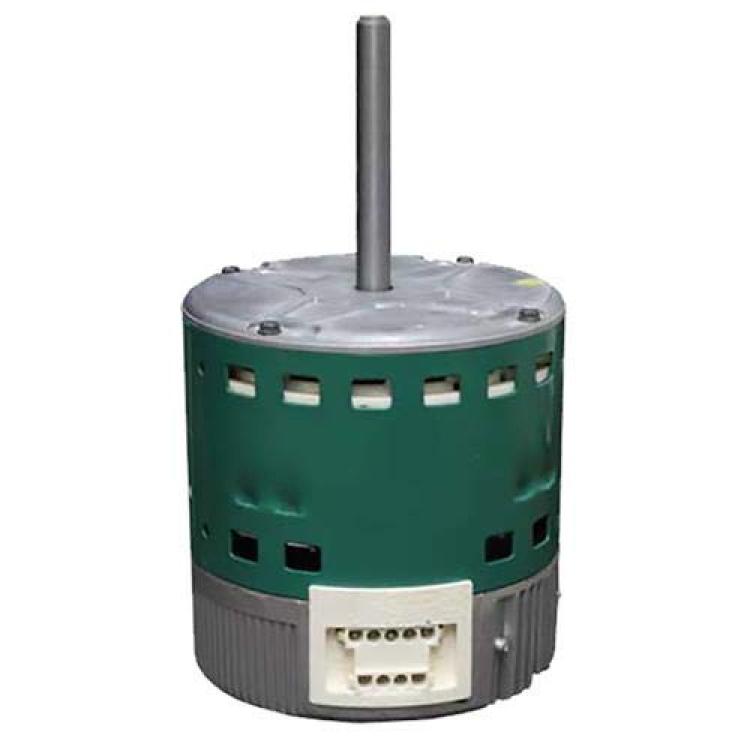

1 HP ECM Variable Speed Evergreen Replacement Motor # 6510 6510V 5SME39SXL3222

The Evergreen VS motor...designed to replace Genteq constant airflow (variable speed) ECM indoor blower motors. The Evergreen VS product line is designed specifically to replace Genteq models 2.3, Eon and 3.0 motors. These motors represent the largest volume of variable speed motors used to date in HVAC OEM indoor blower motor applications. NOTE: INTERFACE MODULE REQUIRED ON APPLICATIONS WITH 16-PIN HARNESS

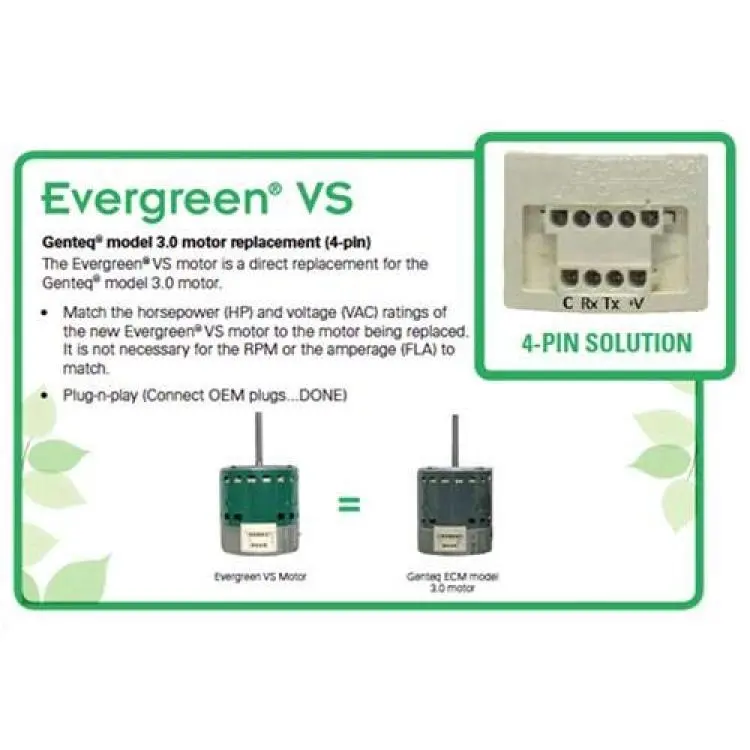

VS Motors are Plug & Play for 4-Pin Installations. User Interface Module 5K010 required for 16-pin installations (SOLD Separately).

Match the horsepower (HP) and voltage (VAC) ratings of the new Evergreen VS motor to the motor being replaced. It is not necessary for the RPM or the amperage (FLA) to match.

Features / Specifications

REPLACES / SUPERSEDES: 5SME39SXL3222 6510 , 6510VS , Goodman 0231K00036A , American Standard , Trane , Lennox , Carrier Evolution Infinity Rheem , Ruud and 100's of other OEM Variable Speed Motors

Need Help Identifying the Correct Component for your HVAC System? Contact AirstarSupply!
