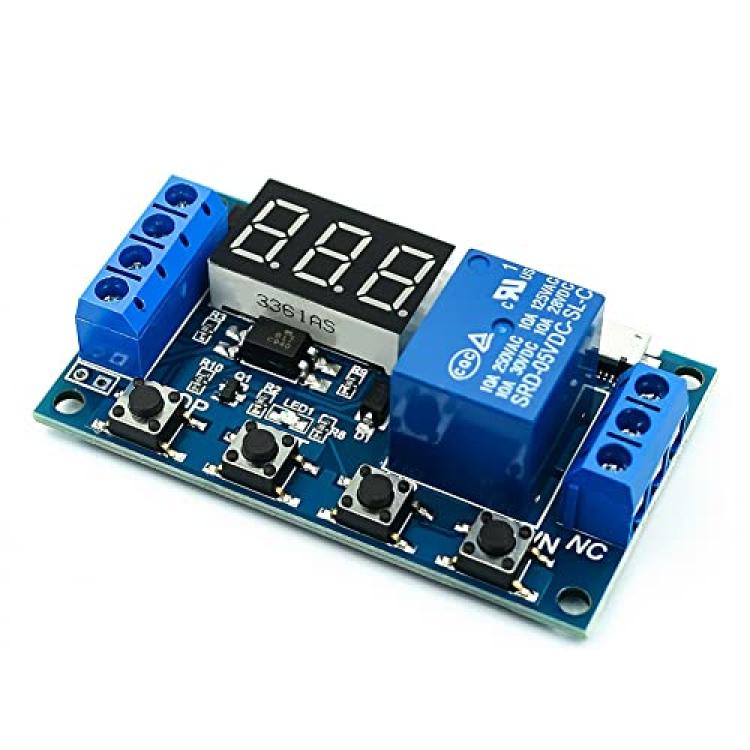

1 Channel Timer Switch Module DC 5V-36V 1 Channel Relay Module Trigger Cycle Delay Turn On/Off Relay Module with LED Display for DC Motors, Lights, LED Strips, Micro-Pumps, Solenoid Valves, etc

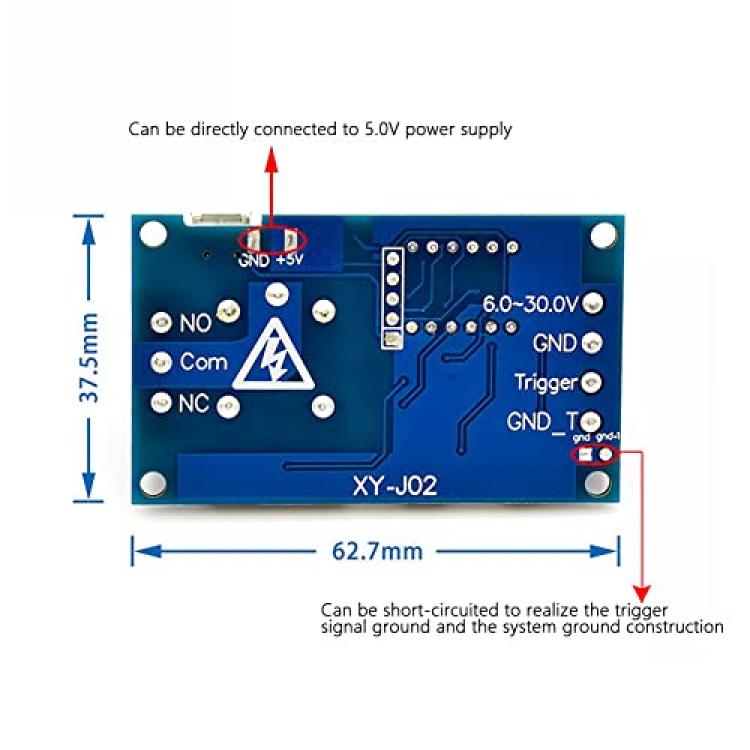

Parameter Specification: OP: Turn-On Time; CL: Turn-Off Time; LOP: Cycle Index ("---" means limitless cycle ), the parameters are independent with each other, but shared by each model. Timing setting: After setting the parameter values in the mode selection screen by a short press STOP button, select the time range; XXX 1 second to 999 seconds XX.X 0.1 seconds to 99.9 seconds X.X.X. 1 minute to 999 minutes Work Mode: Long press SET key to enter/quit mode selection screen. Relays Enable Mode: In the main interface, short press the STOP button to switch between ON and OFF. Sleep Mode: Long press STOP button for two seconds then release, to switch C-l and O-d state. Note: For details, please refer to the product picture Package Include: 1pcs 1 Channel Multi-functional Time Delay Relay (blue board) Product Description: Size: 6.2*3.8*1.7cm Work Voltage: 6-30V support micro USB 5.0V power supply Trig Source: High voltage level trigger ( 3.0V-24V ) Output Capability: Can control the device within DC 0-30V 5A or AC 0-220V 5A Quiescent Current: 20mA Work Current: 50mA Service Life: More than 100 thousand times Work Temperature: -40 - + 85 degree Main Interface: Off work status shows "000" (no decimal point ), work status has decimal point, very clear.
