2-in-1 5500 m W Module Engraver CNC 3018 Pro-M Engraving Machine, TopDirect GRBL Control 3 Axis CNC Router Kit Working Area 30x18x4.5cm, with Offline Controller Router Bits for Wood Plastic Acrylic

2-in-1 5500 m W Module Engraver CNC 3018 Pro-M Engraving Machine, TopDirect GRBL Control 3 Axis CNC Router Kit Working Area 30x18x4.5cm, with Offline Controller Router Bits for Wood Plastic Acrylic

Brand: ‎TopDirect
Product Code: MM26717
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

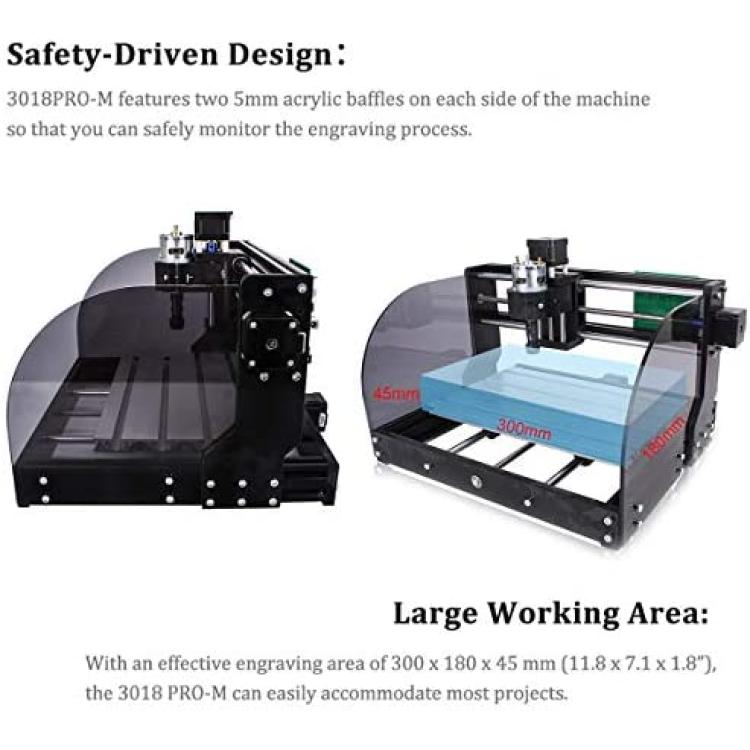

*⚒ 〖Double Safety Design〗New version - The protective design of a 5mm translucent brown acrylic baffle on both sides enables you to watch the engraving procedures safely.

*⚒ 〖Offline Controller Included〗1. DO NOT need to connect the computer; 2. DO NOT need to download files, the engraving file can be directly accessed. Manually adjust X, Y, Z axis locations as engraving start point, manually open or close spindle, manually open or close cooling fan. Note: Please dont use the computer and the Offline Controller at the same time, otherwise it will interference the communication.

*⚒〖5500 mW Laser Module〗High engraving power with remarkable working time. Can read files directly in JPG, BMP, SVG and engrave images easily. Comes with a pair of safety goggles to protect your eyes. Aircraft aluminum heatsink with cooling fan ensures long working time continuously. Suitable for engraving wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum and other similar materials, but can not engrave hard materials such as hard metal and jade.

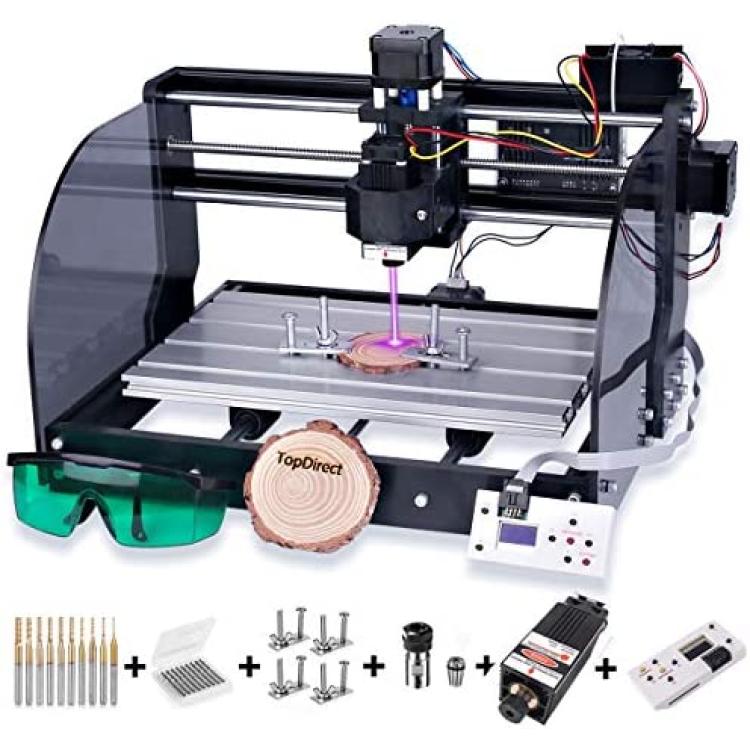

*⚒ 〖Complete Kit〗3018 PRO-M is a build-it-yourself CNC router that allows you to create 3D objects from wood, plastic, acrylic, and soft surface of the aluminum. It includes everything you need to start your CNC project (1 year warranty covered). If you need instruction and software or have any questions about our product, please do not hesitate to contact us. We strive to offer the 100% satisfaction for all our customers.

*⚒ 〖Double Safety Design〗New version - The protective design of a 5mm translucent brown acrylic baffle on both sides enables you to watch the engraving procedures safely.

Description

Laser Power: 5500mWWave Length: 450nmPower: 5.5W (max)Electric Current: <5A ( 1- 3A input )Input Voltage: DC AC 12VWorking Temperature: -10 ~+40Size: 33*33*75mmPower Supply Interface: Lead lineCooling: Air cooling Package included: 1 x Full set Engraving Machine(need to be assembled) 1 x Offline Controller 1 x 5500mw Laser 4 x CNC Plate 10 x CNC Bits 1 x Extension Rod with ER11 Collet 10 x 0.8-3mm Titanium Coat Carbide End Bits Effective Engraving Area: 30 x 18 x 4.5cmFrame Size: 400 x 330 x 240 mmFrame Material: Aluminum + PFMaterial of Z-axis Component: ABSSpindle: 775 motor; 24V, 9000rpmSoftware: GRBL control systems / Laser GRBL control systemsRated Power: 60W. Maximum Power: 120WStepper Motor: 1.3A, 12V, 0.25Nm torqueSupported: Win XP/Win 7 32/64 Bit/Win 8/Win 10Drill: Tip 0.2 mm, 20 degrees, diameter 3.175 mm 1.When the engraving machine is connected to the computer, please dont connect an external control module, otherwise it will interference the communication. 2.Important Note: Some components and core components have been assembled, simple assembly according to the installation instructions is needed, you can use the rack. 3.Can engrave plastic, wood, acrylic, PCB, PVC, wood and etc. [Materials can be engraved and cut] 5500mw laser module can engrave and cut cork wood(?5mm thick), 250g/300g cardboard, non-woven fabrics, cotton fabric, polyester silk fabric, canvas, leather. [Materials can be engraved BUT cannot be cut]5500mw laser module CAN engrave BUT cannot cut plastic, solid wood, bamboo, acrylic, jade, ceramics, stone, metal with paint coating, soft metal (Cu, Al). [Materials can be engraved BUT cannot be cut]5500mw laser module CAN engrave BUT cannot cut plastic, solid wood, bamboo, acrylic, jade, ceramics, stone, metal with paint coating, soft metal (Cu, Al). Manual Control: Manually adjust the position of the three axes of X, Y, Z as the start point of carving, manually open or close the spindle.Document Engraving: The offline board can be linked to the GRBL control board for engraving without storing a computer.Storage File: After the offline board is connected to the computer, it is recognized as a USB mass storage device, and the engraving file can be directly accessed.Designed for the absolute beginner, its a great tool to start CNC learning. If wood-working is your hobby, you can use it to add features like engraving curved words and exquisite patterns. If you are a student just start learning CNC, it can help you engrave the models you are coding and designing.If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.Laser GRBL supported, please contact me for the laser software if you want to upgrade.
