Vbestlife 2 Way Remote Control Switch Module, Universal Smart Wireless Support 300 to 868MHz, Multifrequency Remote Switch Module for Home 9 to 30V
About this product

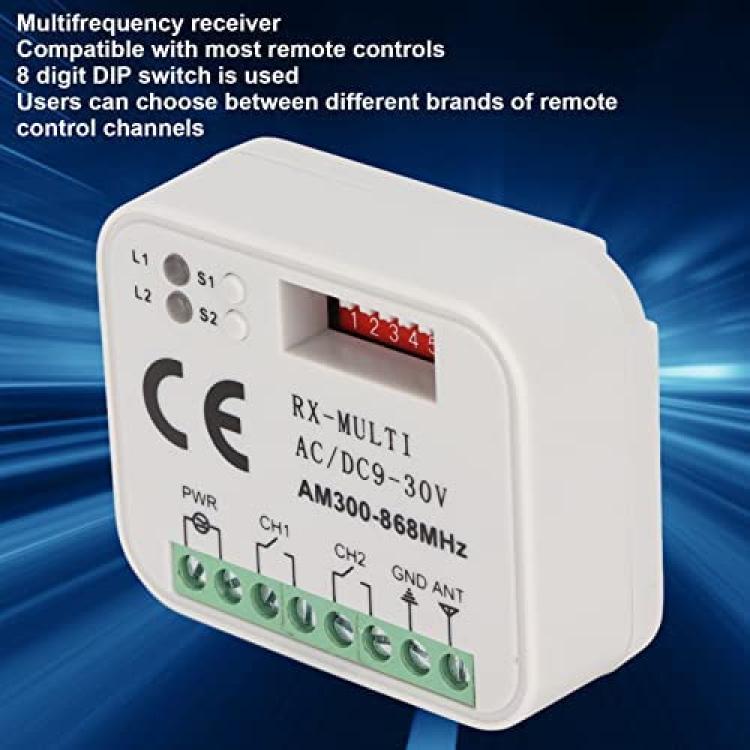

*[High Compatibility] The module is multi frequency receiver, which can be compatible with most remote controllers. With 8 digit dip switch, users can select different brands of remote controller channels.
*[Independent Channels] The multi frequency controller module has two independent output channels, each channel has independent learning buttons S1 and S2, each independent use without interfering with each other.
*[Easy To Use] The remote control template is very easy to set, learn, relearn and control. It is easy to master the usage as long as you follow the manual, with stable and reliable performance and high reception sensitivity.
*[Durable Material] The remote control switch module is 9‑30V working voltage, 300‑868MHz multi frequency reception, with two channels, using high quality ABS material, very durable, small size, easy to install.
*[Wide Application] used in various electronic equipment, smart home and production equipment, such as motors, lamps, access control buttons, swing gates, electronic locks, access locks, alarms, solenoid valves, etc.
Description
How to Use:
1. Plug and play
2. How to enter the remote control and erase all remote inputs for one or more remotes:
(1) First, select the correct brand of remote control will be accessed through the dip switch;Â
(2) Press any learning button, the LED is on. Press the button on the remote control, LED blinks 4 times, this button successfully enters the R Mult.
(3) Repeat step 2 for the other button. 2 channels are working in the same.
3. Clear all the data in the memory card:
(1) Press and hold the Learn button and the LED starts to light up.
(2) Keep this button pressed until the LED goes out. All data in the memory card is cleared.
Specification:
Item Type: Two Way Remote Control Switch Module
Material: ABS
Color: White
Operating Voltage: 9-30V
Operating Frequency: 300-868MHz
Scope of Application: Suitable for all kinds of electronic equipment, smart home and production equipment
Package List:
1 x Switch Module
1 x Adhesive
1 x Receiving Antenna
Note:
Remote control is not included
