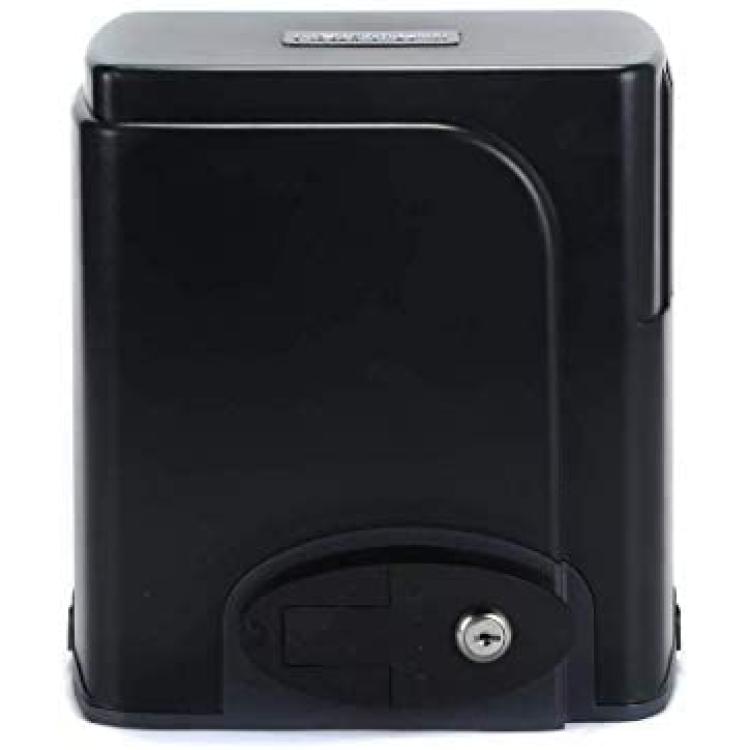

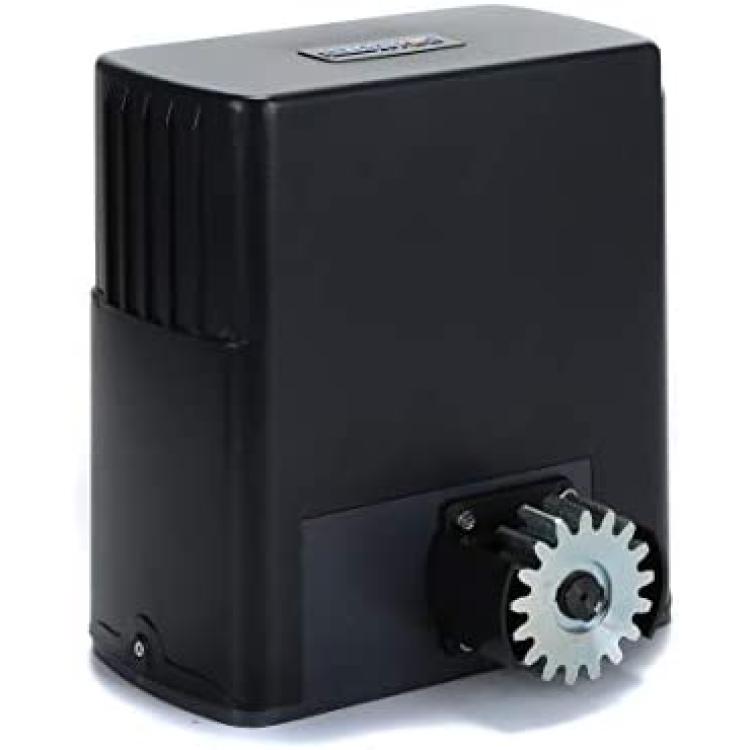

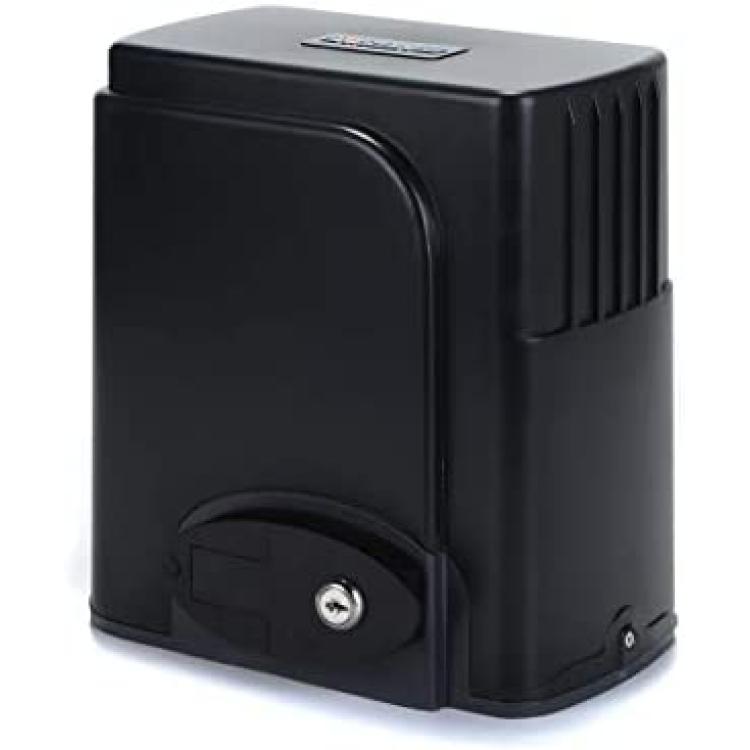

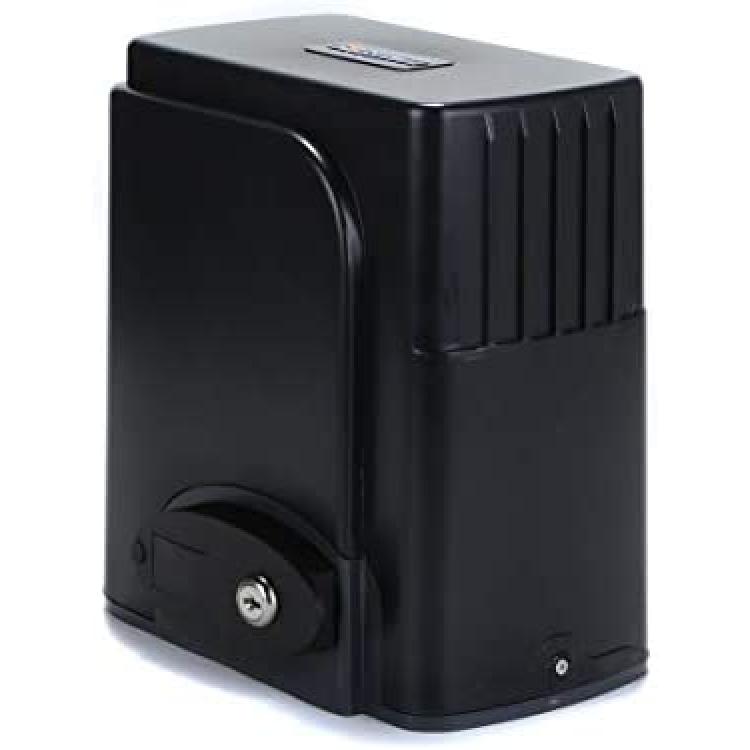

G.T.Master Automatic Rack Sliding Gate Opener Kit- Gear Track Driveway Security Door Operator Hardware with Remotes and Sensor for Slide Gate up to 1300lbs and 27ft (SL1300)
About this product
*【Racks】-- With 8pcs 1.64ft racks, total 13.12ft. Note the racks package is at the bottom of the box,please check it before you install the gate opener.
*【SL1300 Sliding Gate Opener】 -- The gate weight should be less than 1300lb and length should be less than 27ft.
*【Remote Control】 -- Remote control is single button mode, one same button on the remote control to circularly control the main engine OPEN/STOP/CLOSE/STOP, the three buttons have the same function, the other button is pedestrian mode. Supports up to 25 Remotes (Including batteries).
*【Infrared Photocell Function】 -- In the closing process, when infrared ray of the infrared sensor is covered, the gate will open immediately, to protect user and property security.
*【Automatic Close Function】 -- Auto-Close time can be set to 12, 24, or 36 seconds and no automatic close function.
Description
FEATURE
EATURE
Installation Diagram
Technical Parameters
NOTE

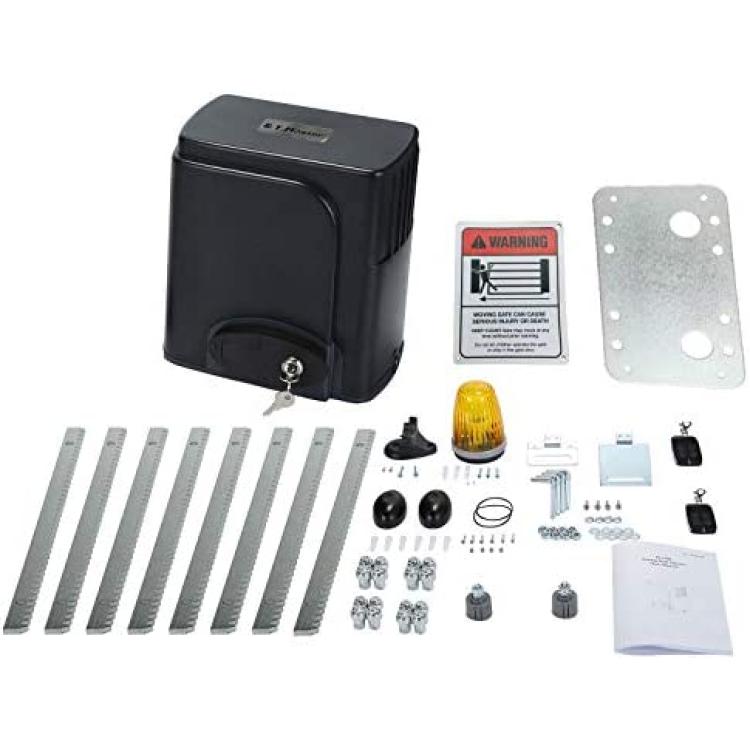

-Remote control is single button mode, one same button on the remote control to circularly control the main engine OPEN/STOP/CLOSE/STOP.-The fourth button on the remote control is for pedestrian mode, press the button the door will open about 1 meter when the door is closed, for pedestrian only.-Infrared Photocell Function: In the closing process, when infrared ray of the infrared sensor is covered, the gate will open immediately, to protect user and property security.-Automatic Close Function: Auto-Close time can be set to 12, 24, or 36 seconds and no automatic close function.-Intelligent Control Board: Soft start and soft stop function.Model: SL1300Power supply: 110V/60HzMotor power: 280WDriving mode: GearGate moving speed: 11-13m/minMaximum weight of gate: 1300lbRemote control distance: ?30mRemote control mode: Single button modeLimit switch: Magnetic limit switchNoise : ?58dBWorking duty: S2, 15minRecording of up remote controls: 25Frequency: 433.92 MHzWorking temperature: -20°C ~ +70°COutput Torque: 16N.mOutput Shaft Height: 46 mm/1.8 inch1*Sliding Gate Opener Unit8*Steel Gear Rack (30x8x500mm)2*Remote Controls2*Manual Release Keys1*Infrared Sensor1*Alarm Lamp1*Mounting Hardware1*Manual-The product is AC motor, so it can not connect with solar panel or storage battery.-Remote controller can be deleted together, but can not be partially deleted.-The motor will has thermal protection function if the machine keeps working over 15 minutes.-You can add 25 extra remotes at most to control this system.-You can also use the manual release key if a power outage or an emergency happening.
