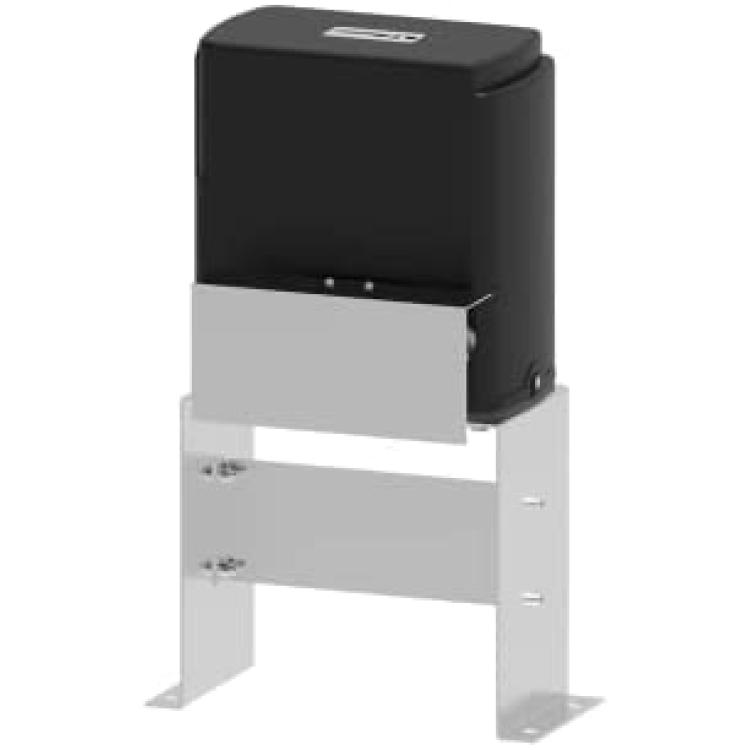

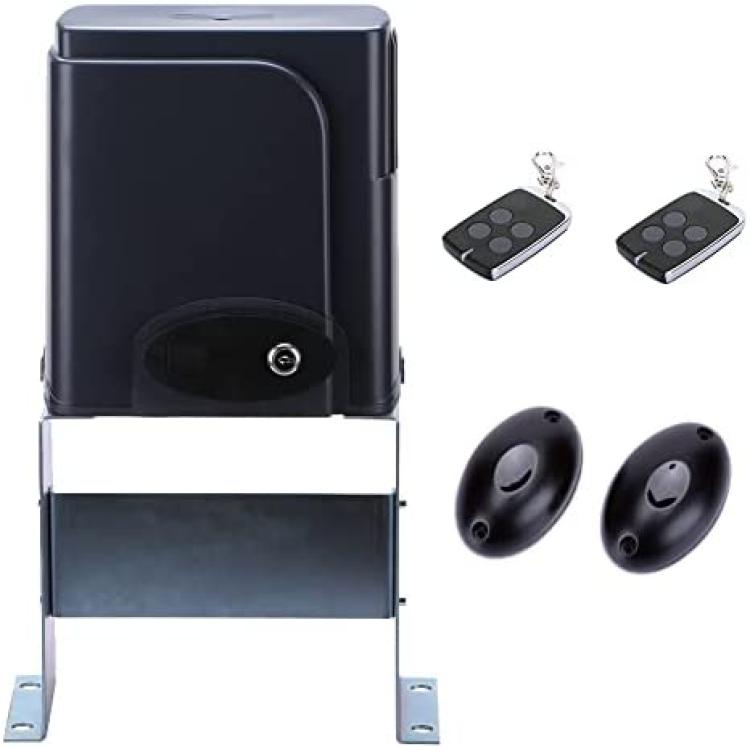

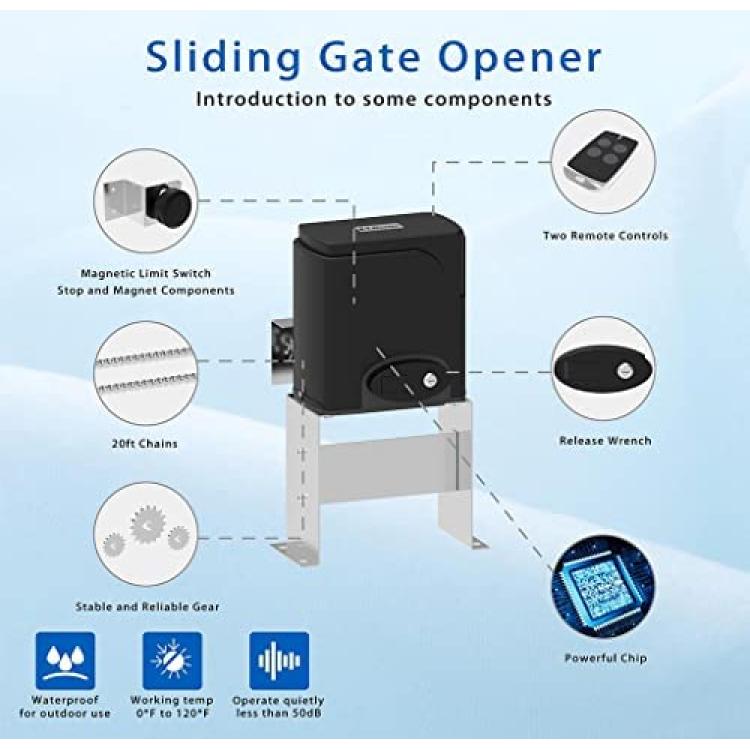

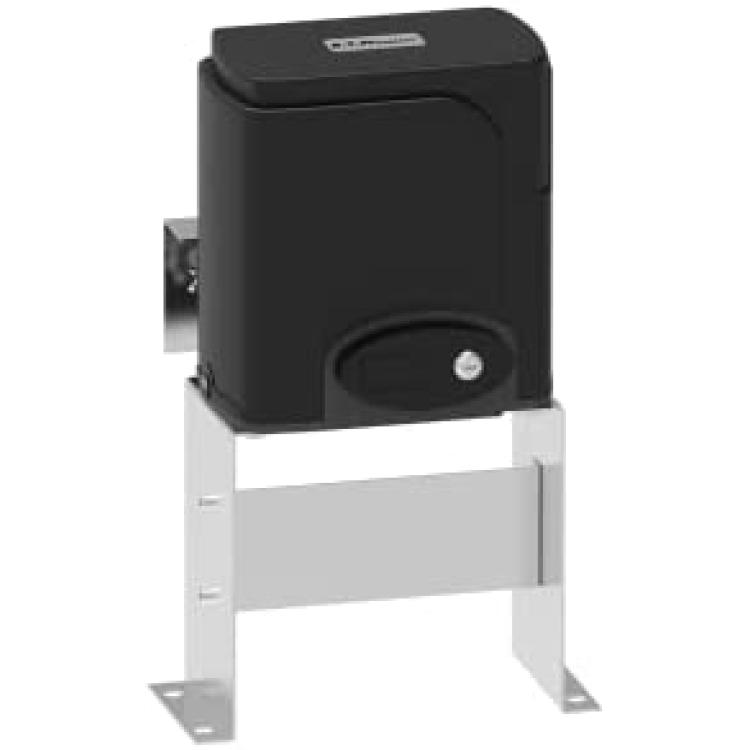

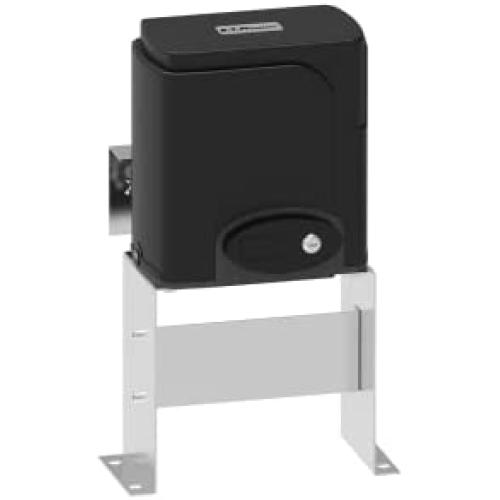

G.T.Master Sliding Automatic Gate Operator Kit - Driveway Security Gate Opener Hardware Kit with Two Transmitters and Infrared Photocell Sensor for Sliding Gates up to 1300lb and 27ft Long (GT1300)
About this product
*GT1300 Sliding Gate Opener -- The gate weight is less than 1300lb and length is less than 27ft. The length of the chain is 20ft, it can be shortened. If it need to be lengthened, make sure to use same type of chain.
*Remote Control -- Remote control is single button mode, one same button on the remote control to circularly control the main engine OPEN/STOP/CLOSE/STOP, the three buttons have the same function, the other button is pedestrian mode. Supports up to 25 Remotes (Including batteries).
*Infrared Photocell Function -- In the closing process, when infrared ray of the infrared sensor is covered, the gate will open immediately, to protect user and property security. (The Infrared sensor is free as a gift.)
*Automatic Close Function -- Auto-Close time can be set to 12, 24, or 36 seconds and no automatic close function.
*Intelligent Control Board -- Soft start and slow stop function,which can extend the life of the gate opener and safer. Long-range control, compatible with HOMELINK system, fast and convenient.
Description
FEATURE
EATURE
Remote control distance: 100ft Remote control distance: 100ft Remote control mode: Single button mode Remote control mode: Single button mode Noise: ?58dB Noise: ?58dB Working duty: S2, 15min Working duty: S2, 15min Working temperature: -20°C ~ +70°C Working temperature: -20°C ~ +70°C Output Shaft Height: 46 mm/1.8 inch Output Shaft Height: 46 mm/1.8 inch Chain length: 20ft (can be lengthened or shortened) Chain length: 20ft (can be lengthened or shortened)
SPECIFICATION

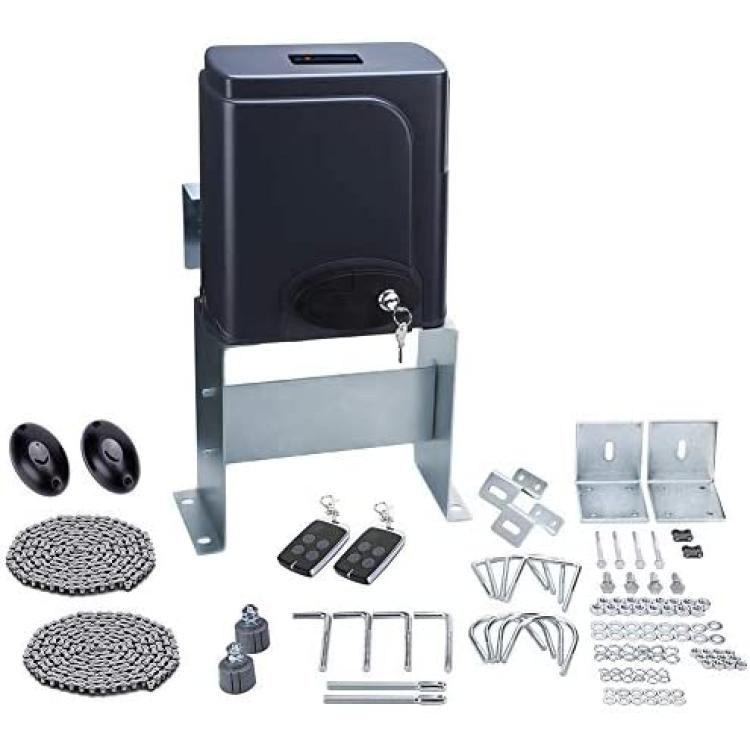

PACKAGE INCLUDES

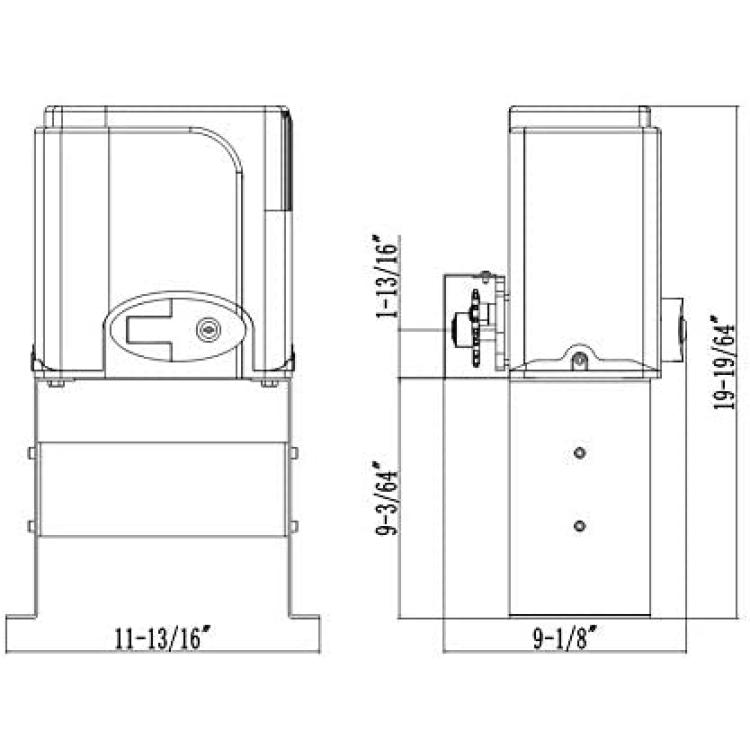

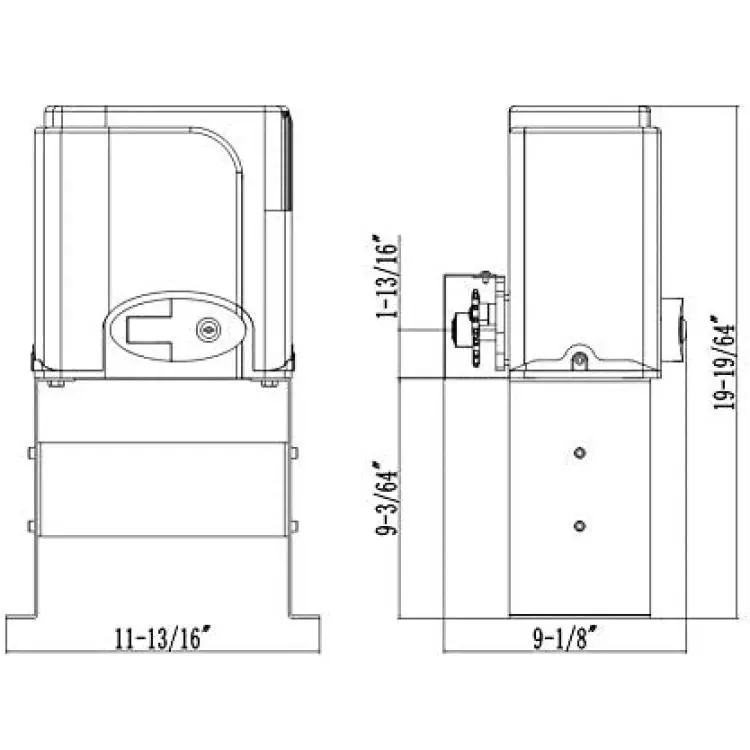

Model: GT1300 Power supply: 110V/60Hz Motor power: 280W Gate moving speed: 40ft/min Maximum weight of gate: 1300lb Maximum length of gate: 27ft Limit switch: Magnetic limit switch Frequency: 433.92 MHz Remote control distance: 100ft Remote control mode: Single button mode Noise: ?58dB Working duty: S2, 15min Working temperature: -20°C ~ +70°C Output Shaft Height: 46 mm/1.8 inch Chain length: 20ft (can be lengthened or shortened) -Remote control is single button mode, one same button on the remote control to circularly control the main engine OPEN/STOP/CLOSE/STOP.-The fourth button on the remote control is for pedestrian mode, press the button the door will open about 1 meter when the door is closed, for pedestrian only.-Infrared Photocell Function: In the closing process, when infrared ray of the infrared sensor is covered, the gate will open immediately, to protect user and property security.-Automatic Close Function: Auto-Close time can be set to 12, 24, or 36 seconds and no automatic close function.-Intelligent Control Board: Soft start and stop function will be safer, which can extend the using life of the gate opener .-The product is AC motor, so it can not connect with solar panel or storage battery.-Remote controller can be deleted together, but can not be partially deleted.-The motor will has thermal protection function if the machine keeps working over 15 minutes.-You can add 25 extra remotes at most to control this system.-You can also use the manual release key if a power outage or an emergency happening.Soft start and slow stop function will be safer, which can extend the using life of the gate opener .When the power is off, you can use the release key and push the gate manually.With roller code, more reliable and safer.When the infrared photocell sensor senses an object, the gate will open automatically, more convenience.1*Sliding Gate Opener Unit1*20ft of Chain2*Remote Controls2*Manual Release Keys2*Infrared sensor1*Mounting Hardware1*Manual
