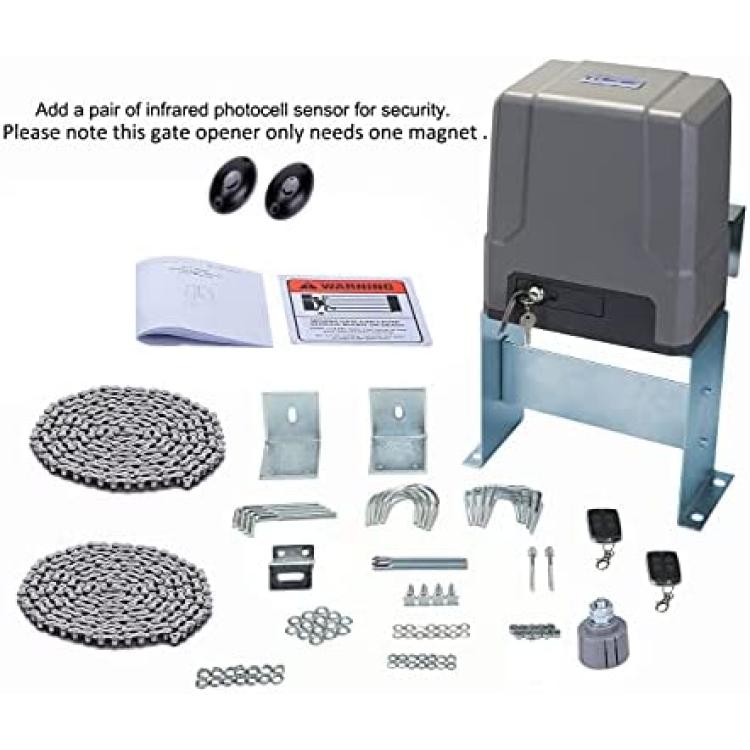

G.T.Master Fast Automatic Sliding Gate Opener Kit - DC Driveway Security Door Operator Hardware Kit with Remotes Control Infrared Photocell Sensor for Sliding Gates up to 1100lb and 40ft(GT1100DC)…

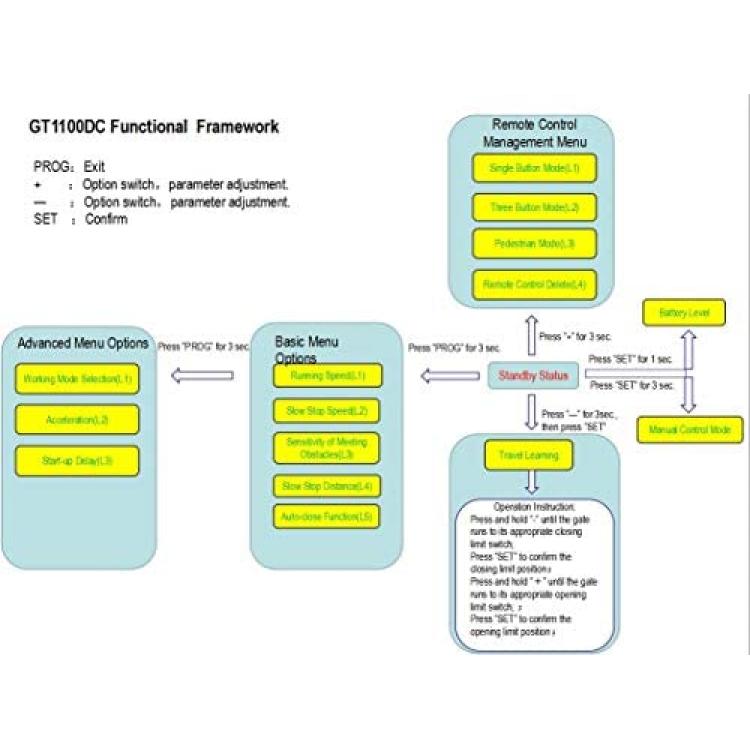

Running Speed SettingSlow Stop Speed SettingAuto-reverse When Meeting Obstacles SettingSlow Stop Distance SettingAuto-close Function SettingDue to the usage for this product is different for users from different regions, the control board for this product offers different working modes for users to chooseDue to the different installation environment and gate installation status, users can adjust the acceleration of starting and deceleration of buffering of the gate opener to their necessary.When the gate opener receives the opening/closing signal, it’ll start to work after a certain time (the settled delay time)The origin marker should be mounted to the gate by the installer when installing the gate opener. The origin sensor was installed inside the machine in the factory.During gate opening and closing, the gate opener will calibrate the opening and closing limit position through the origin sensor kit to realize a precise travel positioning.When the power supply is accidentally failed, the gate opener will restore to its setting travel through the origin sensor kit.Do not move or remove the origin marker after the opening and closing limit position are settled.Recording of up remote controls: 100Single button mode: One button on the remote control can control the gate opener open-stop-close.Pedestrian Mode function: Press the pedestrian mode button on the remote control (the forth button) when the gate is closed, it will open for 3.28 ft then stop which is for pedestrian traffic.Remote Control Intelligent Learning: Enables user to pair the remote controls to the control board without dismantling the machine.Model: GT1100DCPower supply: 110V/60HzMotor power: 150WGate moving speed: 52-59 ft/minMaximum weight of gate: 1100 lbRemote control distance: ? 100 ftRemote control mode: Single button modeLimit switch: Electronic limit switchNoise: ?60dBWorking duty: S2, 20minRecording of up remote controls: 100Frequency: 433.92 MHzWorking temperature: -20°C ~ +70°CIn order to make sure that the first installation of this product is in good condition, users can test the opening/closing operation under manual control mode.Under low power circumstance, users may have to unlock the machine first, after which the gate can be manually operated. Sliding Gate Opener x1 Infrared sensor Manual Release Key x2 Remote Control x2 20ft Chain Installation Parts User Manual Warning Label
