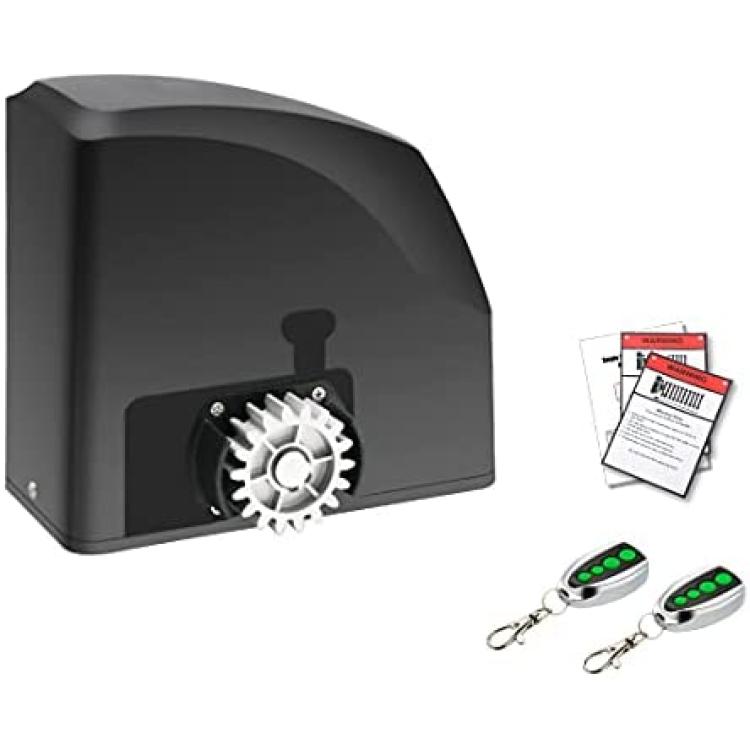

TOPENS DKR500 Sliding Gate Opener Heavy Duty Rack Driven Battery Compatible Solar Capable Automatic Slide Gate Motor for Gate Up to 1300 Pounds and 40 Feet, Driveway Security Gate Operator

Using advanced technology, the open/close direction is easy to switch. Your gate is allowed to open toward left or right.Equipped with manual release key in case of power outage or when you lose your remote.Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.The adjustable midway/pedestrian mode allows the gate open for only a few feet.Soft start and soft stop ensure a long-lasting performance. The soft stop time is adjustable.Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.Reliable electromagnetism limit for easy adjustment.Built-in adjustable auto-close time (0, 30, 60, 90 seconds) and adjustable open/close obstruction sensitivity (stall force).Built-in max. Motor Running Time (MRT 90 seconds) for multiple safety protection.Easy to install, and minimum maintenance requirement.12 Month TOPENS Warrnty, plus professional TopensCare+ technical guidance.Recommended where AC electricity is accessible and stable.The power supply cord is NOT included. The power supply cord should be at least 3C × 18 AWG (3C × 0.75 mm2). Connect the live wire, neutral wire and earth wire to the “L”, “N” and “PE” terminal respectively.Release the clutch and open the gate manually in case of power outage.Recommended where AC electricity is accessible, but not stable.Requires additional 24V 12Ah Automotive / Marine type battery (Battery is NOT included). 2 pcs 12V batteries connected in series for 24V.Recommended in remote location such as farm, ranch, pasture, etc.TOPENS TSP30W 30-Watt 24V Solar Panel Charging Kit is offered online (Asin: B07ZTBRVXL).Recommended where AC electricity is accessible, but not stable.The gear rack (rail) is REQUIRED BUT NOT included. ONLY plastic rack reinforced with steel is compatible. TOPENS Original RNH2 (Asin: B093FCGDM7) and RNH4 (Asin: B078TCZ7TT) Heavy Duty Gear Rack is available online. Keep the rack from any debris to ensure the smooth operation of the motor. Package Dimension: 16.9 x 10.2 x 13.8” ( 43 x 26 x 35 cm) Shipping Weight: 20.3 lbs (9.2 kg) 1 x Gate Opener2 x M12 Remote Control Transmitter1 x Emergency Release Key1 x Full Set of Required Installation Hardware1 x Magnet Assembly (N pole & S pole)2 x Warning Sign1 x Detailed Installation ManualProduct Model: DKR500 Gate OpenerMotor Voltage: DC 24VMotor Power: 180W 1/4 HPMax. Gate Weight: 1300 lbs. (600 kg)Max. Gate Length: 40 ft. (12 m)Gate Moving Speed: 8.3 in/s (21 cm/s)Gate Opening/Closing Time: approx. 20-60 seconds depends on the gate lengthOperation Range for the Remote Control: 65 (20m)Frequency: 433.92 MHz, unique code per gate openerMax. # of Remote Control Supported: 8 pcs on its own, up to 250 pcs with the TOPENS ERM12 External Receiver that is sold separatelyWorking Temperature: 0°F to 120°F (-20?~+50?)Sound Level: < 50 dBProtection Class: IP44 - Waterproof and DustproofOverall Dimension: 11.3 x 5.7 x 10.4" L x W x H (287 x 144 x 263 mm)M12 Remote Control (Asin: B075L4BN21)ERM12 External Receiver (Asin: B075KHPLHD)TC186-R WiFi Smartphone Remote Control with Camera (Asin: B07ZSXPSZZ)TC186 Universal WiFi Smartphone Remote Control with Camera (Asin: B07ZVHM2WL)HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8)TKP3 Wireless Keypad (Asin: B075K783DS)TC175P Wired Keypad (Asin: B07ZTB33JK)TC173 Wireless Push Button (Asin: B07ZTC75CX)TC147 Wired Push Button (Asin: B07ZTB2TQH)TEW3 Vehicle Sensor Exit Wand (Asin: B07DF8ZQNB)TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT)TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)JD24VY DC 24V Warning Light (Asin: B07ZTB326B)TSP30W 30W Solar Panel Charging Kit (Asin: B07ZTBRVXL)TCS3 Solar Charge Controller (Asin: B07ZTC6317)RNH2 Heavy Duty Gear Rack (Asin: B093FCGDM7)RNH4 Heavy Duty Gear Rack (Asin: B078TCZ7TT)DKPYMJ1B Control Panel (Asin: B093F9CR2F)PYMJ-CKG Limit Switch (Asin: B078WJQDYF)
