TOPENS AD8 Automatic Gate Opener Kit Heavy Duty Dual Gate Operator for Dual Swing Gates Up to 880 Pounds Gate Motor

TOPENS AD8 Automatic Gate Opener Kit Heavy Duty Dual Gate Operator for Dual Swing Gates Up to 880 Pounds Gate Motor

Name: TOPENS AD8 Automatic Gate Opener Kit Heavy Duty Dual Gate Operator for Dual Swing Gates Up to 880 Pounds Gate Motor
Brand: ‎TOPENS
SKU: MM25276
Availability: InStock

Brand: ‎TOPENS
Product Code: MM25276
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*【Heavy Duty】- Featuring two 24V DC motors with low power consumption, TOPENS AD8 Automatic Gate Opener is designed for HEAVY DUTY dual swing gates up to a maximum of 18 ft. long or maximum of weight of 850 lbs. per gate leaf. The extendable and durable aluminum swing arms bring a superior performance for heavy weight gates. The system provides a long operating life with minimum maintenance requirement.

*【Multiple Applications】- Suitable for all types of dual swing gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link. Typical application includes residential, courtyard, pasture, farm & ranch. Easy DIY installation with commonly available tools, no extra welding, no high-voltage electrical connection. Full mounting hardware and easy-to-follow instructions are included for your peace of mind. The whole installation takes just a few hours.

*【Clever Design】- Using advanced technology, two optional installation styles of Pull-to-Open / Push-to-Open enable the gate open Inwards or Outwards. The energy-saving designed system supports all the power supply modes, by 24V battery (battery NOT included) or by AC electricity (requires the additional purchase of TOPENS DPS180-U AC-DC Power Supply). A wide range of accessories are available, include Solar Panel, TC186-R WiFi Remote, TKP3 Wireless Keypad, ET24 Electric Gate Lock, etc. So smart!

*【Safe to Use】- Features TOPENS security technology that ensures multiple protection & safety. Reliable electromagnetism limit switch for easy adjustment. Soft start and soft stop ensuring a long-lasting performance. Adjustable auto-close time (3-120s), adjustable stall force, max motor running time (40s), and microchip rolling code for remote keys. Built-in stop and reverse mode in case of obstruction. Equipped with the manual release key in case of power outage or when you lose your remote.

*【Outstanding Customer Service】- Backed by a 12-month TOPENS Warranty, and free product return & exchange service within 30 days. More than a gate opener, our complimentary TopensCare+ Customer Support provides you comprehensive system solutions.Simply contact us via the service Email for any concerns during product installation and use.We are quite sure that you will be super-impressed with HIGH QUALITY of our Swing Gate Opener.

Description

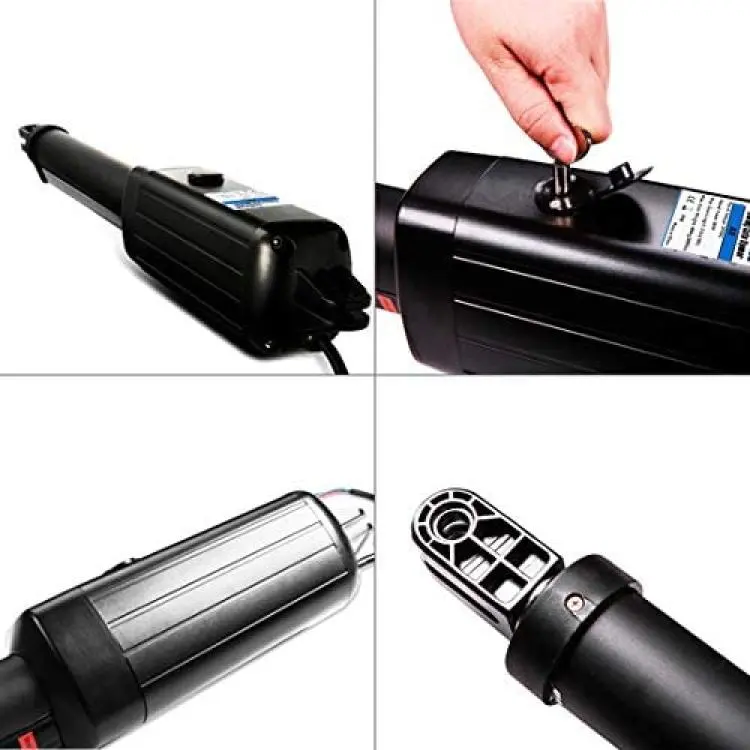

Two installation modes, Pull-to-Open or Push-to-Open, allows gate open inwards or outwards.Equipped with 90° manual release key in case of power outage or when you lose your remote.Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.Soft start and soft stop ensure a long-lasting performance. The soft stop time is adjustable.Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.Reliable electromagnetism limit switch for easy adjustment.Built-in adjustable auto-close time (3-120 seconds) and adjustable obstruction sensitivity / stall force.Built-in max. Motor Running Time (MRT 40 seconds) for multiple safety protection.Adjustable opening/closing interval (1-9 seconds) between master and slave gate.Easy to install, and minimum maintenance requirement.12 Month TOPENS Warrnty, plus professional TopensCare+ tech guidance.Recommended where AC electricity is accessible, but not stable.Requires additional 24V 12Ah Automotive / Marine type battery. 2 pcs 12V batteries connected in series for 24V (Battery is NOT included).Use the TS24-U adapter (included) to charge the batteries.Recommended where AC electricity is accessible and stable.DPS180-U AC-DC Power Supply is offered online (Asin: B07DF8HQV3).The Power Supply (NOT included) is plugged into an AC 100-240V 50Hz/60Hz outlet and delivers DC 24V to power the system. Release the clutch and open the gate manually in case of power outage.Recommended in remote location such as farm, ranch, pasture, etc.TOPENS TSP30W 30-Watt 24V Solar Panel Charging Kit is offered online (Asin: B07ZTBRVXL). Battery is NOT included.Recommended where AC electricity is accessible, but not stable.The battery and TSP30W Solar Panel Charging Kit are sold separately. Package Dimension: 35.8 x 11 x 8.3” (91 x 28 x 21 cm) Shipping Weight: 35.3 lbs (16 kg) 2 x Gate Opener Actuator (Arm), with a 5 5-Conductor Cable per Arm1 x Waterproof Control Box2 x M12 Remote Control Transmitter1 x TS24-U Adapter with a 4 cord (This adapter is only used to charge the battery. Battery is not included.)1 x 25ft Extension 5 Conductor Cable2 x Emergency Release Key2 x Post Pivot Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)2 x PSO Part Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)1 x Full Set of Required Installation Hardware4 x Warning Sign 1 x Detailed Installation ManualProduct Model: AD8 Gate OpenerMotor Voltage: DC 24VMotor Power: 80WRated Current: 3AActuator Speed: 0.63 in/s (16 mm/s)Max. Actuator Travel: 15.1” (385 mm)Gate Opening/Closing Time: approx. 15 secondsMax. Opening Angle: 90° - 110° depends on the installation modeOperation Range for the Remote Transmitter: 65’ (20 m)Frequency: 433.92MHz, unique code per gate openerMax. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separatelyWorking Temperature: -4°F to 122°F (-20?~ +50?)Sound Level: < 50 dBProtection Class: IP44 - Waterproof and DustproofDimension of the Arm (Actuator): 33.7 x 3.3 x 4.1” (855 x 84 x 104 mm)Dimension of the Control Box: 6.3 x 6.3 x 2.8” (160 x 160 x 70 mm)M12 Remote Control (Asin: B075L4BN21)ERM12 External Receiver (Asin: B075KHPLHD)TC186-R WiFi Smartphone Remote Control with Camera (Asin: B07ZSXPSZZ)TC186 Universal WiFi Smartphone Remote Control with Camera (Asin: B07ZVHM2WL)TKP3 Wireless Keypad (Asin: B075K783DS)TC175P Wired Keypad (Asin: B07ZTB33JK)TEW3 Vehicle Sensor Exit Wand (Asin: B07DF8ZQNB)HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8)TC173 Wireless Push Button (Asin: B07ZTC75CX)TC147 Wired Push Button (Asin: B07ZTB2TQH)ET24 Electric Gate Lock (Asin: B078WQF21N)TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT)TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)JD24VY 24V Warning Light (Asin: B07ZTB326B)TSP30W 30W Solar Panel Charging Kit (Asin: B07ZTBRVXL)TCS3 Solar Charge Controller (Asin: B07ZTC6317)DPS180-U AC-DC Power Supply (Asin: B07DF8HQV3)25FT Extension 5-Conductor Cable (Asin: B07WCW6W8T)A8JB Arm Actuator (Asin: B07PMJ7NX3)EKPKMJ4B Control Panel (Asin: B07H8ZVM3D)ALS01 Limit Switch (Asin: B078TBH86G)TS24-U Adapter (Asin: B07CWNP9R6)MK01 Hardware Kit (Asin: B07ZTC94Y7)
