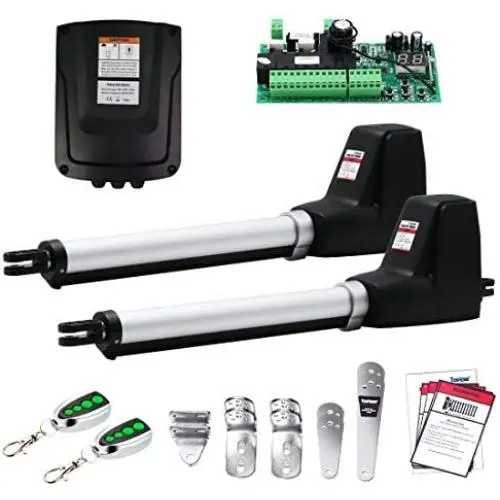

TOPENS AT602 Dual Gate Opener Medium Duty Automatic Gate Opener Kit for Dual Swing Gates Up to 18 Feet or 660 Pounds Gate Motor AC Powered

TOPENS AT602 Dual Gate Opener Medium Duty Automatic Gate Opener Kit for Dual Swing Gates Up to 18 Feet or 660 Pounds Gate Motor AC Powered

Brand: ‎TOPENS
Product Code: MM24939
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

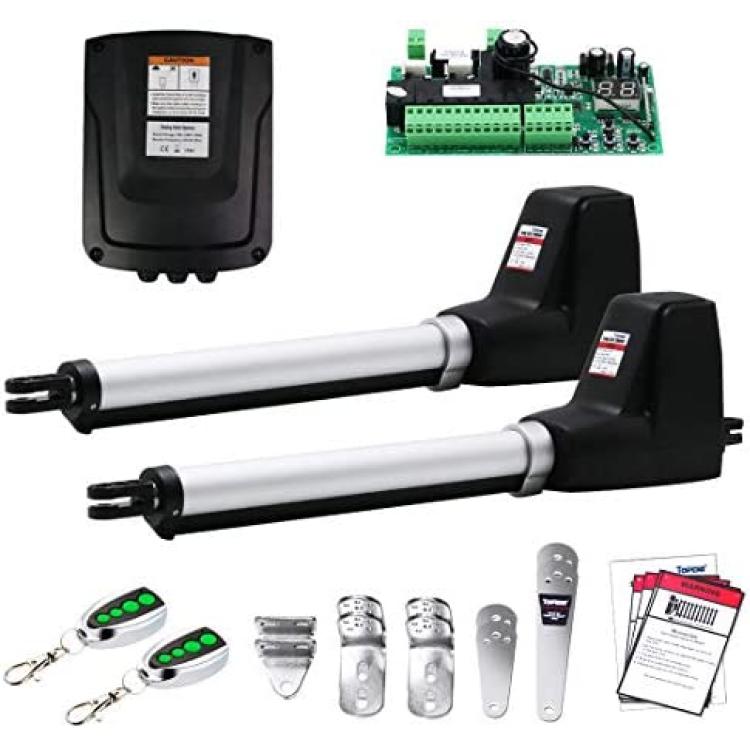

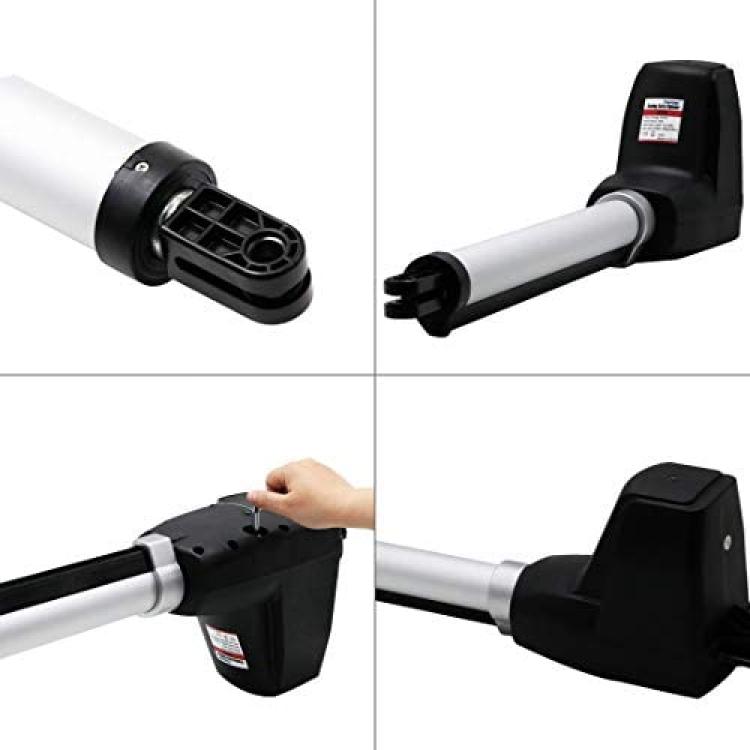

*【MEDIUM DUTY DUAL OPENER】Features two 24VDC motors with low power consumption, TOPENS AT602 Automatic Gate Opener is designed for Medium Duty dual swing gates up to a max. of 18 ft. long or max. of weight of 660 lbs. per gate leaf. The extendable and durable aluminum swing arms bring a superior performance for medium weight gates. The system provides a long operating life with minimum maintenance requirement.

*【POWER SUPPLY METHODS】Built-in transformer, AT602 is powered by 110VAC electricity directly. The additional 24V automotive / marine type battery (Battery is NOT included) and 24V solar panel & solar controller (NOT included) are also allowed to use as back-up power source. 2 PCS 12V batteries connected in series for 24V.

*【MULTIPLE PROTECTION & SAFETY】 Reliable electromagnetism limit switch for easy adjustment. Soft start and soft stop ensuring a long-lasting performance. Adjustable self-close time (0-99s), adjustable stall force, adjustable max motor running time (1-50s), and microchip rolling code for remote keys. Built-in stop and reverse mode in case of obstruction. Equipped with 90° manual release key in case of power outage or when you lose your remote.

*【WIDE APPLICATIONS】Suitable for all types of dual swing gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link. Typical application includes residential, courtyard, pasture, farm & ranch. Easy DIY installation with commonly available tools, no extra welding. Full mounting hardware and easy-to-follow instructions are included for your peace of mind. The whole installation takes just a few hours.

*【 TECH SUPPORT】All TOPENS products come with 1 year warranty, Life-time tech support, free system consultant service. More than a gate opener, our complimentary TOPENS Care+ Customer Support provides you comprehensive system solutions. Simply contact us via the service Email for any concerns during product installation and use. Just feel free to contact us here. We are willing to help you in anytime.

Description

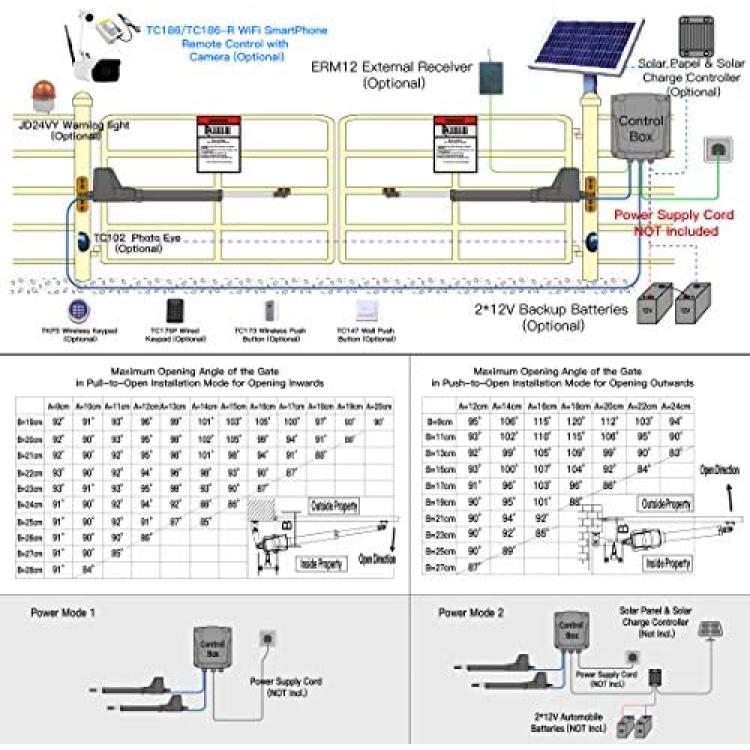

Two installation modes, Pull-to-Open or Push-to-Open, allows gate open inwards or outwards.Equipped with manual release key in case of power outage or when you lose your remote.Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.Soft start and soft stop ensure a long-lasting performance. The soft start & stop period is adjustable.Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing.Reliable electromagnetism limit switch for easy adjustment.Digital display indicates the running situation and setting menu.Built-in adjustable auto-close time (0-99 seconds) and adjustable obstruction sensitivity / stall force.Built-in adjustable max. Motor Running Time (MRT 1-50 seconds) for multiple safety protection.Adjustable open/close interval (0-9 seconds) between master and slave gate.Dual/Single gate running mode selectable.Easy to install, and minimum maintenance requirement.12 Month TOPENS Warrnty, plus professional TopensCare+ technical guidance.Recommended where AC electricity is accessible and stable.The power supply cord is NOT included.The power supply cord should be at least 2C×18AWG (2×0.75mm2). Connect the live wire and neutral wire to the “L” (#1) and “N” (#3) terminal respectively.Release the clutch and open the gate manually in case of power outage.Recommended where AC electricity is accessible, but not stable.Requires additional 24V 12Ah Automotive / Marine type battery (Battery is NOT included). 2 pcs 12V batteries connected in series for 24V.TOPENS TSP30W 30-Watt 24V Solar Panel Charging Kit is offered online (Asin: B07ZTBRVXL). Package Dimension: 36 x 17.7 x 7.9” (91.5 x 45 x 20 cm) Shipping Weight: 43.7 lbs (19.8 kg) 2 x Gate Opener Actuator (Arm), with a 5 5-Conductor Cable per Arm1 x Waterproof Control Box2 x M12 Remote Control Transmitter1 x 25ft Extension 5 Conductor Cable2 x Emergency Release Key2 x Post Pivot Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)2 x PSO Part Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)1 x Full Set of Required Installation Hardware4 x Warning Sign1 x Detailed Installation ManualProduct Model: AT602 Gate OpenerMotor Voltage: DC 24VMotor Power: 50WRated Current: 2AActuator Speed: 0.63 in/s (16 mm/s)Max. Actuator Travel: 15.1” (385 mm)Gate Opening/Closing Time: approx. 15 secondsMax. Opening Angle: 90° - 110° depends on the installation modeOperation Range for the Remote Transmitter: 65’ (20 m)Frequency: 433.92MHz, unique code per gate openerMax. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separatelyWorking Temperature: -4°F to 122°F (-20?~ +50?)Sound Level: < 50 dBProtection Class: IP44 - Waterproof and DustproofDimension of the Arm (Actuator): 32.6 x 4.9 x 8.2” (829 x 124 x 208 mm)Dimension of the Control Box: 10.9 x 8.4 x 3.4” (276 x 214 x 87 mm)M12 Remote Control (Asin: B075L4BN21)ERM12 External Receiver (Asin: B075KHPLHD)TC186-R WiFi Smartphone Remote Control with Camera (Asin: B07ZSXPSZZ)TC186 Universal WiFi Smartphone Remote Control with Camera (Asin: B07ZVHM2WL)HLR01 Homelink Remote Control Kit (Asin: B07CWNX1P8)TKP3 Wireless Keypad (Asin: B075K783DS)TC175P Wired Keypad (Asin: B07ZTB33JK)TC173 Wireless Push Button (Asin: B07ZTC75CX)TC147 Wired Push Button (Asin: B07ZTB2TQH)The Vehicle Sensor Exit Wand is NOT compatible with this gate opener.TRF3 Reflection Photocell Sensor (Asin: B07ZTCMWFT)TC102 Photo Eye Beam Sensor (Asin: B07ZTB4VML)JD24VY 24V Warning Light (Asin: B07ZTB326B)The Electric Gate Lock is NOT compatible with this gate opener.TSP30W 30W Solar Panel Charging Kit (Asin: B07ZTBRVXL)TCS3 Solar Charge Controller (Asin: B07ZTC6317)25FT Extension 5-Conductor Cable (Asin: B07WCW6W8T)PKMJ9A Control Panel (Asin: B08CKMYRTH)ALS01 Limit Switch (Asin: B078TBH86G)MK01 Hardware Kit (Asin: B07ZTC94Y7)
