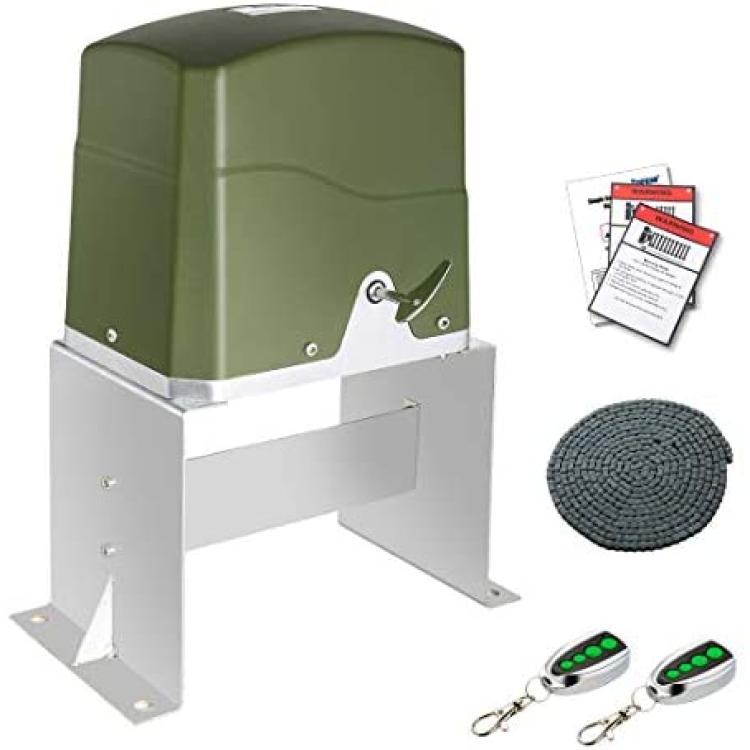

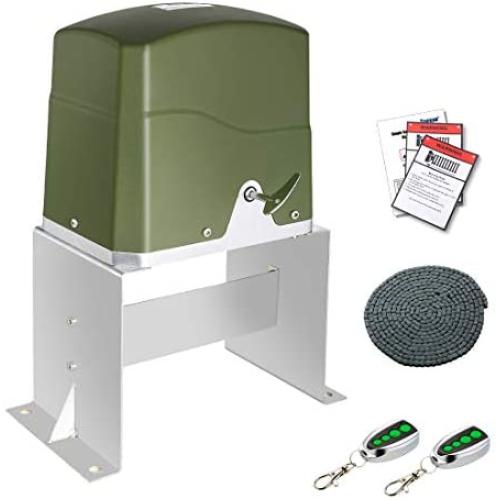

TOPENS CK700 Automatic Sliding Gate Opener Chain Drive Electric Gate Motor for Heavy Driveway Slide Gates Up to 1600 Pounds, Security Gate Operator AC Powered with 20ft Roller Chain and Remote Control

CK700 Gate Opener is ONLY powered by AC 110-120V electricity.The power supply cord is required but NOT included.The power supply cord should be at least 3C × 18AWG (3 × 0.75 mm2). Connect the live wire and neutral wire to the “L” (2) and “N” (1) terminal respectively; and connect the earth wire to “PE”.TOPENS DK1000, DK1000S, DKC1000, DKR/DKC series solar sliding gate openers are recommended if you want to power the gate by batteries and solar system.The “auto-close” function ultimately secures the property after you leave.Our unique feature “midway mode” allows the gate to open only a few feet for the coming vehicles.Stop in case of obstruction during gate opening, and reverse in case of obstruction during gate closing. Adjust the stall force to get your desired open and close obstruction sensitivity. Higher stall force level, lower obstruction sensitivity.The above modules can be adjusted on the smart control panel directly.The intelligent control board enables you to switch the open / close direction easily. Your gate is allowed to open toward left or right.Reliable electromagnetism limit for easy adjustment.Adopting advanced TOPENS code technology, the remote control perfectly prevents unwanted entry.For your gate safety, only TOPENS authorized remotes and wireless accessories are allowed to operate the TOPENS Gate Opener.Operation Range: 65ft. (20m)Max. # of Remote Control Supported: 8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver that is sold separately.Equipped with manual release key in case of power outage or when you lose your remote.Product Model: CK700 Gate OpenerMotor Voltage: AC 120VMotor Power: 2/5 HP (300W)Max. Gate Weight: 1600lbs. (700kg)Max. Gate Length: 40ft. (12m)Gate Moving Speed: 6 in/s (15 cm/s)Gate Opening / Closing Time: approx. 20-60 seconds depends on the gate lengthProtection Class: IP44 - Waterproof and DustproofWorking Temperature: 0°F to 120°F (-20?~+50?)Sound Level: < 50 dBOverall Dimension: 12.9 x 8.7 x 18.1” (327 x 222 x 460 mm)Package Dimension: 14.2 x 12.6 x 14.6” (36 x 32 x 37 cm)Shipping Weight: 39.2lbs (17.8kg)1 x Gate Opener1 x 20ft. Roller Chain2 x M12 Remote Control Transmitter1 x Base Plate1 x Emergency Release Key1 x Full Set of Required Installation Hardware1 x Magnet Assembly (N pole & S pole)2 x Warning Sign1 x Detailed Installation ManualThe roller chain has gone through strict process for high quality, allowing for the optimum toughness of all component parts, as well as increasing metal fatigue resistance and pre-lubricated for wear resistance.The package includes 20ft. roller chain. The length of the chain is adjustable.The specification of the chain is #428 (08B). Extra TOPENS 20 Feet Roller Chain is available online.Keep the chain from any debris to ensure the smooth operation of the motor. Oil the chain periodically for ultimate performance.M12 Remote Control: up to 8 remotes can be programmed to the gate opener directlyERM12 External Receiver: allows up to 250 remotes to be programed with the gate openerTC186-R WiFi Smartphone Remote Control with Camera: monitor the gate status, and control the gate opener with your cellphoneTC186 Universal WiFi Smartphone Remote Control with Camera: monitor the working status of the gate / wired system, and control the gate opener / system with your cellphoneTC188 Universal Keypad: open the gate with a user defined password, use this keypad wirelessly, or wire it to the gate opener according to your needsTKP3 Wireless Keypad: open the gate with a user defined passwordTC175P Wired Keypad: open the gate with a user defined password / ID cardTC173 Wireless Push Button: open and close the gate simply by pressing the wireless buttonTC147 Wired Push Button: open and close the gate simply by pressing the wired button, not waterproofTC148 Waterproof Wired Push Button: open and close the gate simply by pressing the wired button, fully waterproofHLR01 Homelink Remote Control Kit: link the gate opener with your cars HomeLink systemThe Vehicle Sensor Exit Wand is NOT compatible with this gate opener.TRF3 Reflection Photocell Sensor: prevent the gate from closing when obstructed, add security with simple wire connectionTC102 Photo Eye Beam Sensor: prevent the gate from closing when obstructed, add securityJD110VY AC 110V Warning Light: flashing when the gate is moving, improving your gate safetyACPYMJ5A Control PanelPYMJ-CKG Limit SwitchLT08B 20 Feet Roller ChainWith easy DIY installation and simple wire connections, even a novice can assemble the gate opener quickly.Built-in the stable & powerful motor, the gate operator easily pulls the gate, freeing your hands.Adopting advanced TOPENS code technology, the gate motor brings the most reliable protection from all troubles out of the gate.
