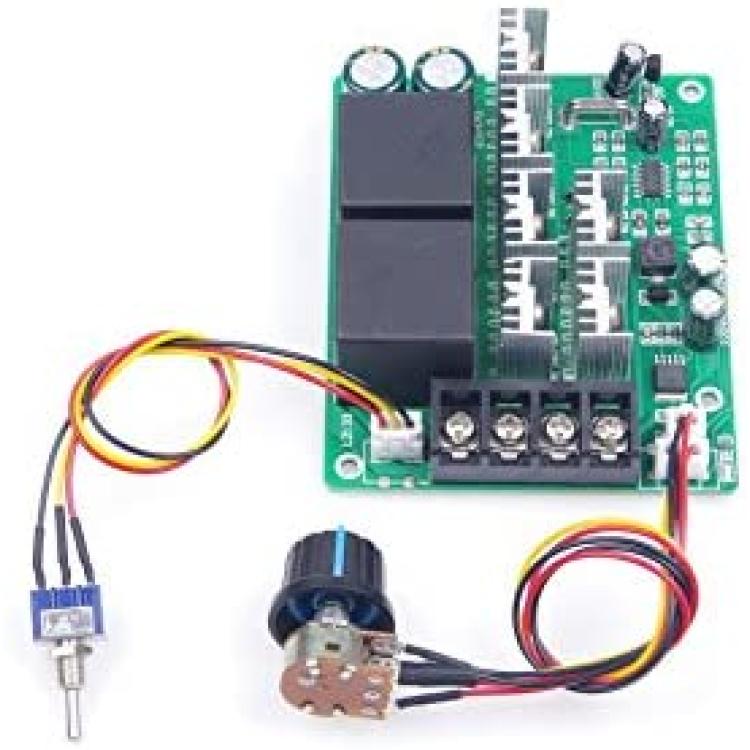

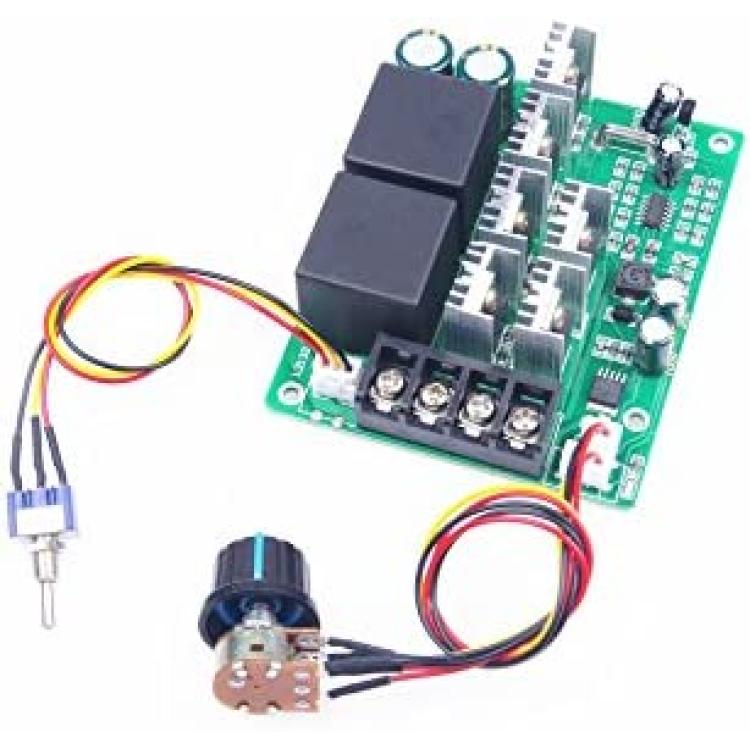

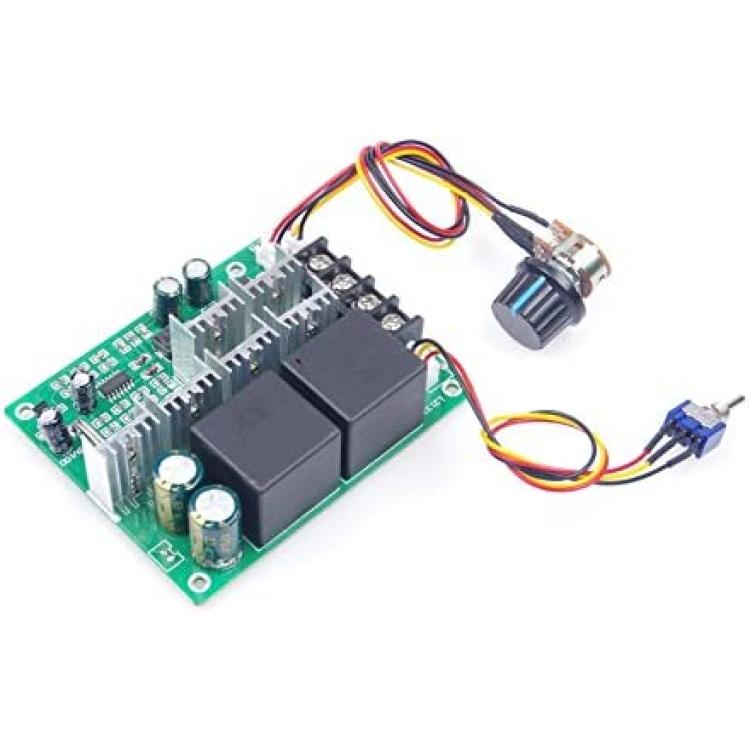

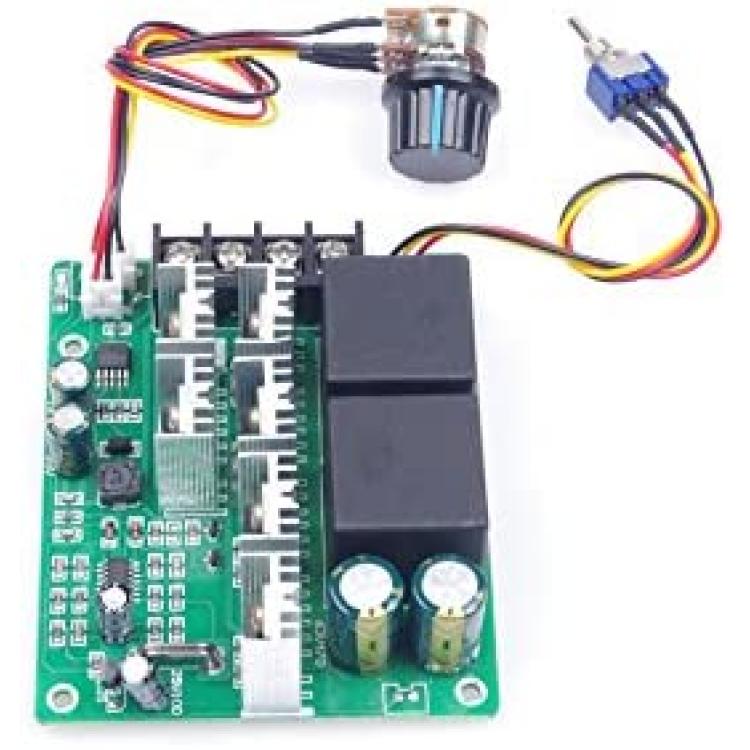

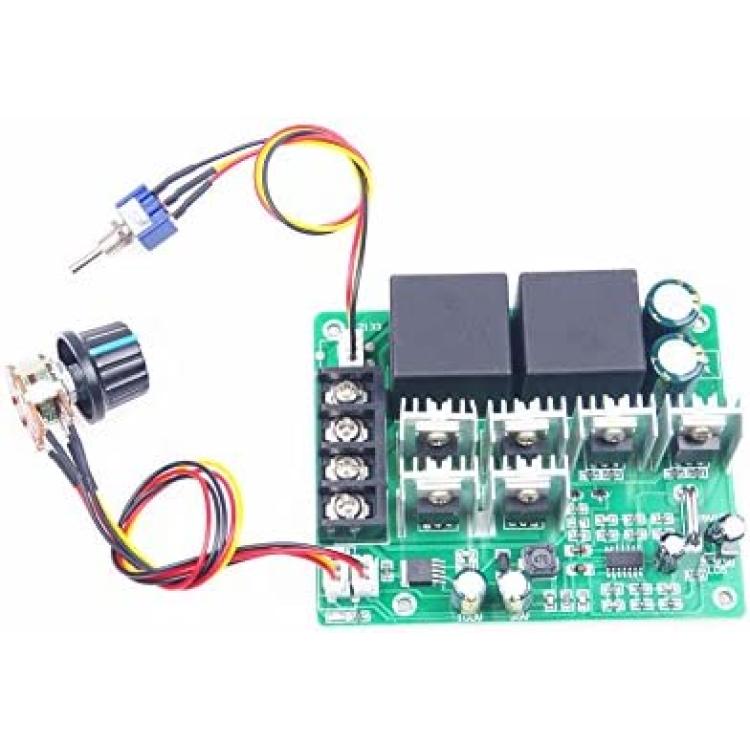

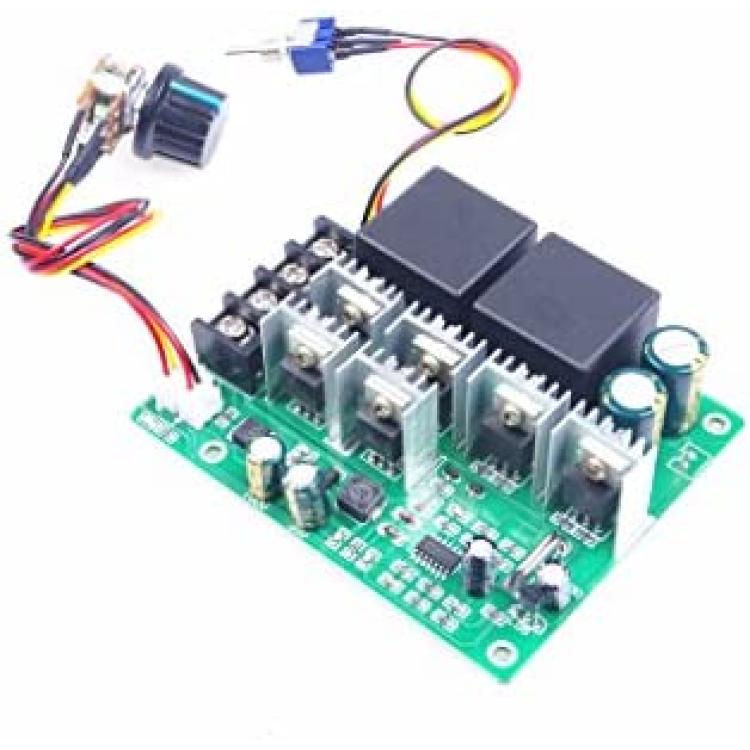

KNACRO DC Motor Speed Governor DC 12V 24V 36V (10-55V) 40A Forward/Stop/Reverse 2000W Max 0-100% Speed Range Pre-wired Models
About this product
*High Power Forward / Stop / Reverse motor governor.
*Input voltage: DC10-55V.
*Continuous Current: within 40A.
*With high current protection, Motor block protection ，Overload protection.
*Speed range: 0-100%.
Description
Input voltage: DC10-55V.
Input current: required greater than the motor operating current.
Output current: load decision.
Continuous current: within 40A.
Maximum power: 2000W (power = voltage * current).
Knob opening: 7mm.
Speed type: Adjustable current.
Speed control mode: ON \ OFF linear potentiometer 270 degrees.
Speed range: 0-100%.
Operating frequency: 15KHZ.
Forward and Reverse: support.
Size: 100*81* 28mm(L*W*H).
Product weight: 182g.
NOTE:
1. Input must distinguish between positive and negative.
2. Do not input AC110V.
2. The input voltage should be equal to the rated voltage of the motor. For example, the motor is DC 12V, input DC 12V; the motor DC 36V, input DC 36V.
Package Included:
1*DC Motor Speed Governor Pre-wired Models
