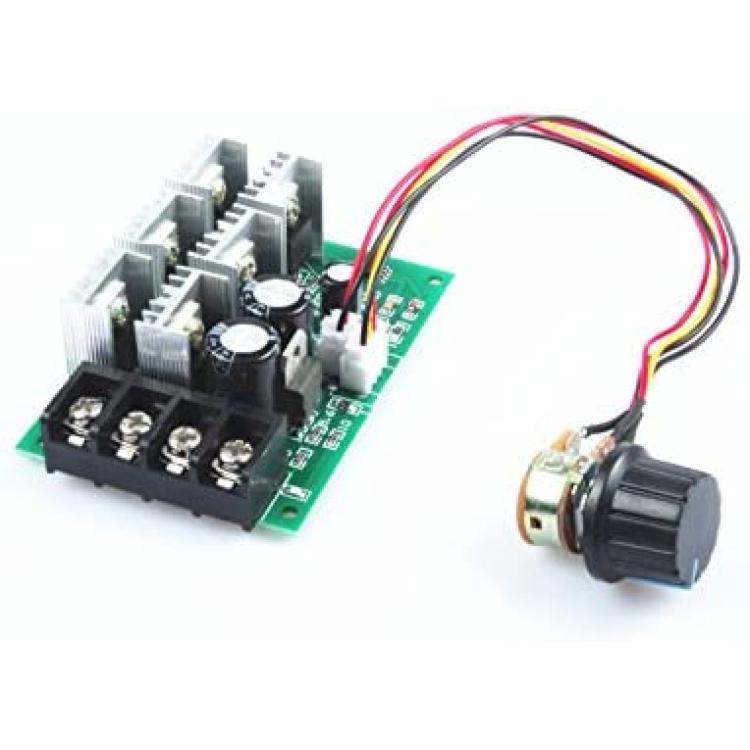

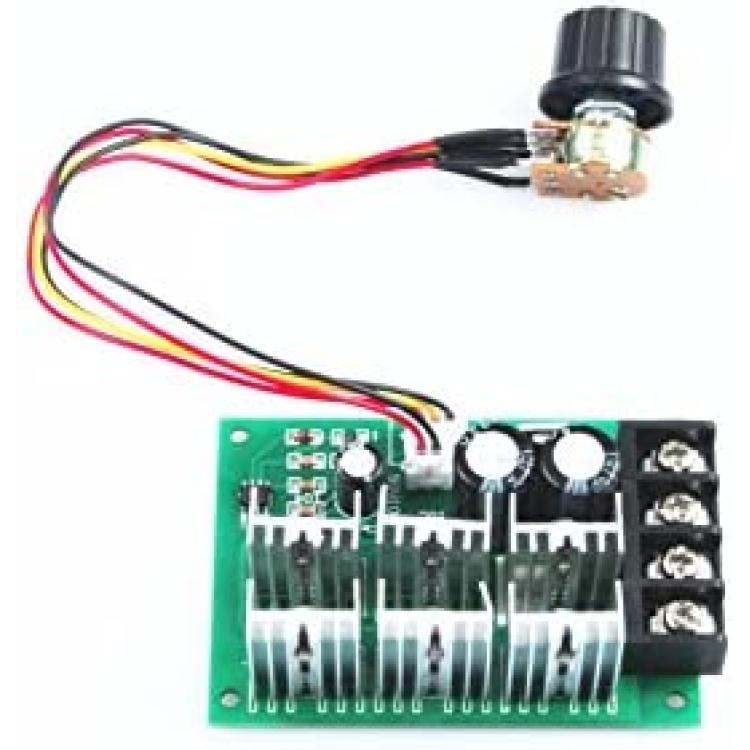

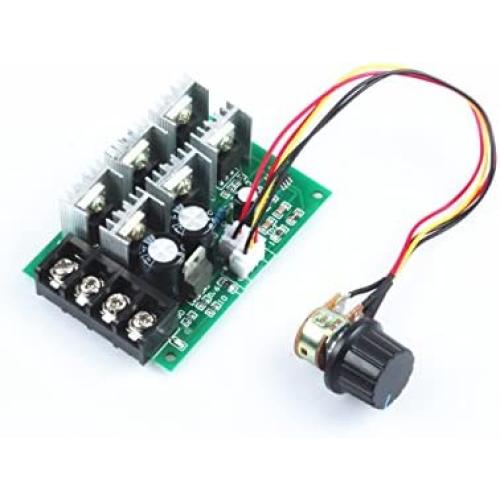

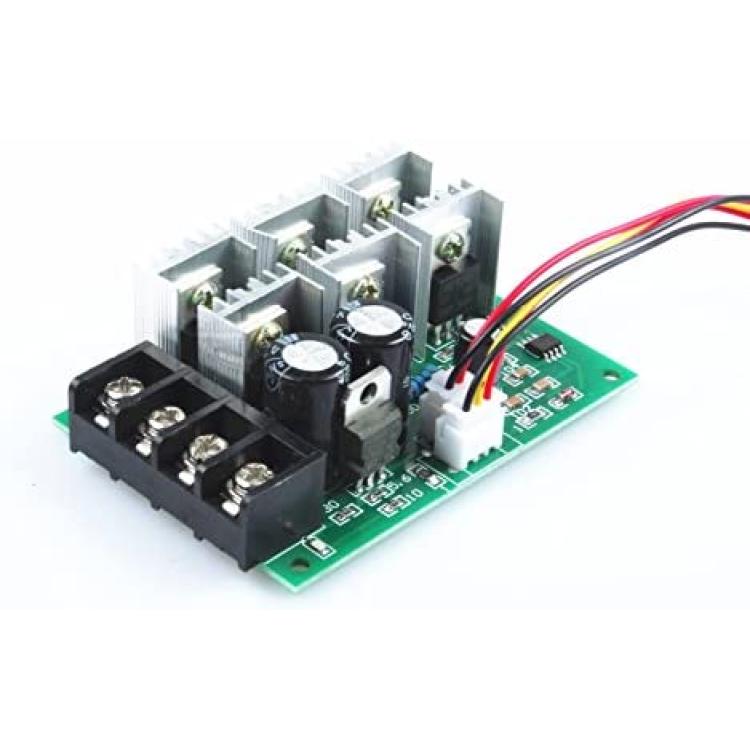

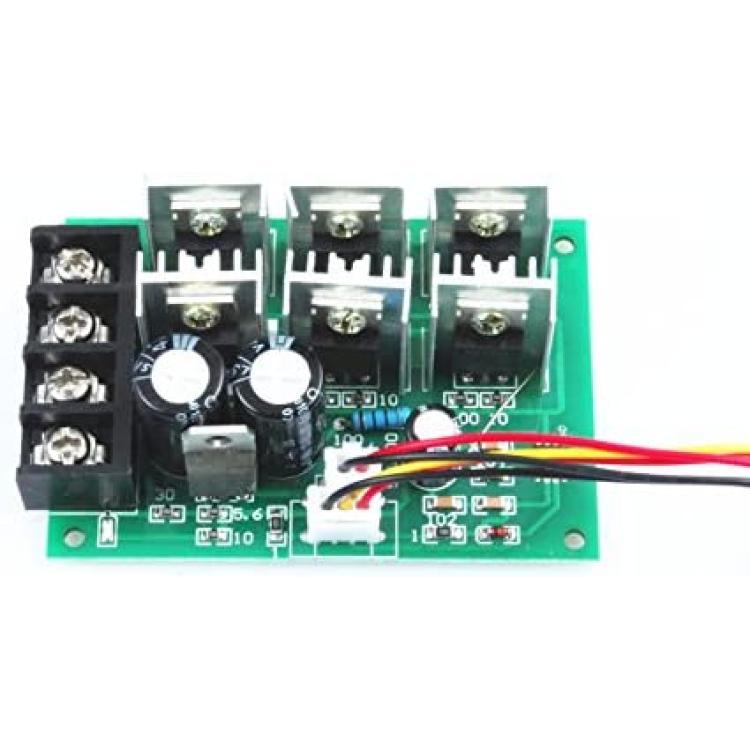

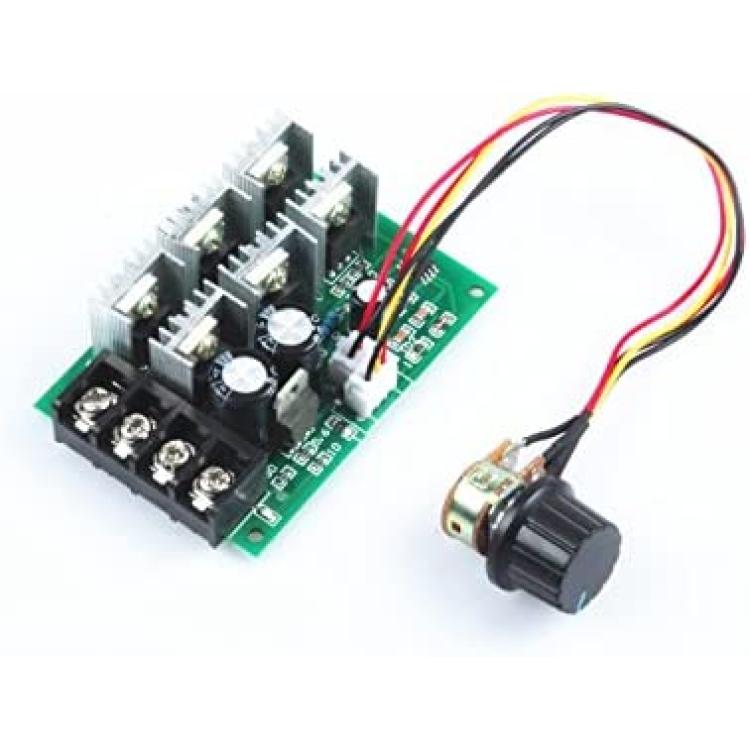

KNACRO PWM DC Motor Speed Controller 40A 12V 24V 36V 48V (9V-55V) Linear Motor Drive Electronics Switch Module Maximum Power 2000W

KNACRO PWM DC Motor Speed Controller 40A 12V 24V 36V 48V (9V-55V) Linear Motor Drive Electronics Switch Module Maximum Power 2000W

Brand: KNACRO
Product Code: MM1683
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Input voltage: DC 9-55V.Output voltage: Load Linear.

*Input Current: require large than the motor operating current.Output Current: determine load size.

*Continuous current: 30A within.Maximum power: 2000W .

*Quiescent Current: 0.01mA.Speed type: modulated current.Speed mode: ON/OFF linear potentiometer 270 degrees.

*Speed range: 0-100%.Operating frequency: 25KHZ.Connection Type: Barrier Terminal Blocks.

Description

Input voltage: DC 9-55V.Output voltage: Load Linear.
Input Current: require large than the motor operating current.Output Current: determine load size.
Continuous current: 30A within.Maximum power: 2000W .
Quiescent Current: 0.01mA.Speed type: modulated current.Speed mode: ON/OFF linear potentiometer 270 degrees.
Speed range: 0-100%.Operating frequency: 25KHZ.Connection Type: Barrier Terminal Blocks.
Input voltage: DC9-55V.
Output voltage: Load Linear.
Input Current: require large than the motor operating current.
Output Current: determine load size.
Continuous current: 30A within.
Maximum power: 2000W .
Quiescent Current: 0.01mA.
Speed type: modulated current.

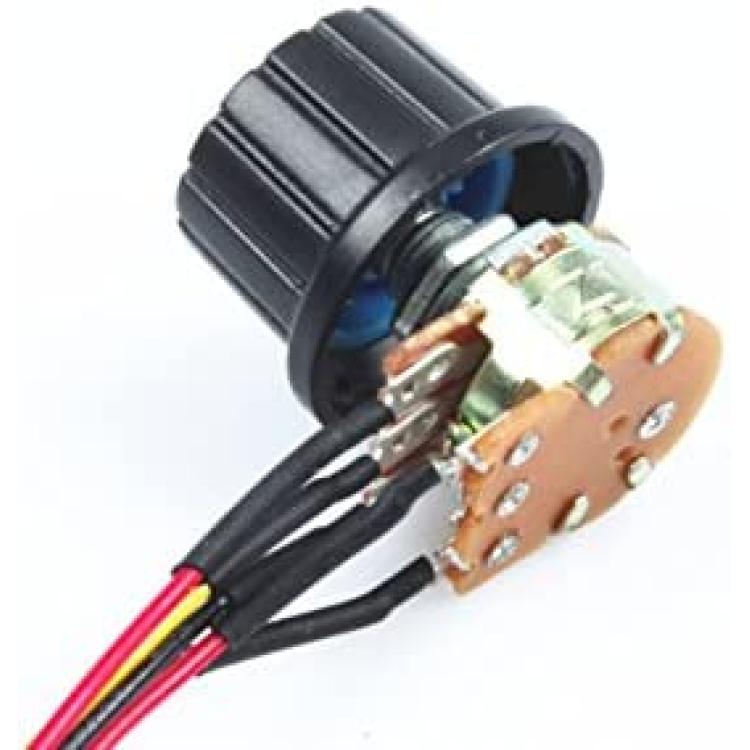

Speed mode: ON/OFF linear potentiometer 270 degrees.
Speed range: 0-100%.
Operating frequency: 25KHZ.

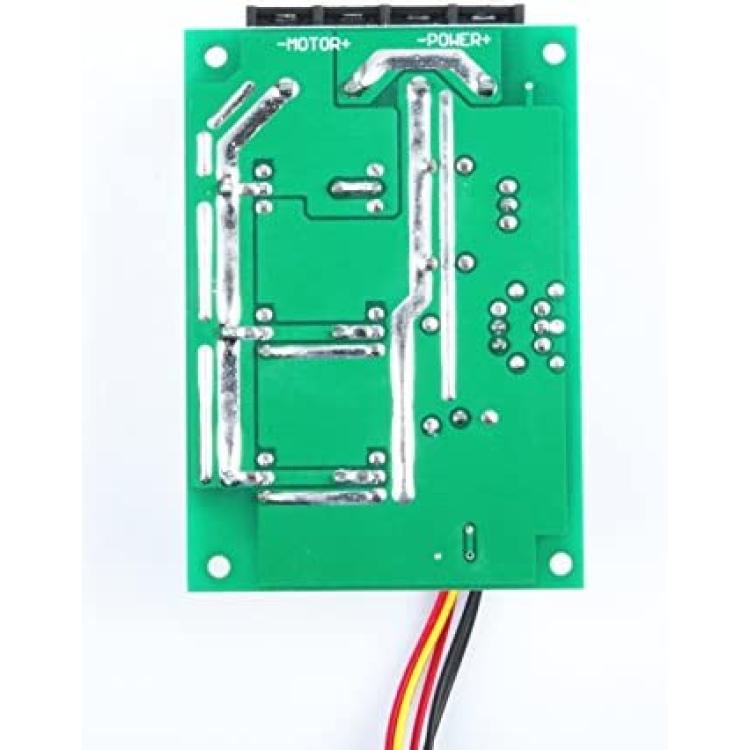

Connection Type: Barrier Terminal Blocks.
Size: 83 * 56 * 30mm(L*W*H).
Product Weight: 90g.
