KNACRO DC 9-60V PWM Motor Controller 10A 600W 12V / 24V / 36V / 48V / 60V DC Motor Controller Maximum Power 600W
About this product
*Input voltage: DC9-60V.Output voltage: Load Linear.
*Input Current: require large than the motor operating current.Output Current: determine load size.
*Sustained current: 10A within.Maximum power: 600W.Quiescent Current: 0.01ma.
*Speed type: modulated current.Speed mode: linear potentiometer 270 degrees.Speed range: 0-100%.
*Operating frequency: 25KHZ.Reverse polarity protection.
Description
Input voltage: DC9-60V.Output voltage: Load Linear.
Input Current: require large than the motor operating current.Output Current: determine load size.
Sustained current: 10A within.Maximum power: 600W.Quiescent Current: 0.01ma.
Speed type: modulated current.Speed mode: linear potentiometer 270 degrees.Speed range: 0-100%.
Operating frequency: 25KHZ.Reverse polarity protection.
Input voltage: DC9-60V.
Output voltage: Load Linear.
Input Current: require large than the motor operating current.
Output Current: determine load size.
Sustained current: 10A within.
Maximum power: 600W.
Quiescent Current: 0.01ma.
Speed type: modulated current.

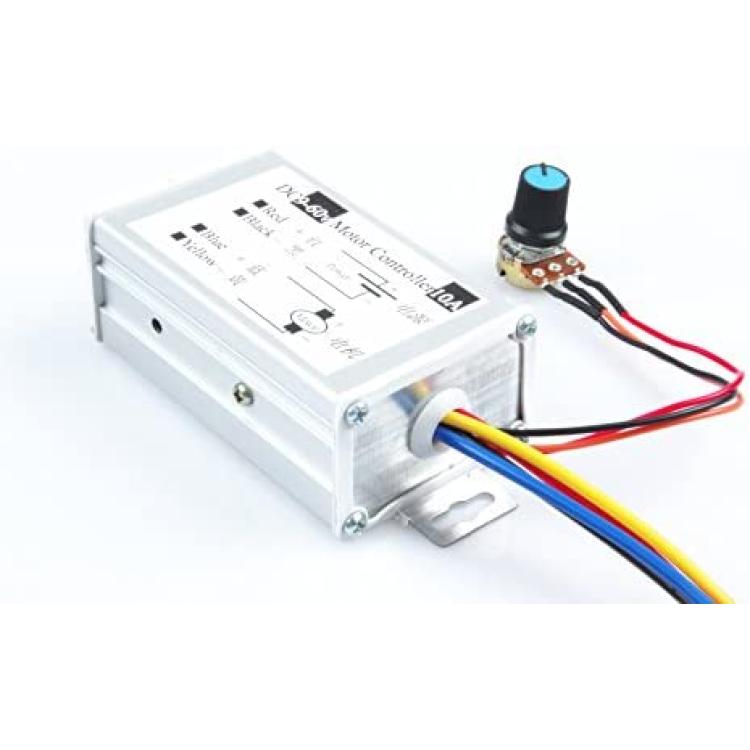

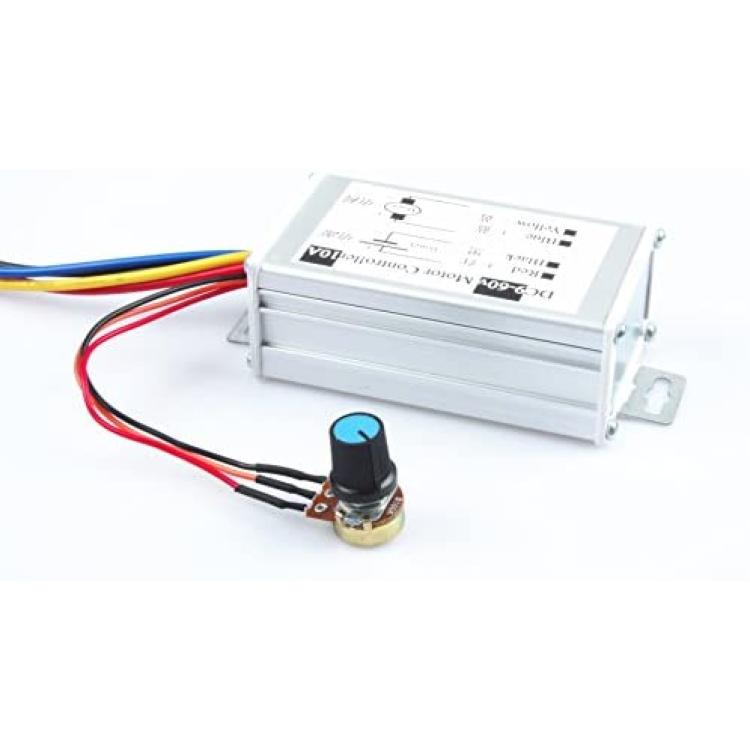

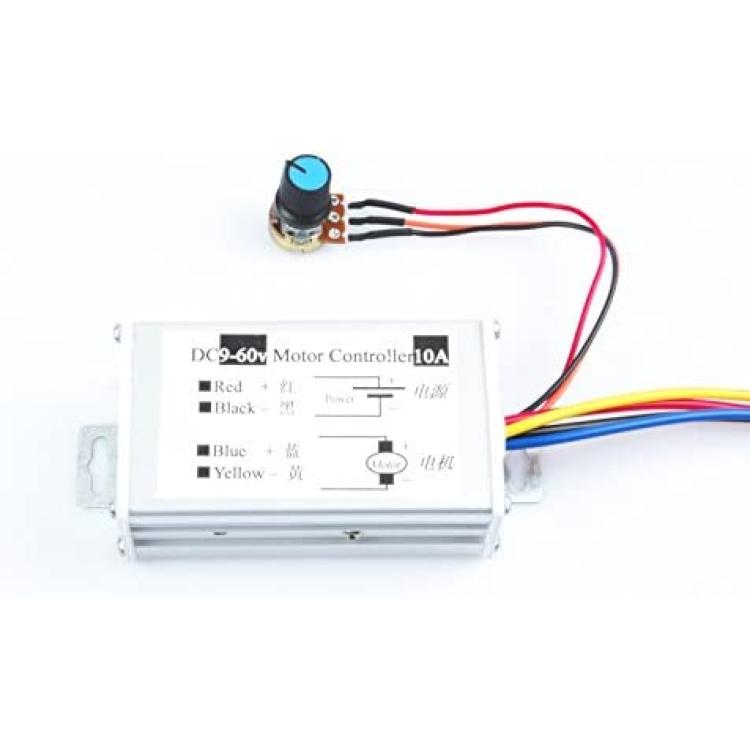

Speed mode: linear potentiometer 270 degrees.
Speed range: 0-100%.
Operating frequency: 25KHZ.
Reverse polarity protection.
Size: 92 * 58 * 36mm(L*W*H).
Weight: 125g.
