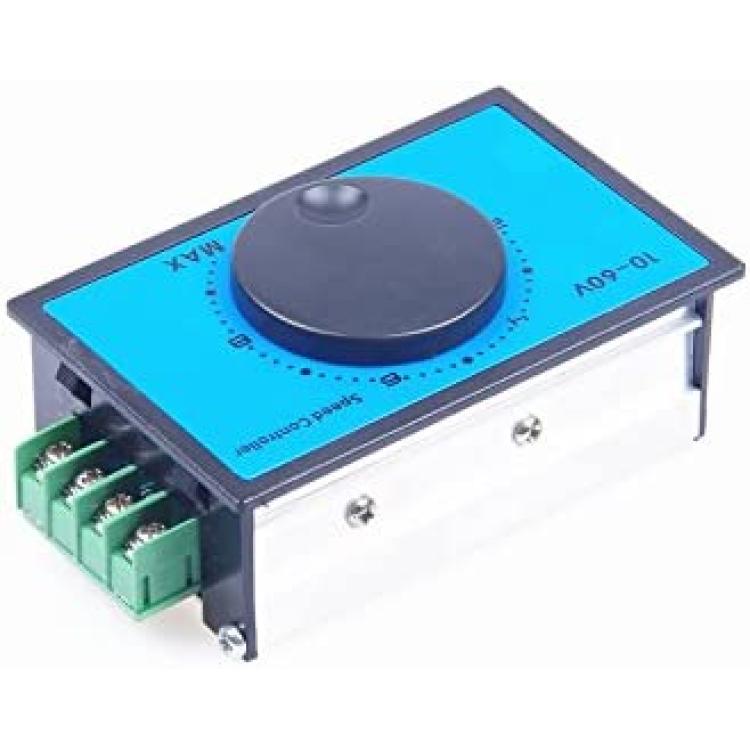

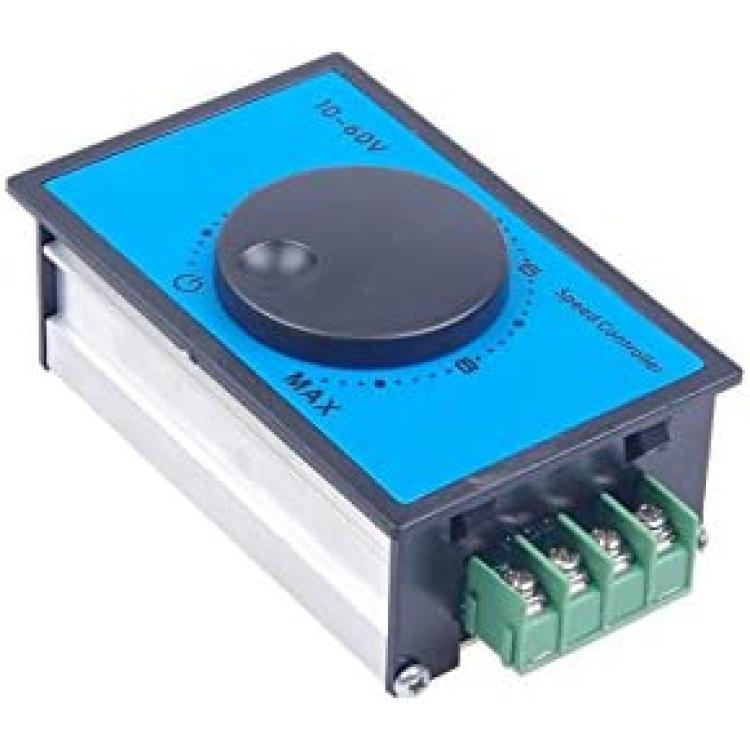

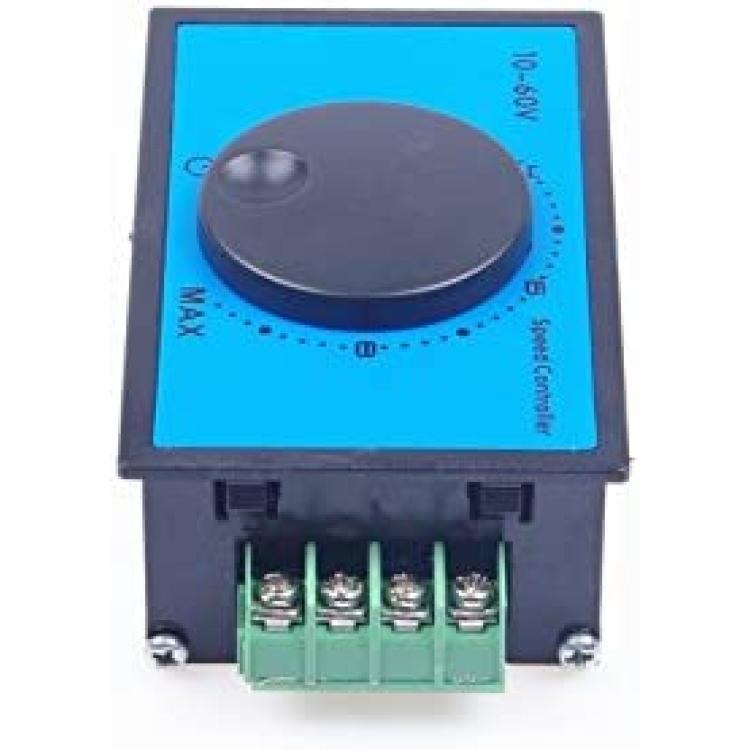

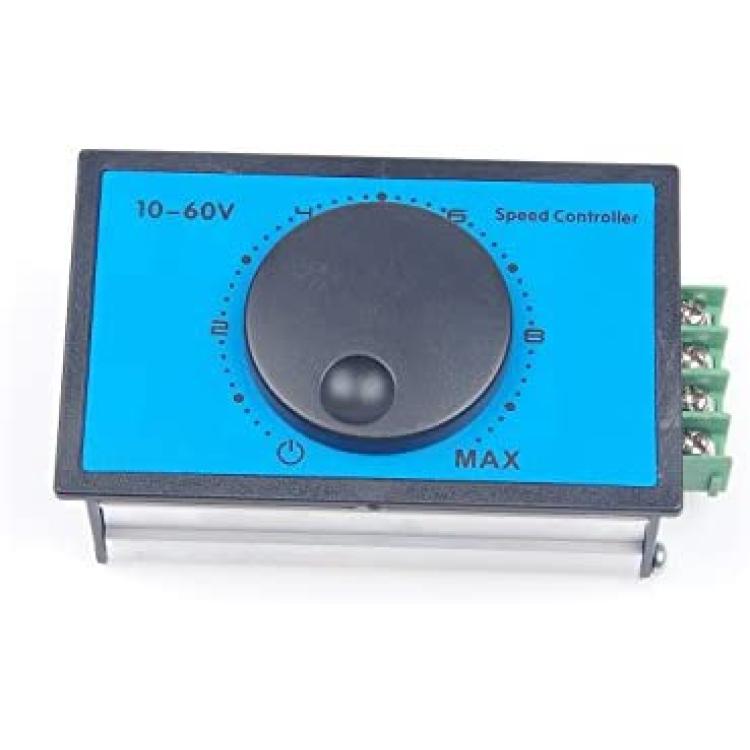

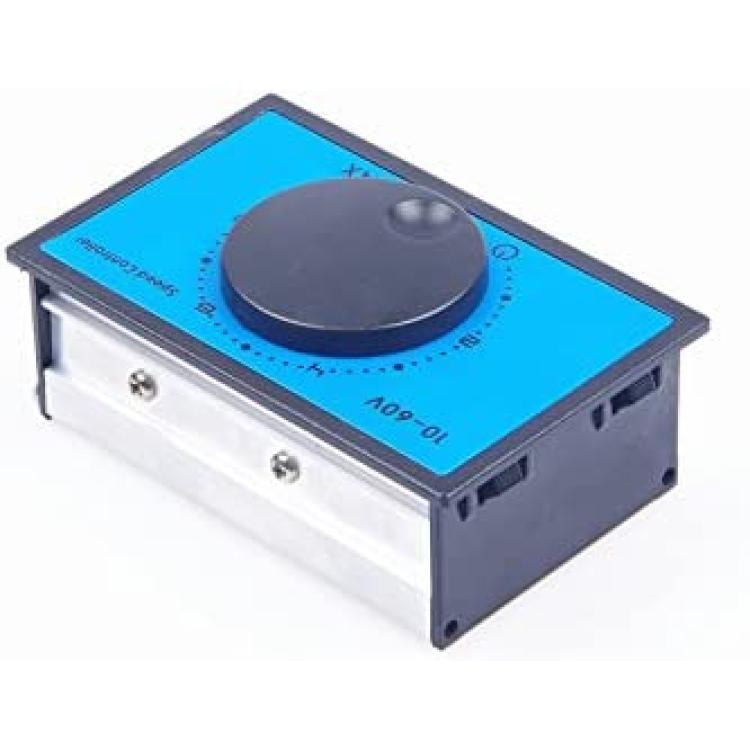

KNACRO DC Brush Motor Speed Controller DC 12V 24V 36V 48V 60V (DC10-60V) 20A Soft-starting 0-100% Speed Range
About this product
*High Power Soft-starting motor governor.
*Input voltage: DC10-60V.
*Continuous Current: within 20A.
*With high current protection, Motor block protection ,Soft-starting protection.
*Speed range: 0-100%.
Description
Input voltage: DC10-60V.
Input current: required greater than the motor operating current.
Output current: load decision.
Continuous current: within 20A.
Maximum power: 1000W (power = voltage * current).
Knob opening: 7mm.
Speed type: Adjustable current.
Speed control mode: ON \ OFF linear potentiometer 270 degrees.
Speed range: 0-100%.
Operating frequency: 15KHZ.
Size: 96*61* 34mm(L*W*H).
Product weight: 106g.
NOTE:
1. Input must distinguish between positive and negative.
2. Do not input AC110V.
2. The input voltage should be equal to the rated voltage of the motor. For example, the motor is DC 12V, input DC 12V; the motor DC 36V, input DC 36V.
Package Included:
1*DC Brush Motor Speed Controller
