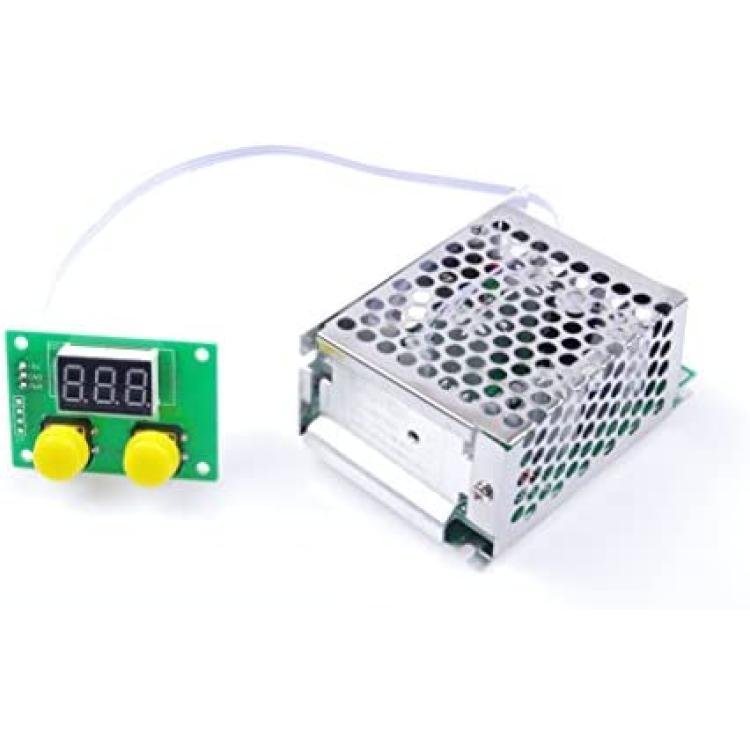

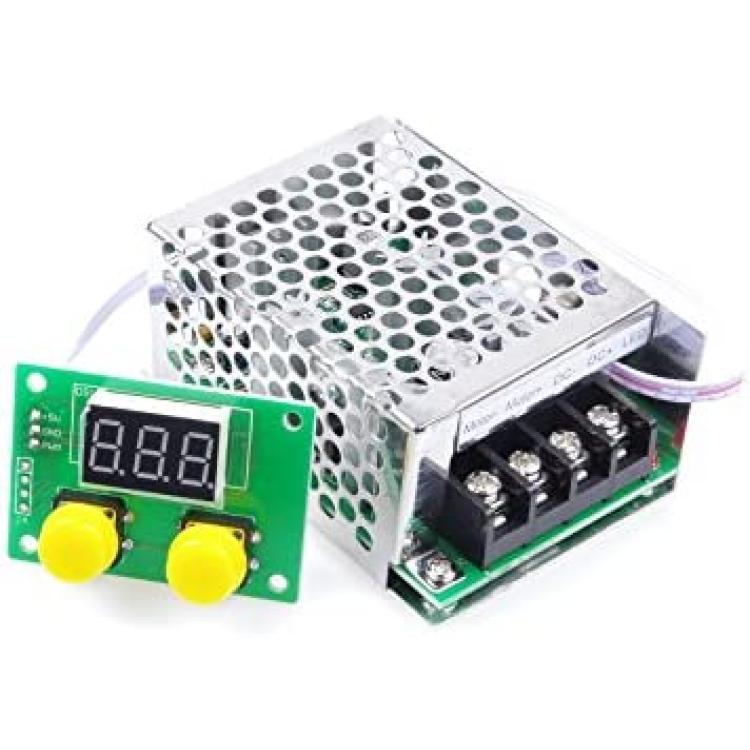

KNACRO PWM DC Motor Governor 12V 24V 36V DC 9-40V 12A Digital Display Percentage Stepless Speed Switch
About this product
*Input voltage: DC 9-40V;
*Load voltage: DC 9-40V;
*Load current: 0-12A;
*Control range: 0-100%;
*This product is widely used in machine tool control, industrial control, agriculture, water conservancy equipment control, home equipment control.
Description
Input voltage: DC9-40V;
Load voltage: DC9-40V;
Load current: 0-12A;
Control range: 0-100%;
Dimensions: 86x58x38mm (LWH)
Control easy to use, easy to install.
No need debugging, Connect the power to use.
Instructions for use:

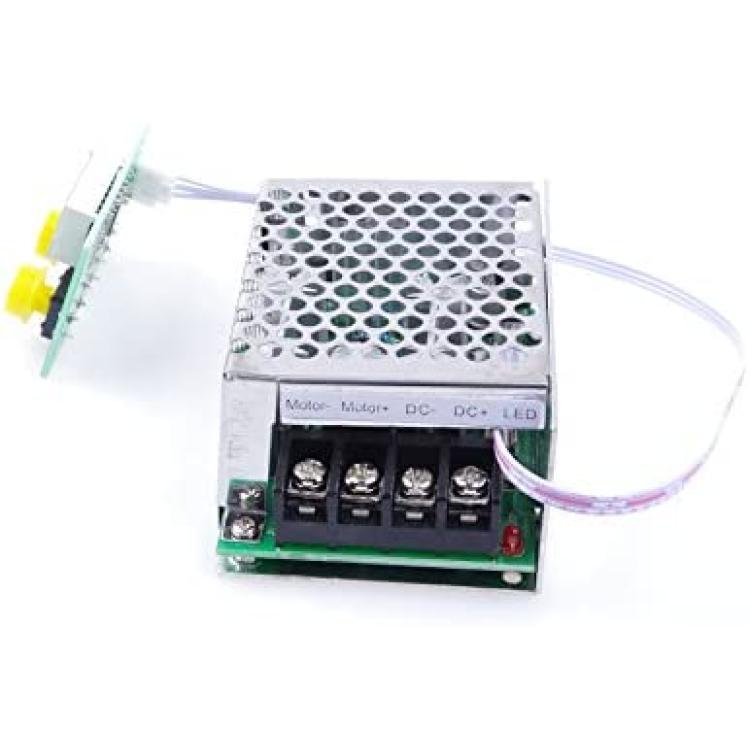

1, the DC brush motor and PWM digital display speed controller MOTOR +/- connected. Connect DC power to DC + / DC-.
2, Make sure that the input DC voltage and current are matched with the motor, that is, the input DC voltage should be the same as the load. The output current should not be less than the maximum working current of the load.
3, turn on the power.

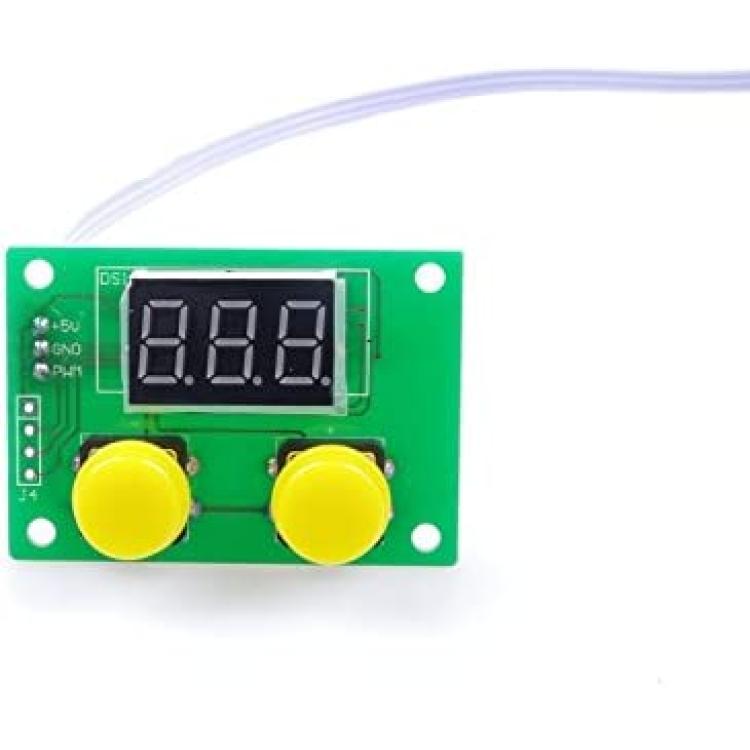

In this case, the digital display shows "000", indicating that the PWM output is 0%. Then press and hold the "+" key. The digital value will increase from "000", and the motor speed will also be accelerated.
Hold down the "-" key, the number will be reduced, the motor speed will slow down.
If you press and hold "+/-" key, the display number will continuous increase or decrease effect, the motor speed will rapidly increase or decrease.
Package Included:
1xPWM DC Motor Governor
