DDCSV3.1 Offline Controller 4 Axis 500kHz CNC Offline Motion Control and 100PPR MPG Hand Wheel with Emergency Stop Switch for Stepper Motor Servo Motor

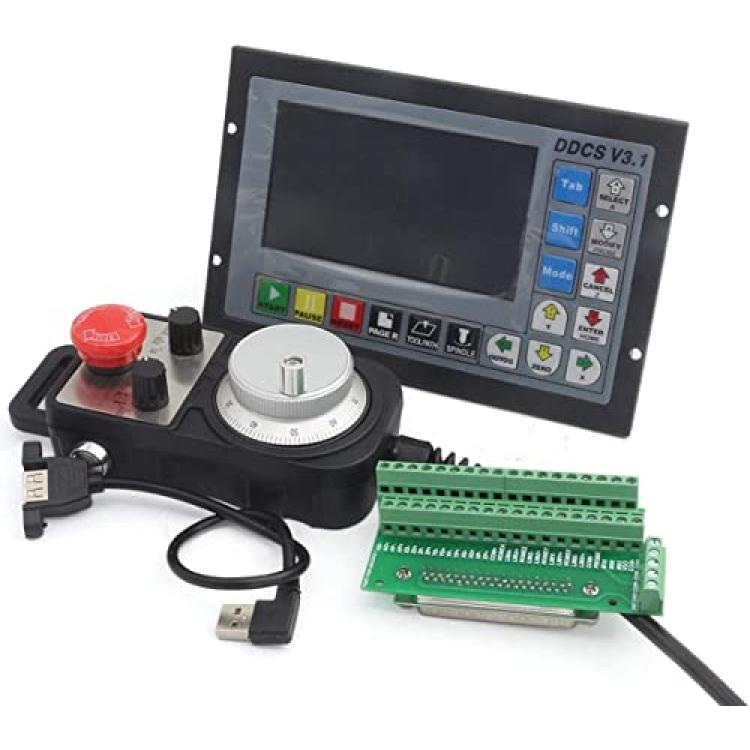

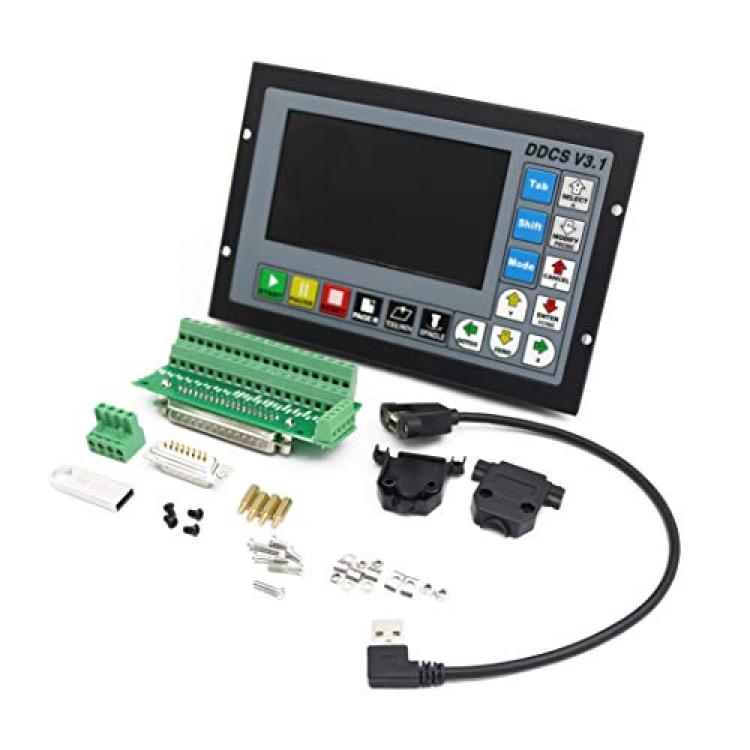

Package includes:
1 x 100PPR trailer hand wheel mpg;1 x 4-axis CNC offline motion controller DDCSV3.1;1 x 4GB USB Flash Drive;1 x USB extension cable.User manual will be sent via Amazon email.

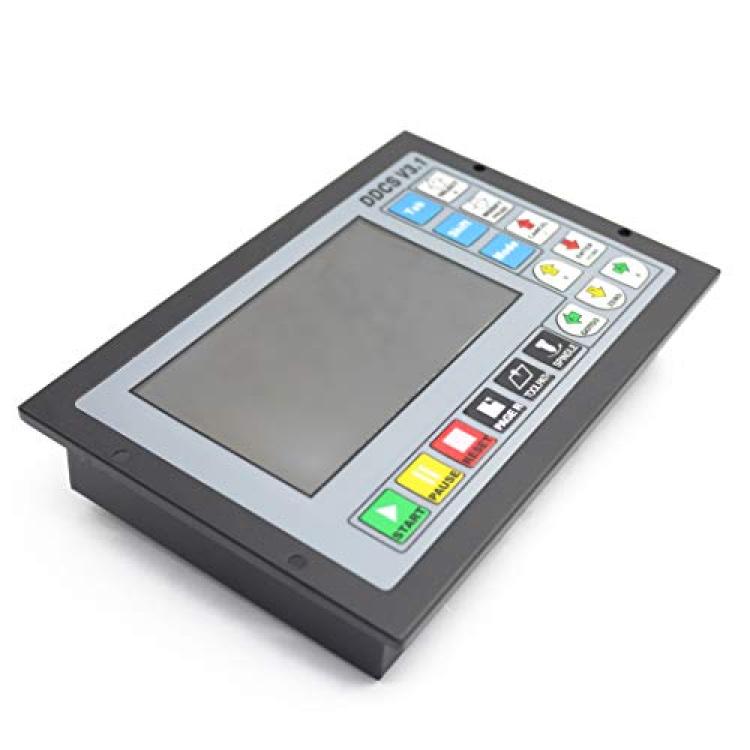

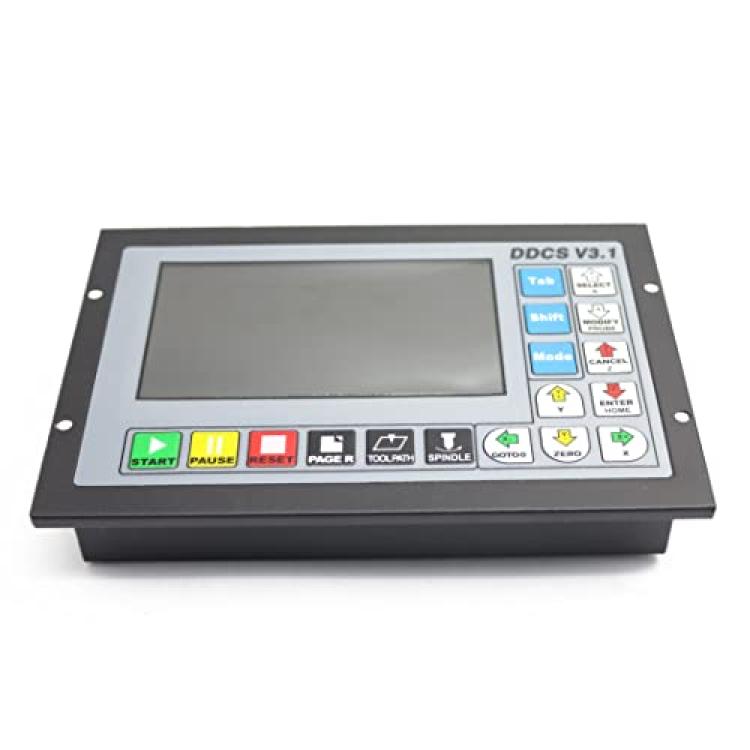

Controller Specification:
Adopts ARM + FPGA design framework.
ARM controls The human computer interface and code analysis as well as the FPGA provide the underlying algorithms and generate the control pulse.
The internal operating system is based on Linux.

Can be used for CNC machines. Lathes, mills, pick & place and mills etc. and work as a standalone system without a computer. Ensures high precision, accuracy and reliability.
Support the operation of the quick indication of the running position.
Support for recovery after a power failure. Data is saved automatically.
Only supports NPN type switches.
The main control equipment is a 24V power supply. The current capacity must not be below 0.5A..
Supports the USB flash drive to read the G code, and the size of the G code file is not required.
Mode:
3 types of test modes: fixed position of the tool sensor, floating position of the tool sensor, rectangular block sensor
Improved software, added many parameters, optimal design and algorithm.

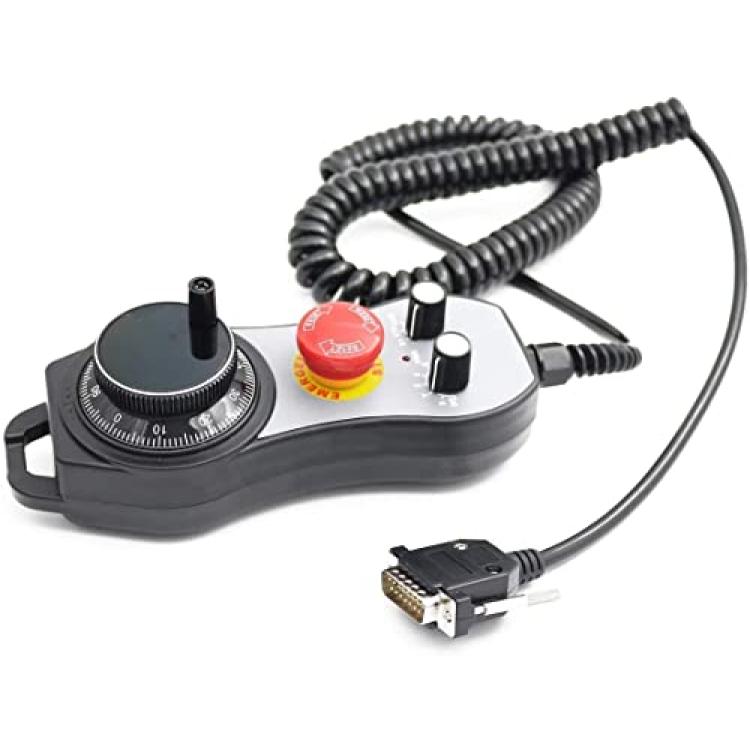

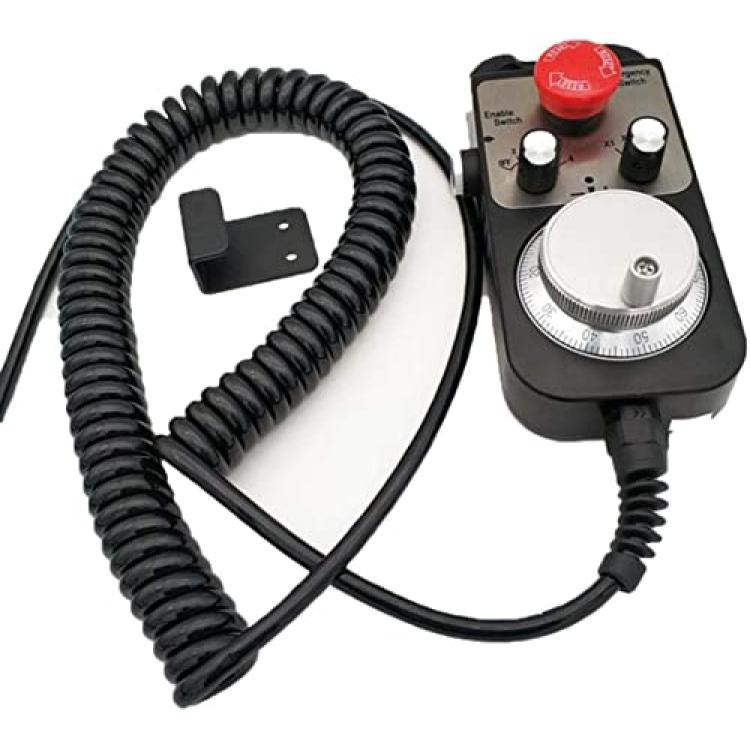

Hand wheel specification:
CNC system and bearing control of various mechanical devices.
Metal code disc, high precision, good texture.
Resolution: 100PPR
Supply voltage: DC5V +/- 5%.
Supply voltage: DC5V +/- 5%.
Supply current: ?80 mA.
Output voltage: ?2.5 V and ?0.4 V.
Output current: <40 mA.
Drop / rise time: ?5 ns (type).
Switch: X1, X10, X100
Axis switch: OFF, X, Y, Z, 4
Response frequency: 0-10 kHz.
