DT02 20M Universal Wireless CNC Tool Setting Gauge Touch Plate Automatic Tool Setting Z-Axis Probe Presetter Controller for Mach3,Weihong,NCStudio etc

DT02 20M Universal Wireless CNC Tool Setting Gauge Touch Plate Automatic Tool Setting Z-Axis Probe Presetter Controller for Mach3,Weihong,NCStudio etc

Name: DT02 20M Universal Wireless CNC Tool Setting Gauge Touch Plate Automatic Tool Setting Z-Axis Probe Presetter Controller for Mach3,Weihong,NCStudio etc
Brand: ‎Changzhou Rattm Motor Co.,Ltd
SKU: MM25155
Availability: InStock

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM25155
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

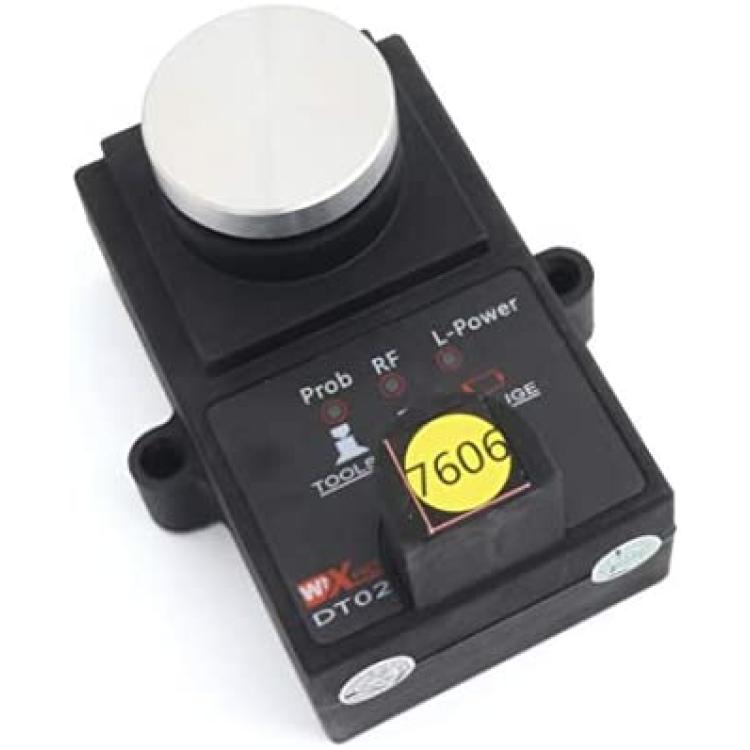

*Model:DT02

*DT02 CNC tool setting is universal, can work with many CNC systems, Applicable to Mach2,Mach3 etc.

*Wireless distance: 20 meter;Low-power wireless tool setting instrument, practical for various CNC machining centers.

*Probe precision: 0.01 mm;The receiver Working voltage: 5~24V DC

*Install the 2PCS AAA batteries to the terminal device. Open the the battery door->install the 2pcs AAA,our parcel not include batteries.

Description

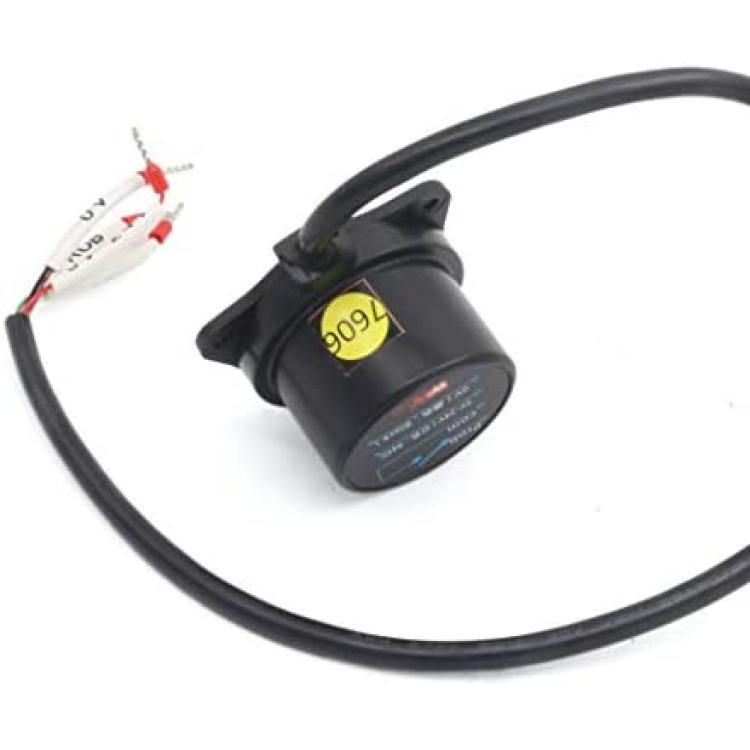

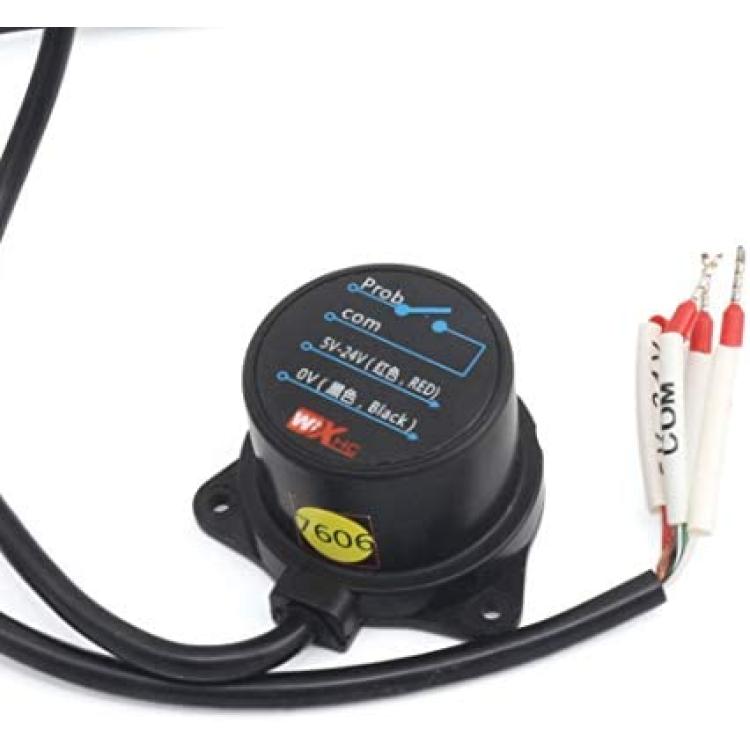

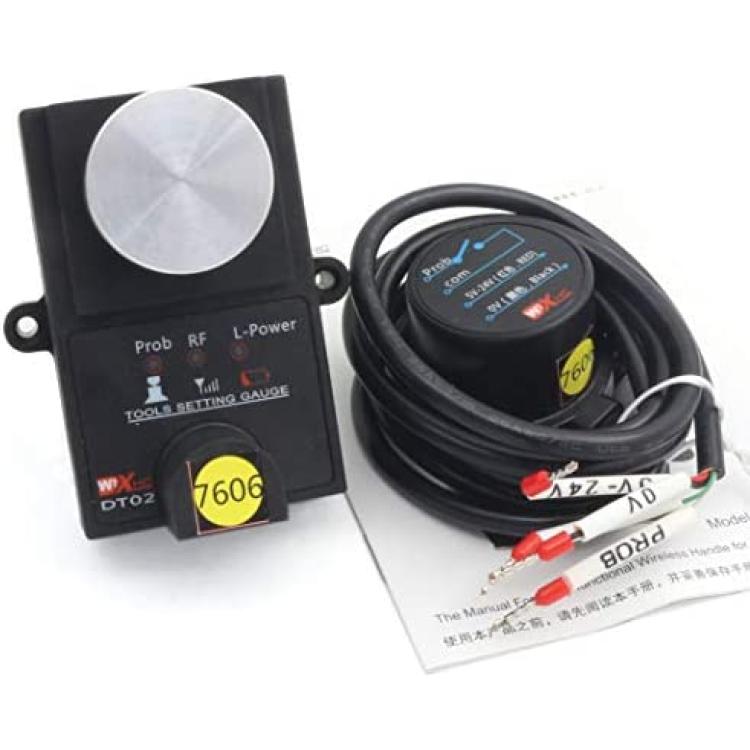

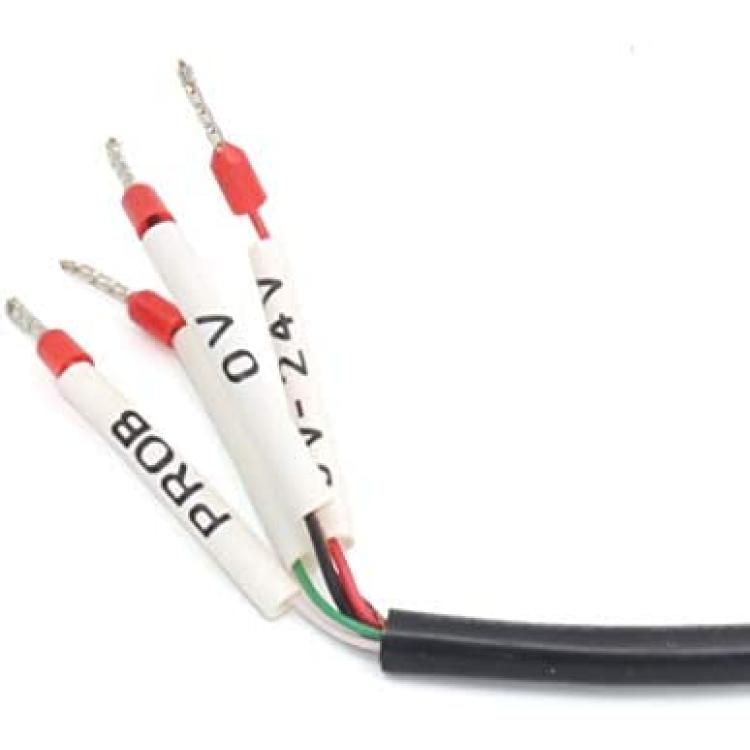

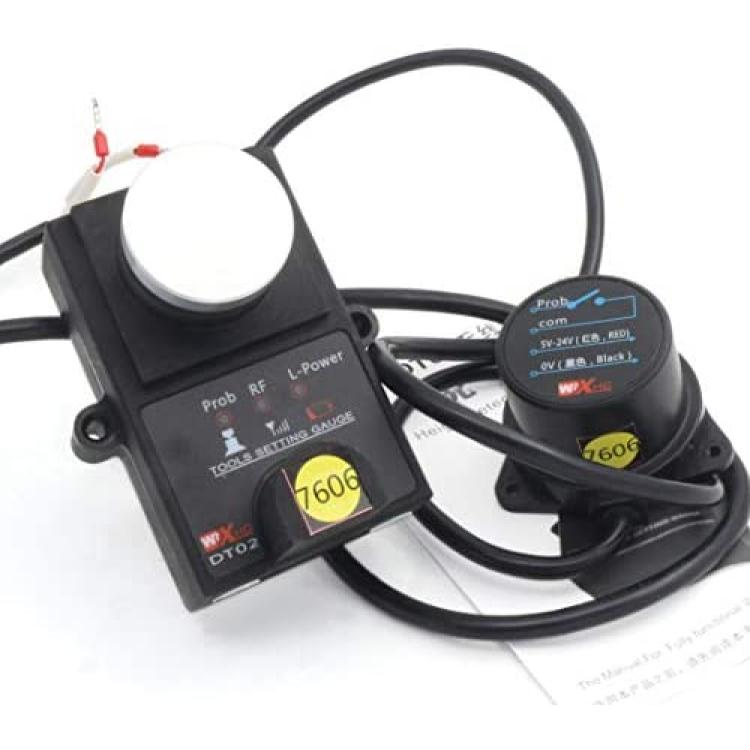

1 x DT02 Wireless Tool Setting Gauge1 x Receiver1 x User manualWorking voltage: 5~24V DC;Rated current<20MA;Wireless distance: 20 meter;Cable: 1.5 meterInternal relay output: Support 250V/50mA load;normally open;Knife trigger, Relay is closed.Working voltage: 2.4V~3.6V DC (use 2 AAA batteries);Working current: Rated current<20uA;Wireless distance: 20 meter;Probe precision: 0.01 mmProb: Output of internal relay in the receiver. When the trigger is received, the receiver turned on the internal relay immediately, then Probe and COM link together.COM: Output of internal relay in the receiver. When the trigger is received, the receiver turned on the internal relay immediately, then Probe and COM link together.

Tags: CNC Tool Setter, Wireless Tool Setting Gauge, Touch Plate Probe, Automatic Z-Axis Presetter, Mach3 Controller, Weihong CNC, NCStudio, Probe Precision, Wireless CNC, Tool Setting System
