SmartGen MGC320 Generator Automatic Mains Failure controller (AMF)

MGC300 Series Genset Controller is applicable for single unit automation control to realize auto start of single unit and AMF. The controller integrates digitalization with intelligence and applies LCD graphic display, which is simple for operation and reliable for running.

MGC300 Series Genset Controller applies 32-bit micro-processor technology, realizing precise measuring for various parameters, set-value adjusting, and timing, and limit value setting functions etc. A majority of parameters can be adjusted from the front panel, and all parameters can be configured by RS485 on PC. It has compact structure, simple wiring, high reliability, which can be used for all types of genset automation system.

MGC300 Series Genset Controller includes true low power consumption (power off) and feign low power consumption (awakening, but screen light not on, stop indicator flashing, not do any action).

PERFORMANCE AND CHARACTERS:

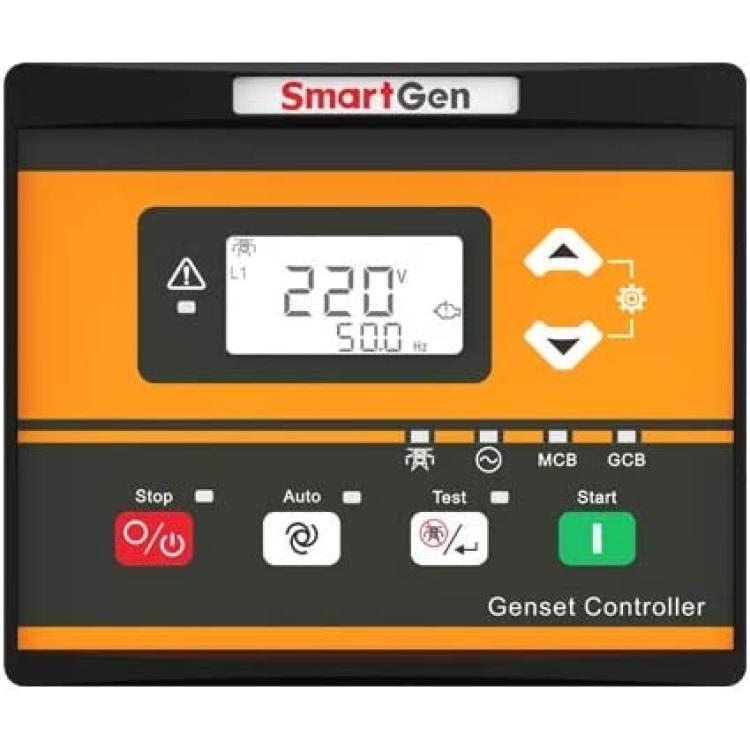

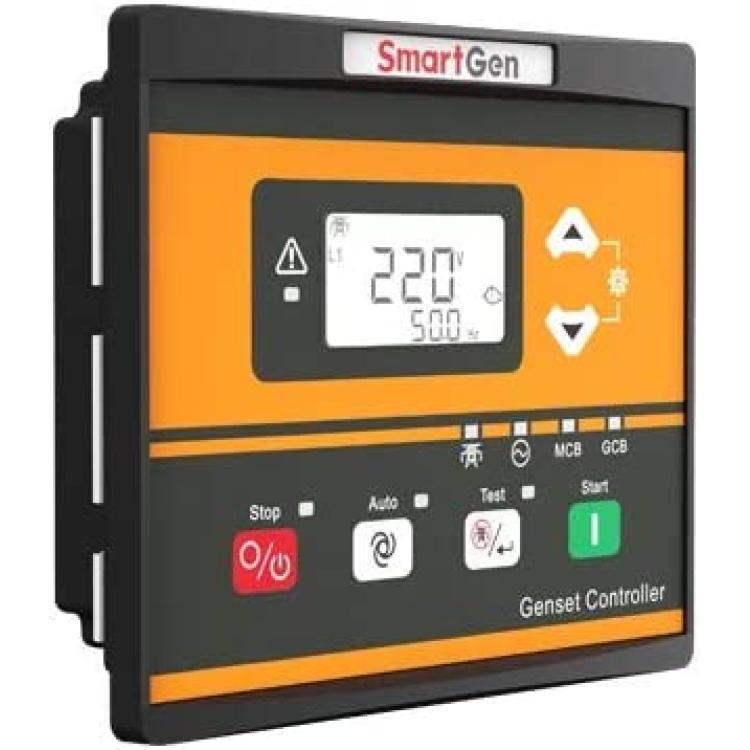

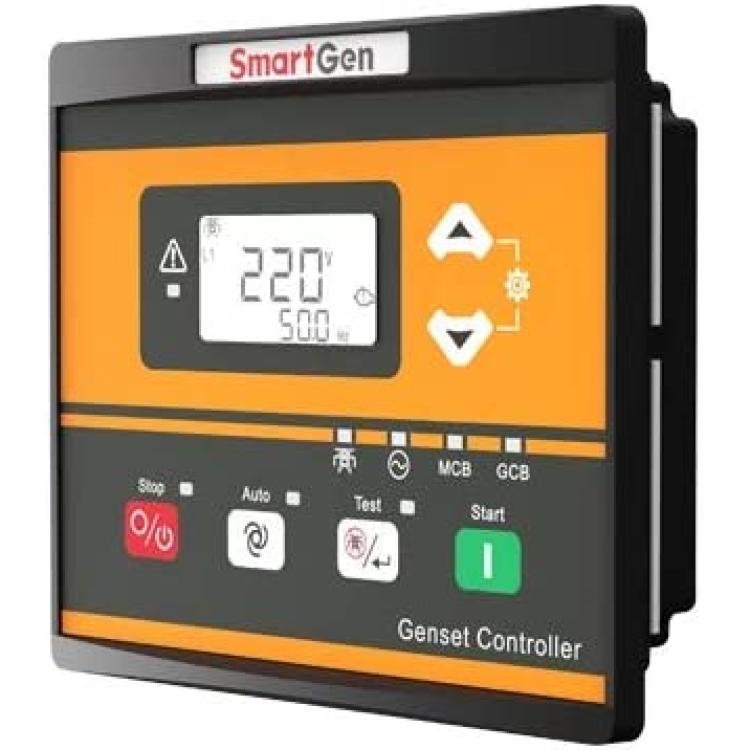

- Graphic LCD display (backlight), LED indicators, push-button operation;
- Acrylic material for hard screen protection;
- Wide power supply range DC (8-35)V, which can suits different environments of starter battery voltages;
- Collect and display mains/gen 3-phase voltage, 3-phase current, frequency, and power parameters;
- Mains has over volt, under volt, over frequency, under frequency, and loss of phase functions; Gen has over volt, under volt, over frequency, under frequency, over current, over power, and loss of phase functions;
- Precisely measure all parameter values of engines:
- Temperature °C Fuel level %
- Battery voltage V Accumulated running time H (max. 199999 hours)
- Speed RPM Accumulated start times (max. 199999 times, display only on PC software)
- Genset fault protection and display function;
- Controller has 4 working modes: manual, auto, stop, and test mode, and MGC310 has stop, manual, auto modes, and MGC320 has manual, auto, stop, and test
