104W ER8 Square Brushless Air Cooled Spindle Motor 10800rpm & NBD200 24V Brushless Driver Without Hall & Clamp for CNC Engraver Machine

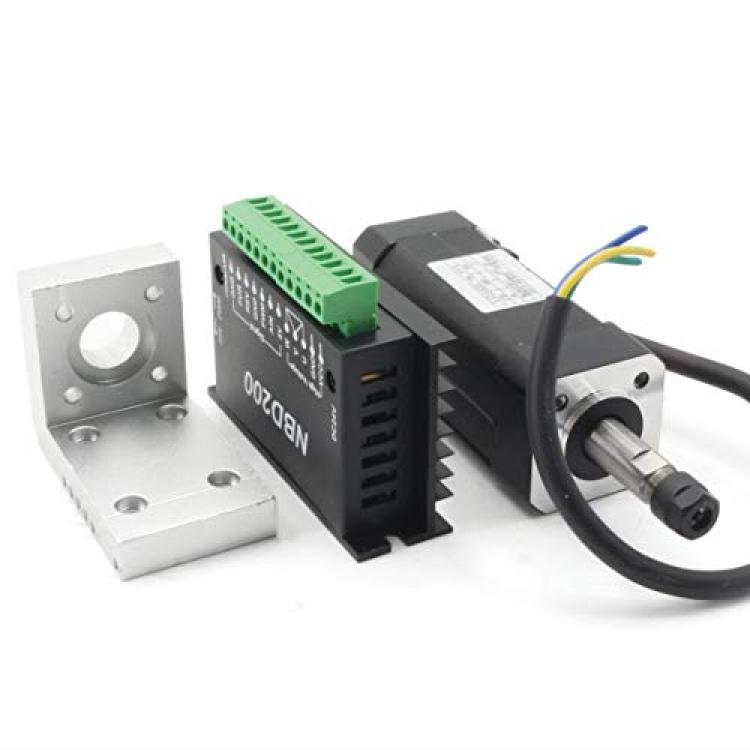

Products Package:

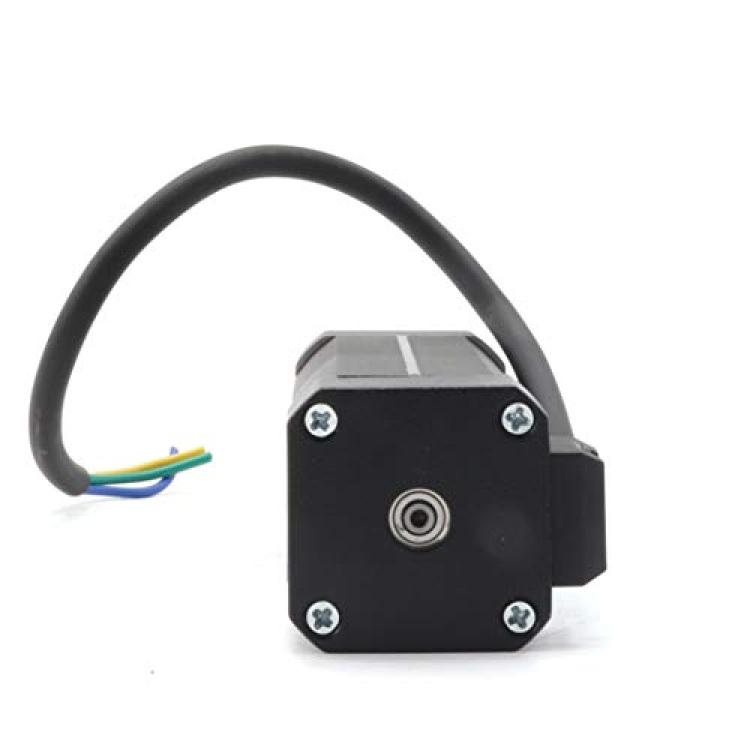

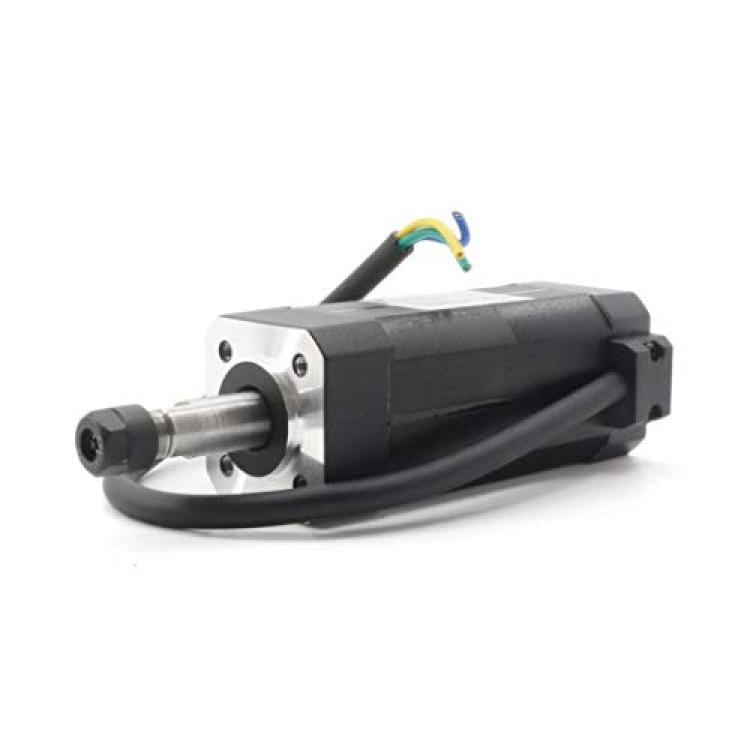

1x 104w ER8 Brushless square spindle motor
1x DBD200 Brushless motor driver

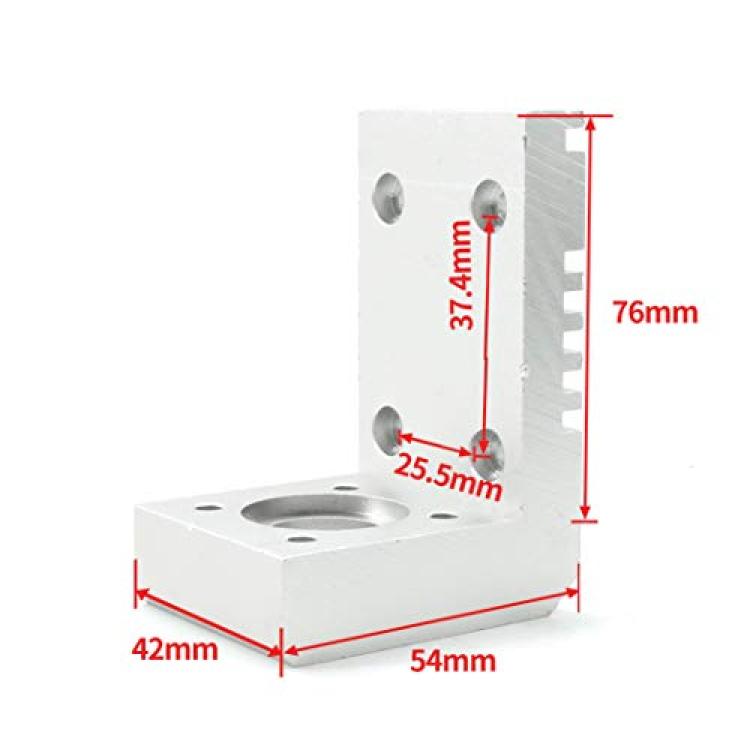

1x Motor Support

Features:
1) Highly integrated and highly reliable brushless DC (BLDC) motor controller.The most direct change is that there is no spark from brush motor, it greatly reduces the interference of the spark to the remote control radio.
2) Three-phase full bridge, PWM square wave drive control.
3) Over-current protection measures, immediately turn off the output when overloaded, and protect the motor in time.
4) High speed, high anti-interference ability.No brush & low interference. Low noise & smooth operation. The friction is reduced during work, run smoothly, and the noise is lower.
5) Low heat, Low maintenance cost, High power,Long life.


Basic parameters
1)Parameter of BLDC Motor
Model:JK42BLS04-10
Output Power:104W
Voltage: 24 VDC
Load Current: 1.35 Amps Max
Load Speed: 10800±10% rpm
Rated Speed: 9000±10% rpm
Collet: ER8
Rated Torque: 0.11N-m
Torque Constant: 0.021N-m/A
Number Of Poles: 8 Pole
Phase To Phaseresistance: 0.12 Ohms
Back EMF Constant: 2.2V KRPM
3Phase:U=Yellow V=Green W=Blue

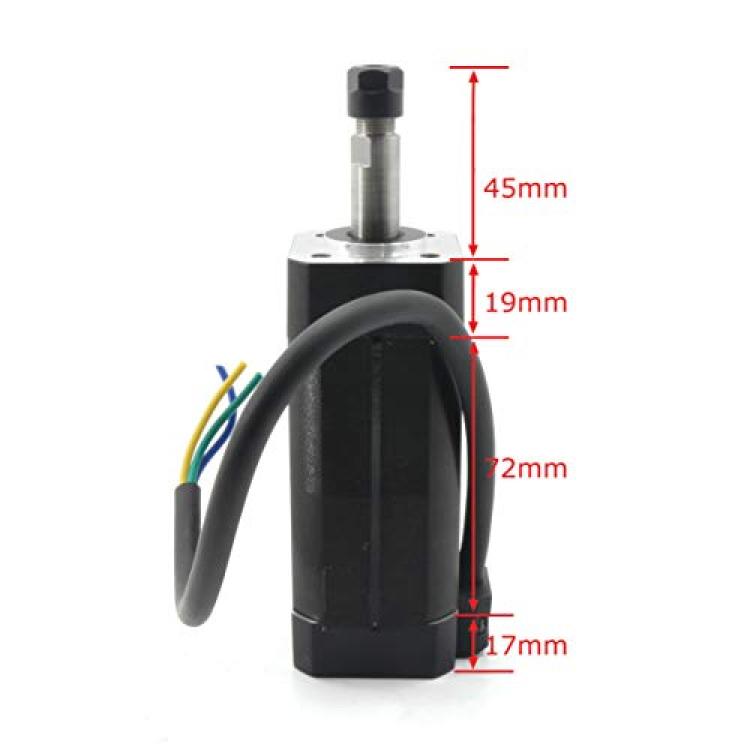

Size: 42x100mm
Net Weight: 0.86kg

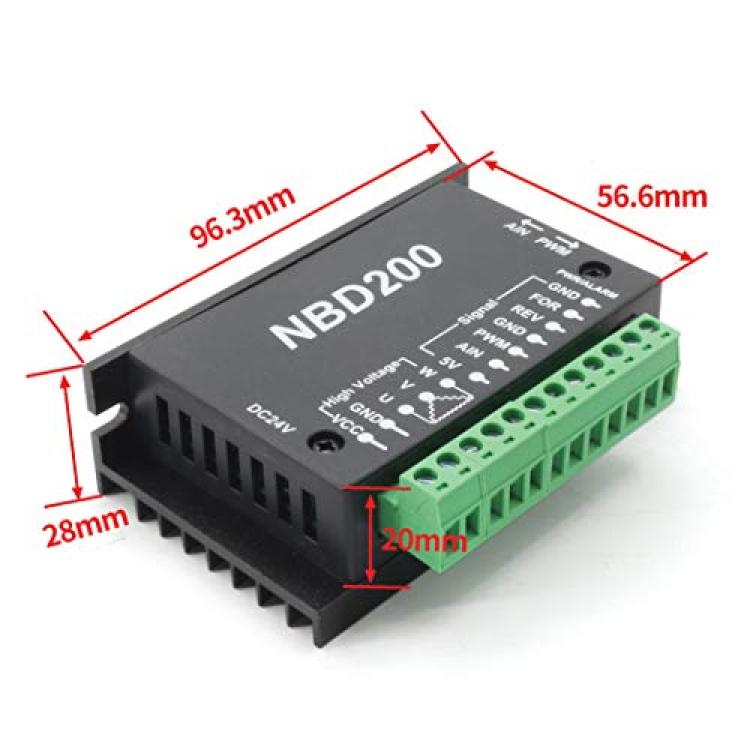

2) Parameter of Driver NBD200
CW & CCW Control
Speed control mode: 0-5V Analog mode and PWM mode
Supply voltage: 24V
Supply current: Minimum 5A
Net Weight: 0.15kg
