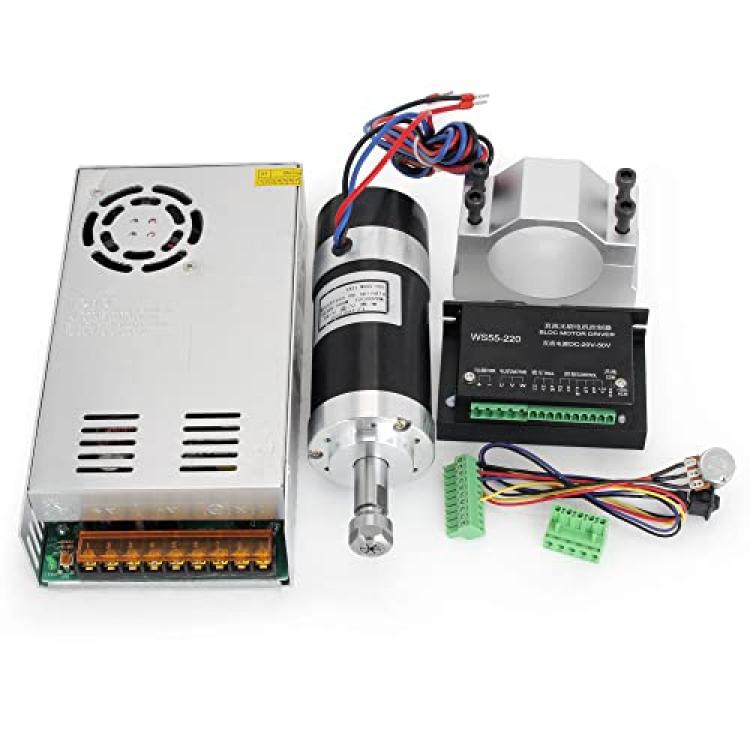

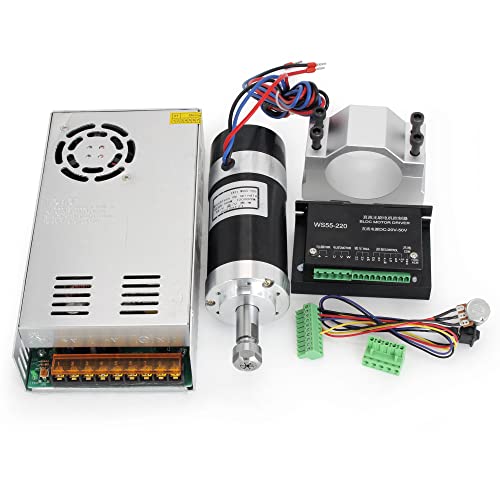

RATTMMOTOR 500W Brushless Spindle Motor Kit, 500W 48VDC Brushless Spindle Motor ER11 12000RPM+BLDC Motor Driver Controller+DC Switching Power Supply+55mm Spindle Mount Clamp for CNC Router Machine

About this product

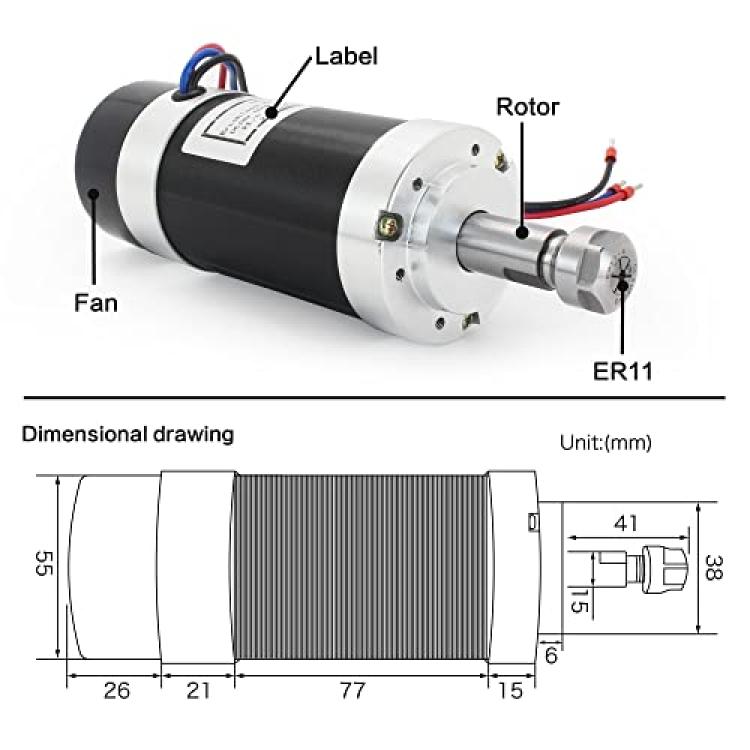

*【Air Cooled Spindle】Power: 500W; Voltage: 48VDC; Speed: 12000r/min; Torque：0.6NM; Diameter: 55mm.Radial runout off :about 0.01-0.03mm;Insulation resistance: > 2 megohms; Dielectric strength of insulation: 400V.

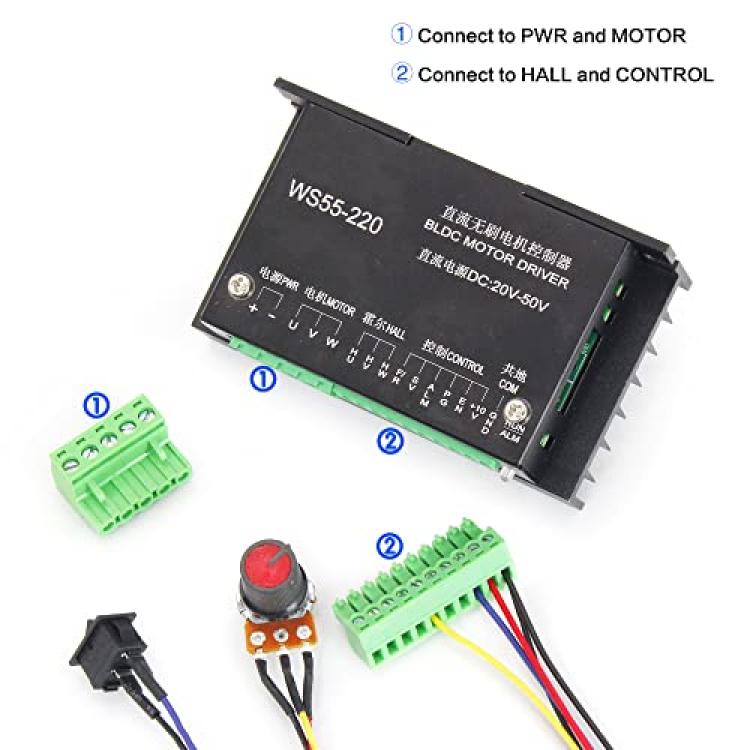

*【Spindle Motor Drvier Features】Compatible with square wave with and without Hall, with potentiometer speed regulation function, external 10V voltage speed regulation function, switch function, speed output function, alarm output function, forward and reverse function, etc., and has a protective shell.

*【Spindle Motor Drvier Parameters】Rated voltage: 20-50VDC; Rated current: 12A; Limiting current: 15A; Support speed: support speed above 20000RPM, the specific speed depends on the motor itself and the load.

*【Advantages-1】The brush is removed, and there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of the electric spark to the remote control radio equipment.

*【Advantages-2】Without the brush, the friction force is reduced during operation, the operation is smooth, and the noise is low, which ensures the stability of the equipment operation.
