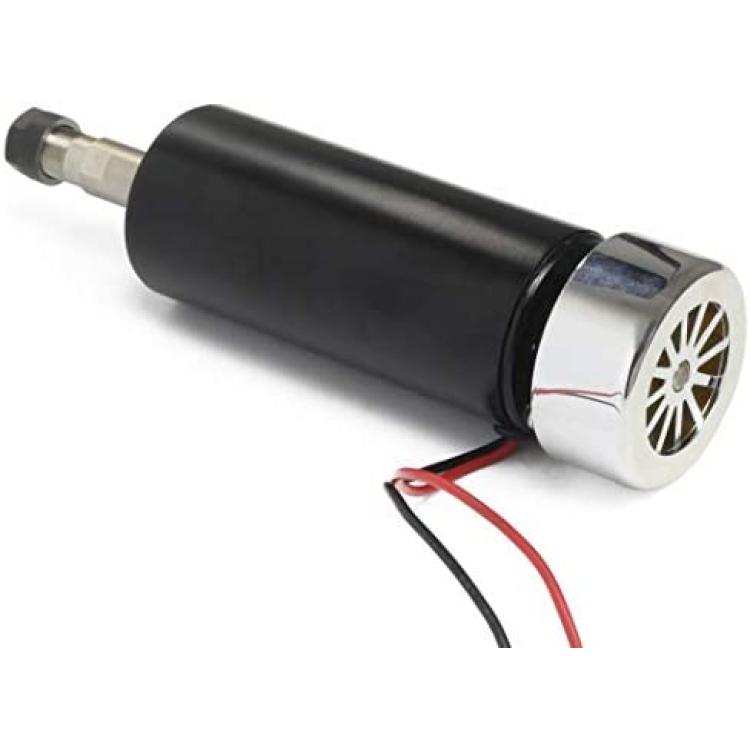

RATTMMOTOR CNC DC Spindle Motor ER16 500W Air-cooled Spindle Motor 52mm 48VDC 12000RPM 600N.m + ER16 Chuck 8mm Collet for CNC Engraving Router Milling Machine
About this product
*Power: 500W; Collet: ER16 Operating Voltage: 48VDC
*Diameter: 52mm; Total length of motor:200mm
*Speed: Idling speed can reach 12000RMP
*Spindle radial runout 0.01-0.03mm high accuracy； Torque: 600N.m
*Applications: Can be used for solid wood, PCB, carving, drilling, etc.
Description

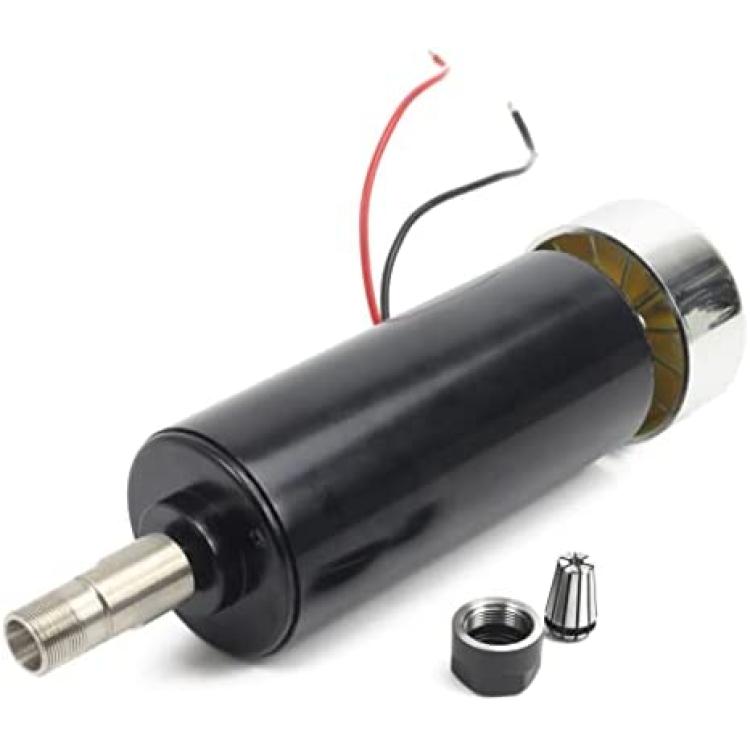

Spindle motor diameter: 52mmDiameter of the chuck part: 16mmTotal motor length: 200mmSpeed: idling speed up to 12000 rpmPower: 500WCollet: ER16Working voltage: 48VDCTorque: 600mN.mInsulation resistance:> 2 megohmsInsulation dielectric strength: 400VSpindle radial runout: 0.01-0.03 high precision1× 500W CNC Air-cooled spindle motor1× ER16 Chuck + 8mm collet
