RATTMMOTOR 600W Brushless Spindle Motor Kit, 110V 0.6KW Brushless Air-Cooled Spindle Motor 11000RPM ER11+ 600W DC Brushless Spindle Motor Driver Converter for CNC Router Machine

About this product

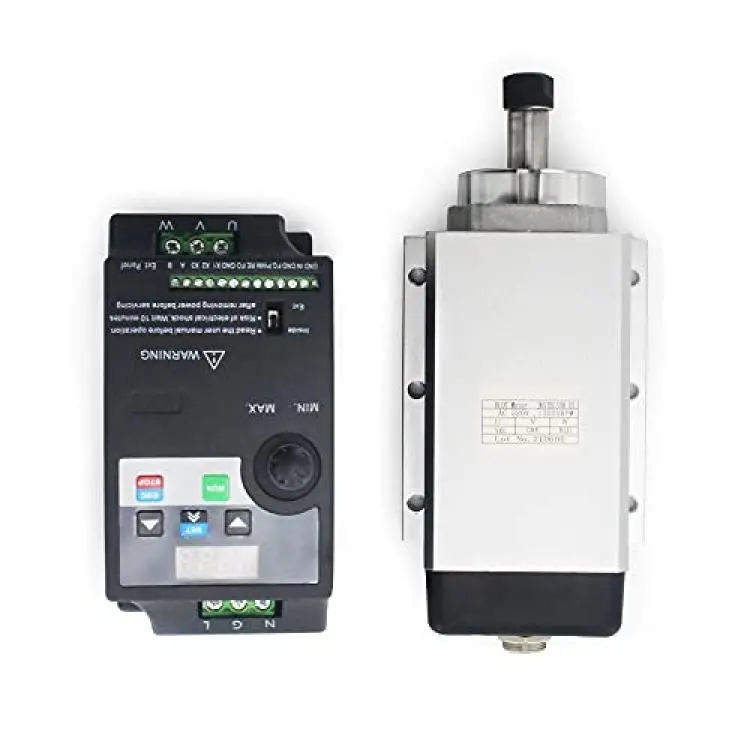

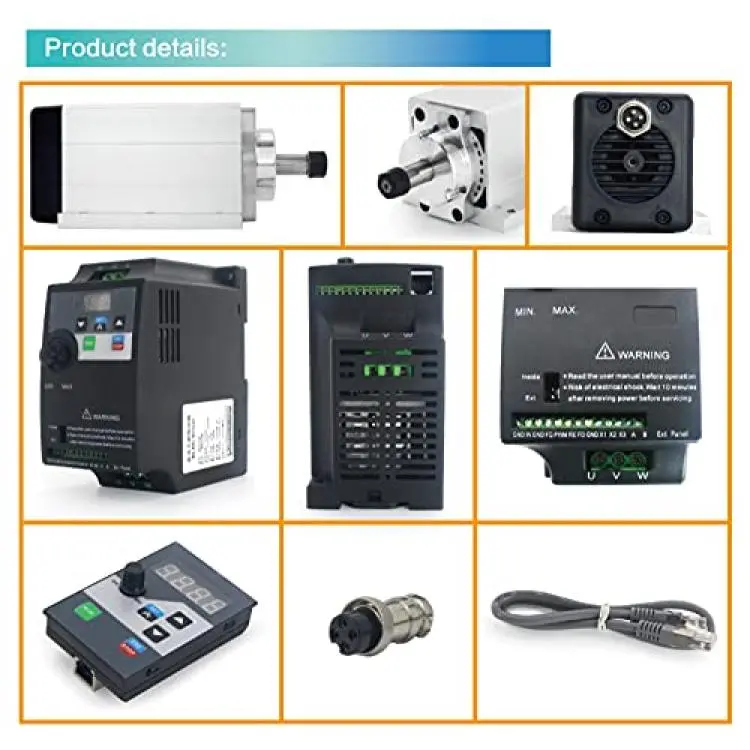

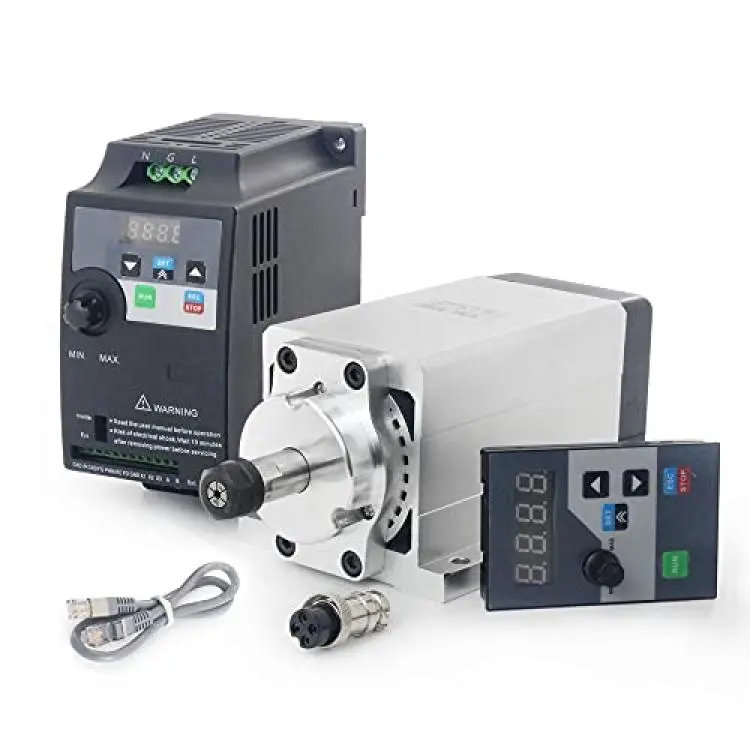

*【CNC Spindle Motor kit 600W】- 1 x 600W Air-Cooled Spindle Motor, 1 x AC 110V Speed Motor Driver, 1 x Control Panel, 1 x Network Port Cable

*【Product Introduction】Brushless spindle driver is designed for the ecomomic engraving machine,it matchs with the brushless DC motor. With the updated DSP technology,the driver can drive the motor to output more precise speed and bigger torque comparing with current drivers. Independent demountable pane design makes users take down the panel from the main driver and install it on the controller cabinet. By the panel, its convenient to set the parameter, and start/stop/control motor speed.

*【Spindle Motor Parameters】The actual power of this 600W 110V brushless spindle motor can reach 750W, the speed can reach 11000RPM, the rated current is 1.8A, and the torque is 0.55N.m, Class B insulation, 4 poles, phase to phase resistance is 2.91OHMS.

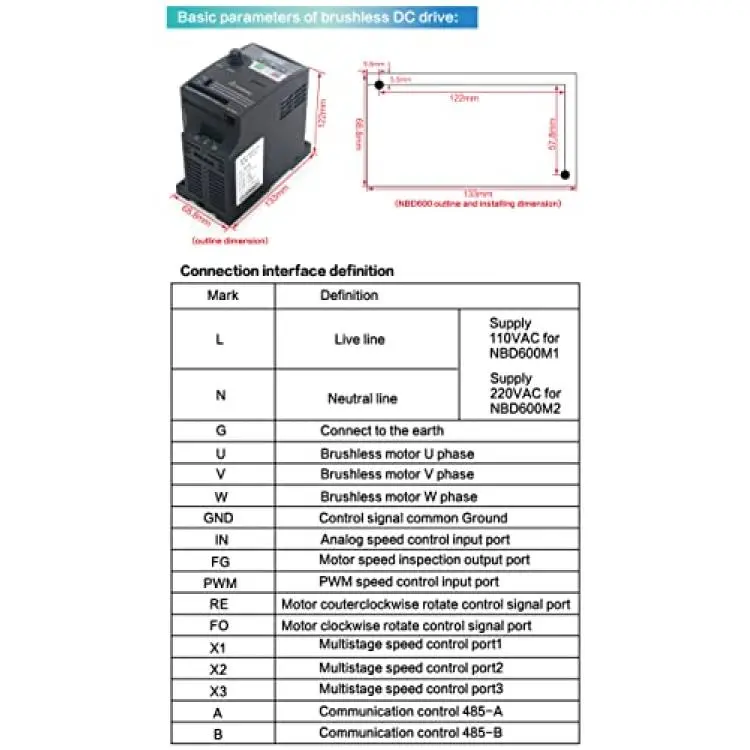

*【DC Motor Driver Parameters】The maximum driving power of the driver is 600W, the voltage range is 100VAC~120VAC, the DSP main control module adopts an external independent panel design, and the performance is stable.

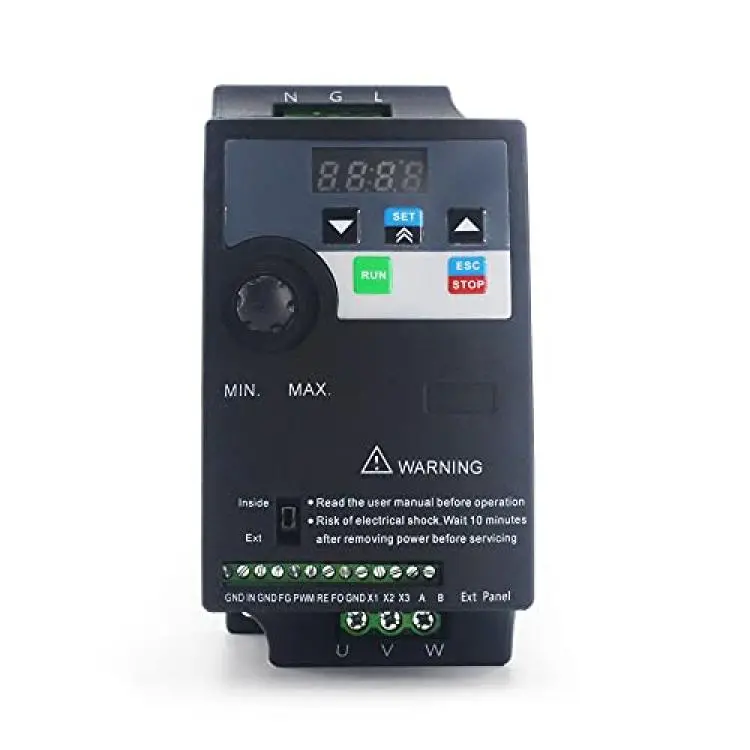

*【DC Motor Driver Features】No current flows when the driver is not in operation, the input signal is TTL compatible, internal overvoltage, overcurrent, and locked rotor check, with built-in panel potentiometer, external panel potentiometer, external voltage signal, external PWM signal and 485 communication 5 debugging methods；Speed test port for users to check the actual speed.
