RATTMMOTOR CNC Square Mini 104W Brushless DC Spindle Motor 10800RPM ER8 42mm+Brushless Spindle Motor Driver 24V 5A Spindle Motor Controller+Spindle Motor Mount Bracket for CNC Router Milling Machine

About this product

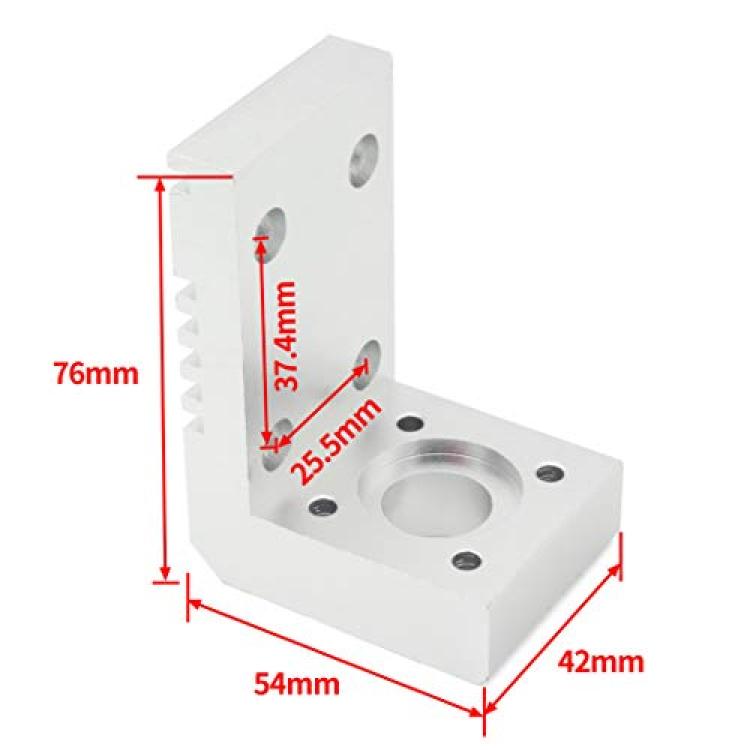

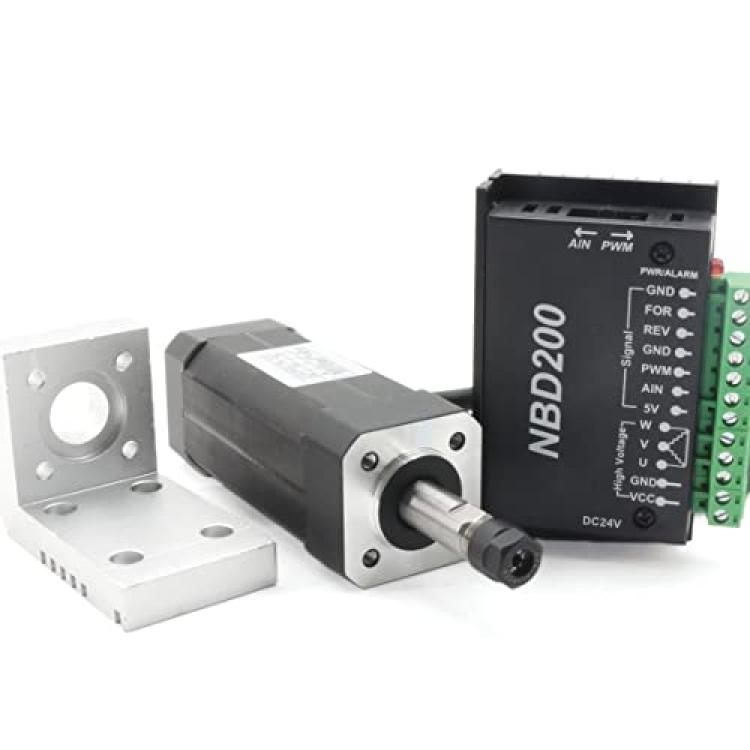

*【Package Include】1x 104W Brushless square spindle motor ER8 ;1x Brushless spindle motor driver;1x Spindle Motor Bracket

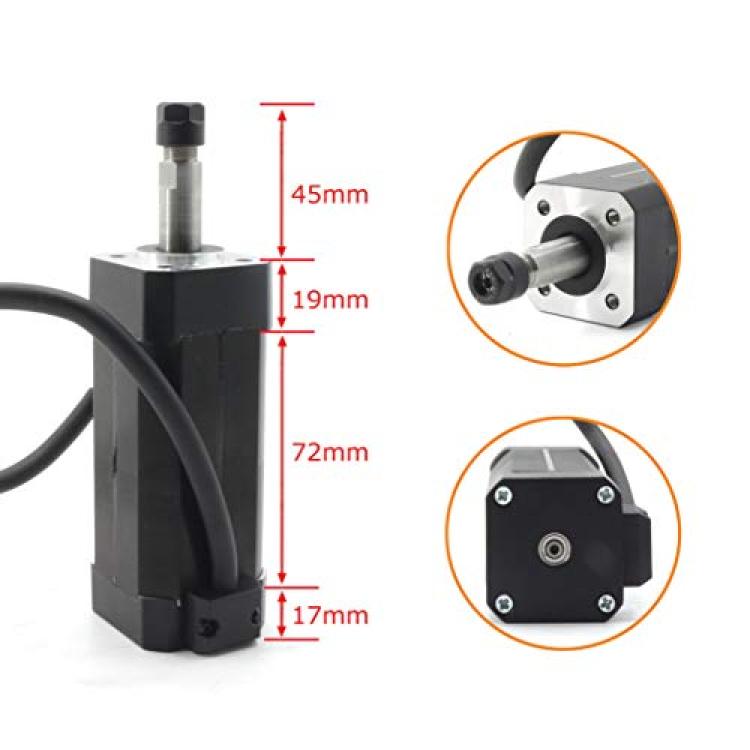

*【Parameters of Spindle Motor】① Output Power: 104W; Voltage: 24V DC; Load current:1.35 Amps Max.; Load speed: 10800±rpm; Rated speed: 9000±rpm. ② Back EMF constant: 2.2V KPRM; Collet: ER8; Torque Constant: 0.021N.m/A; Rated torque: 0.11N.m; Phase to phase-resistance: 0.12Ohms.

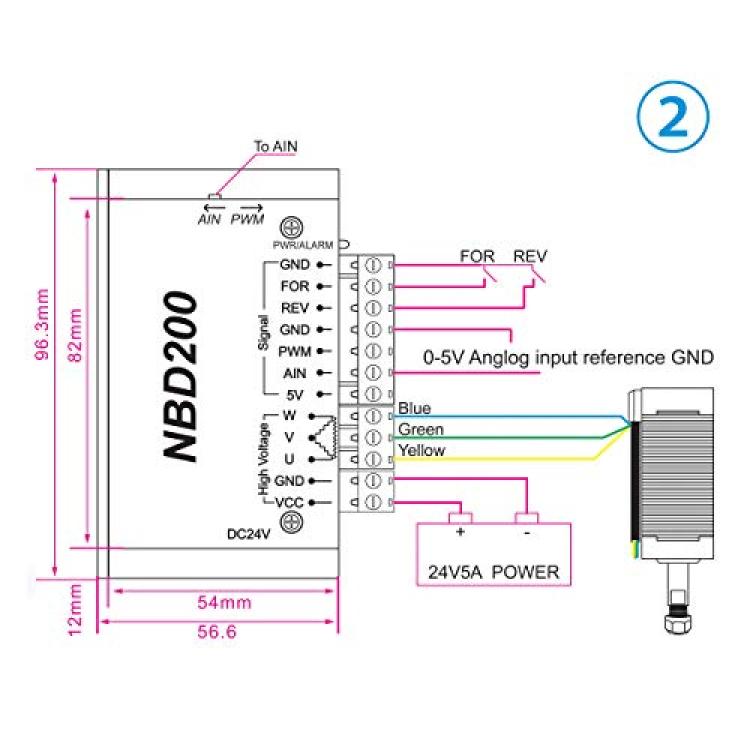

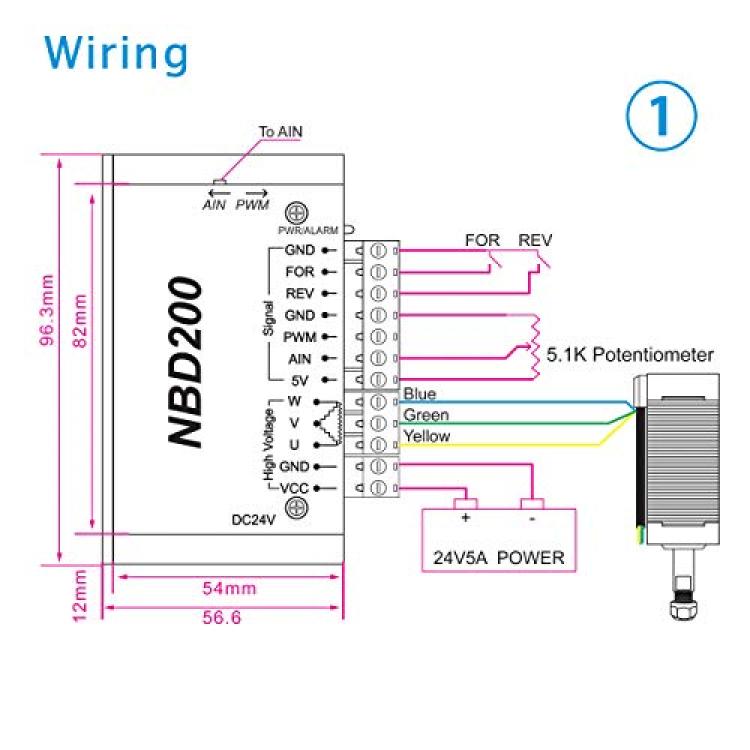

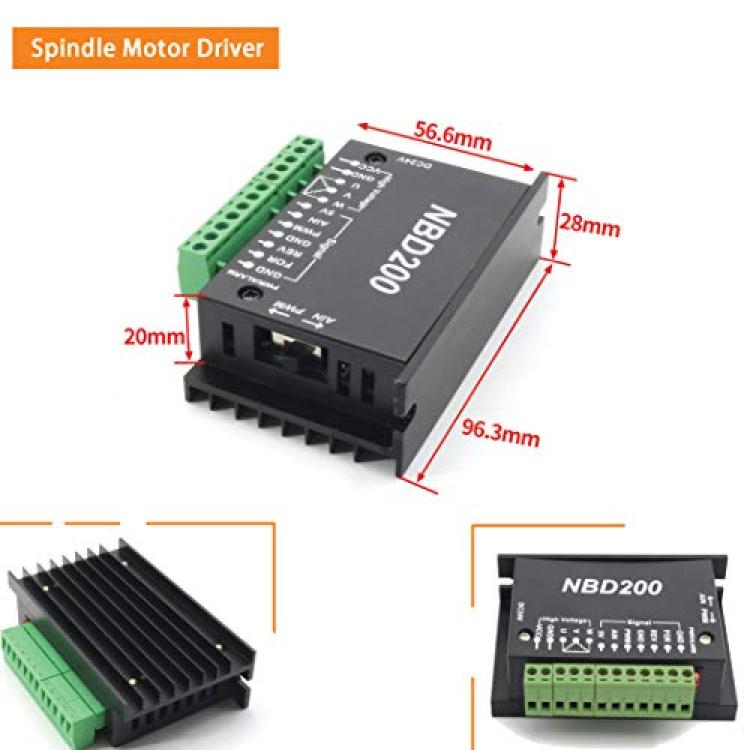

*【Parameters of Motor Driver】CW & CCW Control; Speed control mode: 0-5V Analog mode and three-phase full bridge, PWM mode; Supply voltage: 24V; Supply current: Minimum 5A.

*【Advantages】The most direct change of this brushless spindle motor driver is that there is no spark from brush motor, it greatly reduces the interference of the spark to the remote control radio. With high integration and high reliability.

*【Features】① With the over-current protection measures, it can immediately turn off the output when overloaded and protect the motor in time. ②High speed, high anti-interference ability; No brushand low interference; Low noise, low heat and the reduced friction during work, it can make the brushless spindle motor runs smoothly.
