HiLetgo Digital Multimeter AC 80-260V 100A PZEM-061 LCD Display Digital Current Voltage Power Energy Multimeter Ammeter Voltmeter with Current Transformer CT
Description
Feature:
This meter can only be used with one-phase AC power. And it can only measure the active power(real power). It doesn't show Apparent power.
This product to monitor the power consumption of your electronics, it can even be hooked up (2 of them) in your electrical box for whole house monitoring.
It can be used as a more precise "watt-meter" by plugging/unplugging/turning on household items.
Wire this meter up in a 20 amp circuit feeding some of your power amps.

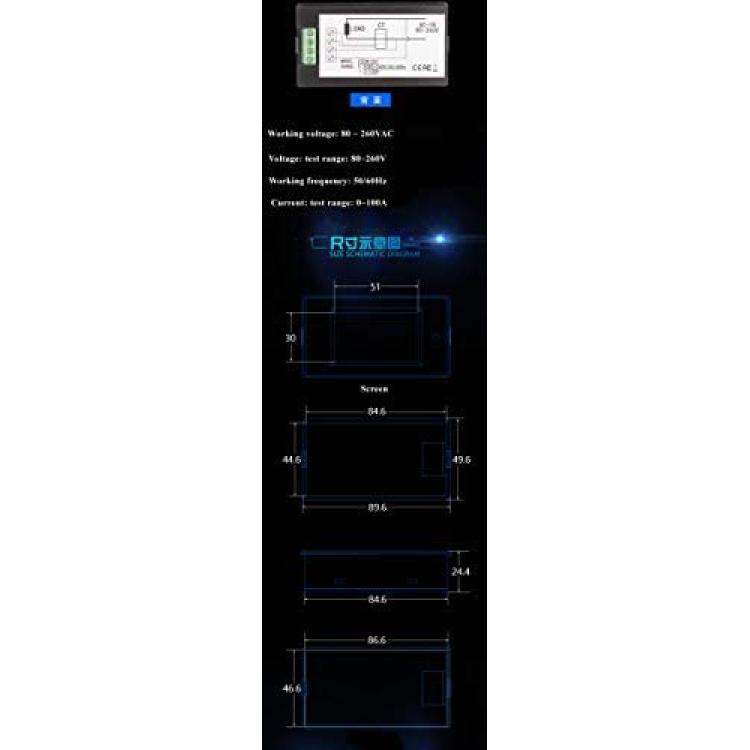

Specifications:
Working voltage: 80 ~ 260VAC
Working frequency: 50/60Hz
Measuring:Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Store data when power off

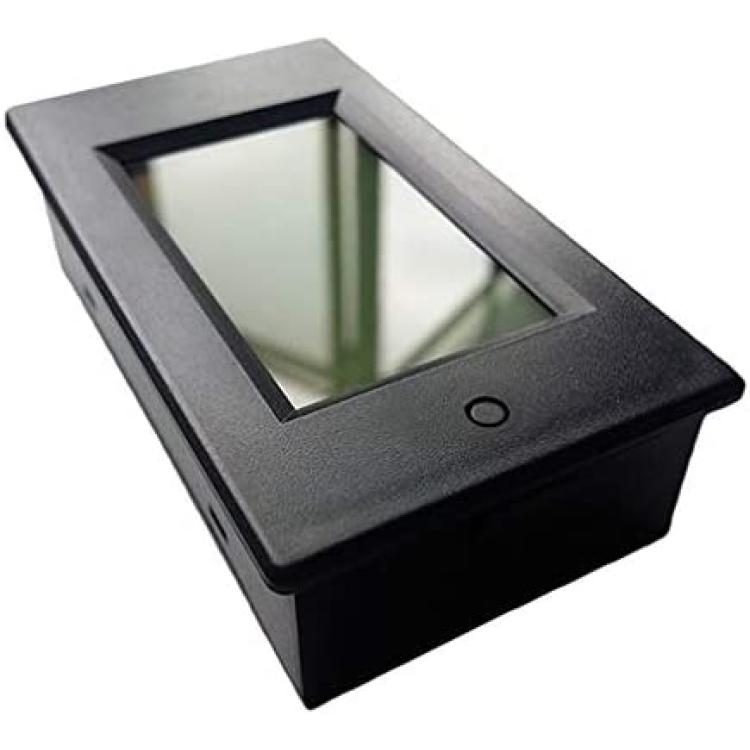

The blue backlight can be turned on/off manually

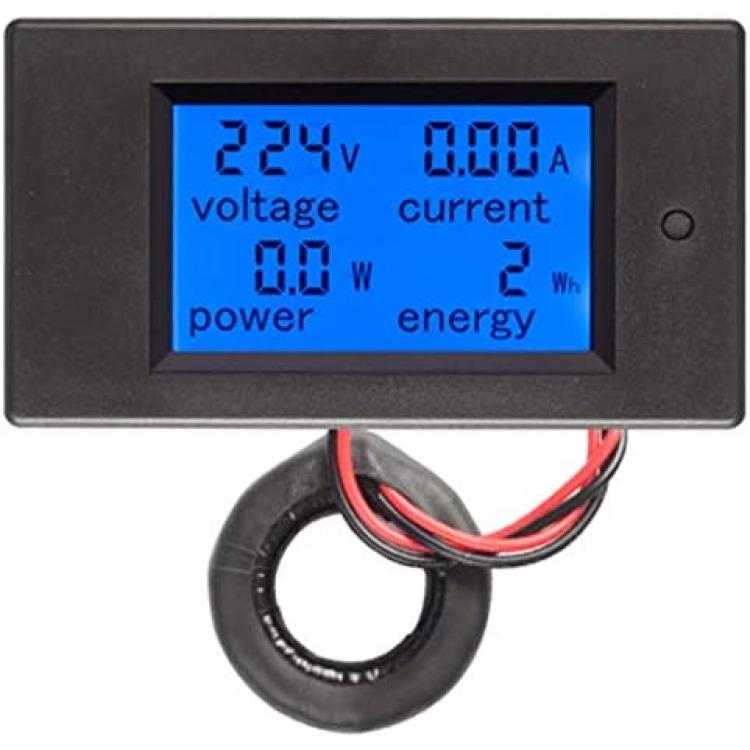

Test Range and Display format:
1.Power: test range: 0~22kW
<1kW, display: 0.0~999.9W
1kW~10kW, display: 1000~9999W
> 10kW, display: 0.1~22.0kW
2.Energy: test range: 0~9999kWh
<10KWh, display: 0~9999Wh
>10kWh, display: 10~9999kWh
3.Voltage: test range: 80~260V(single-phase)
Display: 80~260V
4.Current: test range: 0~100A
Display: 0.00~99.99A
Precautions:
1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.

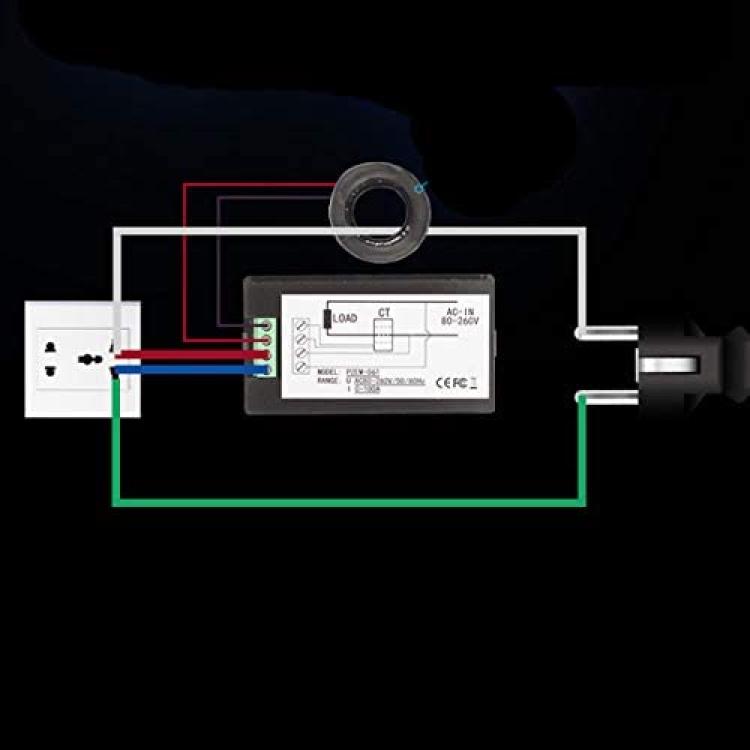

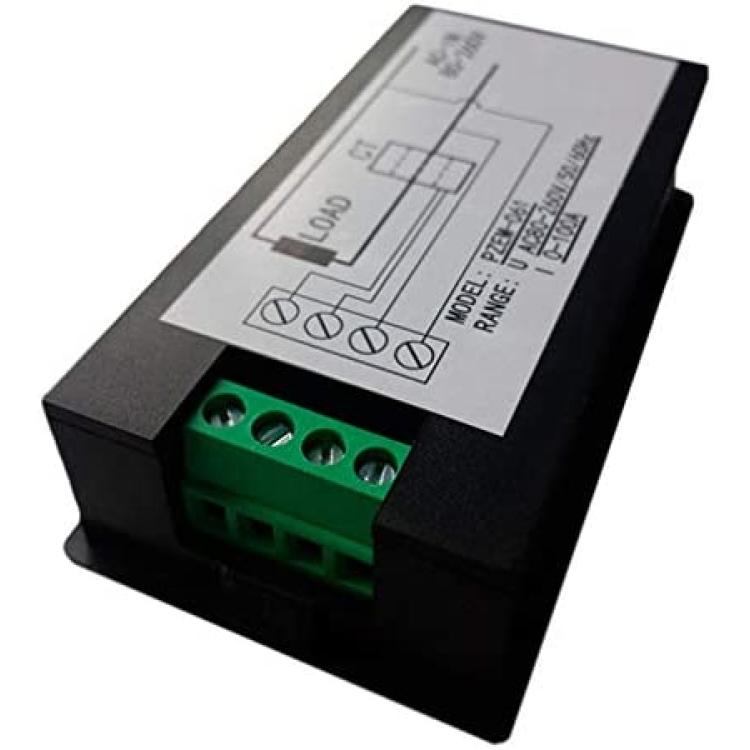

3. Wiring order can not be wrong.
4. This module is suitable for indoor, please do not use outdoor.
Packing including:
1*AC Power Multimeter
