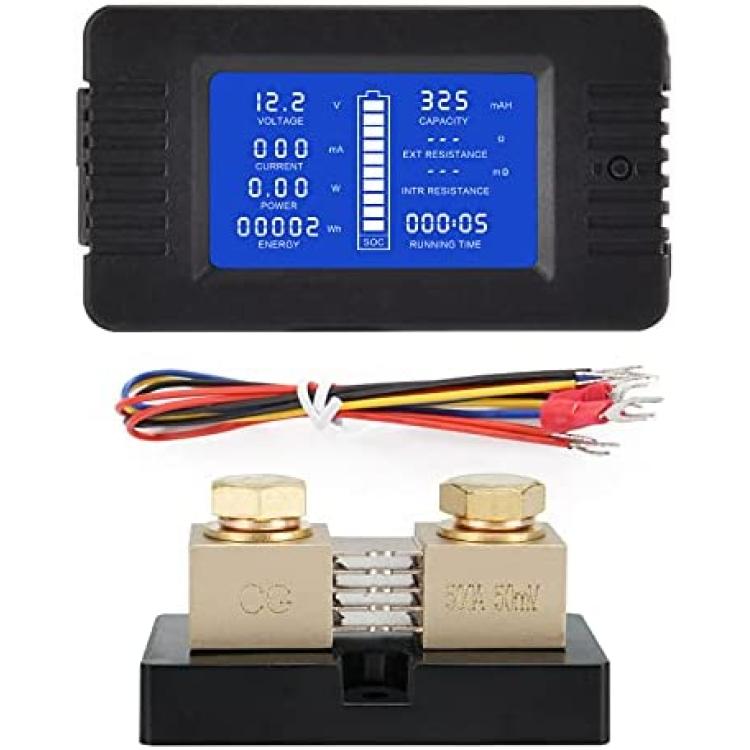

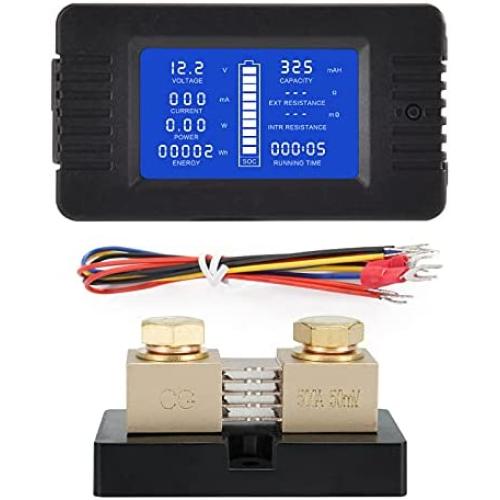

CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery…

Power consumptionNormal working state: 0.03-1.2 WSleeping state: 0.5mW-0.5WThe power consumption is related to the test voltage valve,the higher the voltage,the greater the power consumption.Working temperature-20’C ~ +60’C.Voltage: Measuring range: 0-200V?Minimum Resolution: 0.01V (when the test voltage is ?8V, please use the independent power supply mode)Current: Measuring range: 0-500A. The starting test current: 20mAPower: Measuring range: 0-20000W, Starting measure power: 0.2WImpedance: Measuring range: 0-1000?Internal Resistance:Measuring range: 0-999m?Capacity: Measuring range: 0-1000AH.SOC: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.Energy?Measuring range: 0?9999kWh.Over the test range will become zero.Note:1Wh=0.001kWh=0.001 KilowattRunning time:Measuring range: 0 ~ 999 hour (without load the time will not accumulate)Push-on terminal,no need screws to connectLarge-screenLCD with a full sight 180°-viewThe blue backlight can be turened on/off manuallyDC Multifunction Battery Monitor Meter widly used for solar penel,wind generator,industrial assebly line,automobile/RV,etc.
