12v 24v 36v 48V Battery Voltage Meter rv with LCD Display Green Backlight,Battery Monitor Capacity Meter Level Indicator Voltage Gauge Meter for 2S-15S Lithium-Iron&Lead-Acid Batteries Auto Car

Description
12V 24V 36V 48V battery capacity indicator& Voltage Meter with LCD Display Green Backlight?
Monitor Gauge Tester for 2S-15S Lithium Batteries and Lead-acid Batteries for Auto Car Vehicle
Functions:
1. Manually switch battery percentage / voltage / power off
2. Automatic recycling display battery capacity / voltage per 2 seconds (Settable)
3. 10s delay auto off (Settable)
4. Double discharge curve selection (Settable)
Specifications:
Color: Black
Weight: 18g
Material: HTN / PCB

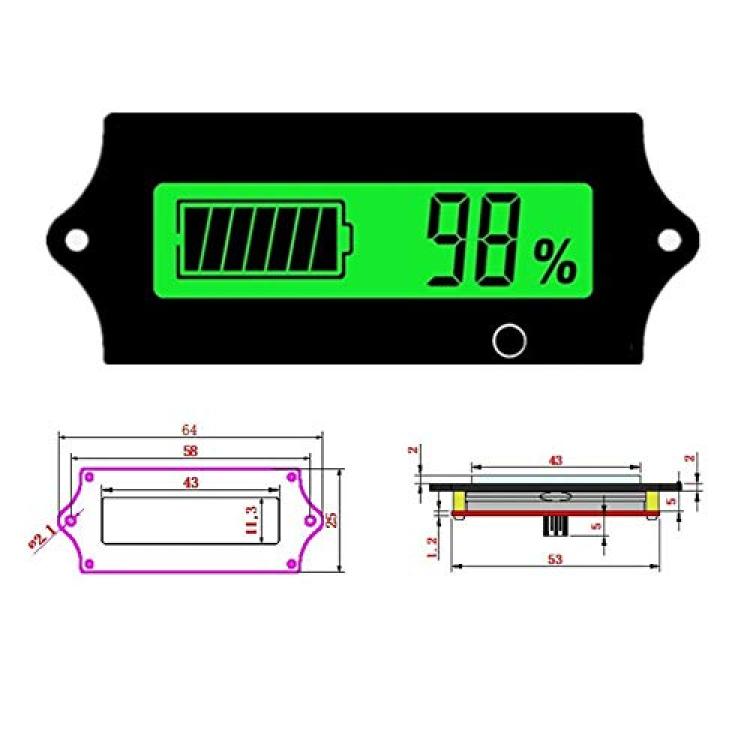

Dimensions: 61.3 * 33.3 * 13.5mm / 2.4 * 1.3 * 0.5in
Screen Size: 43 x 11.3mm / 1.69" x 0.44"
Wire Length: 30cm / 11.8"
Voltage Range: 6-63 (V)
Circuit Load Current: 5 - 6mA
Storage Temperature: -10 ~ 50?
Suitable for: 3s-15s 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V;
Setting Instruction:
1. Long press the Set key, power supply to the product, enter the setup interface
2. Press the Set key to select the battery specification (Lead acid battery(P), Lithium battery (L),
Fe battery(F))
3. Short press the Function key to select the number of battery strings (increasing for set button,
decreasing for function button)
4. Long press the Function key to set s mode.
Package List:

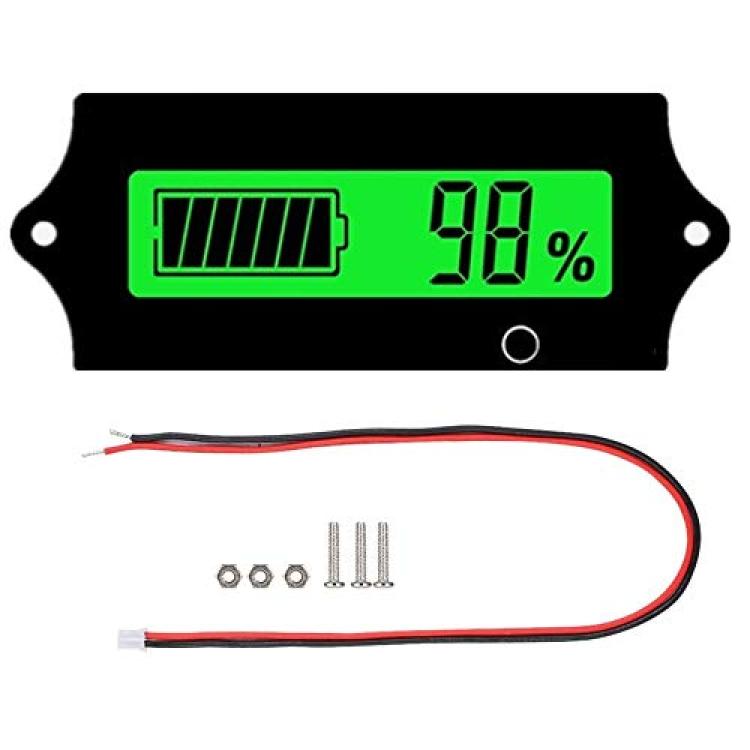

1 x Battery Capacity Voltage Meter with Connecting Cable
