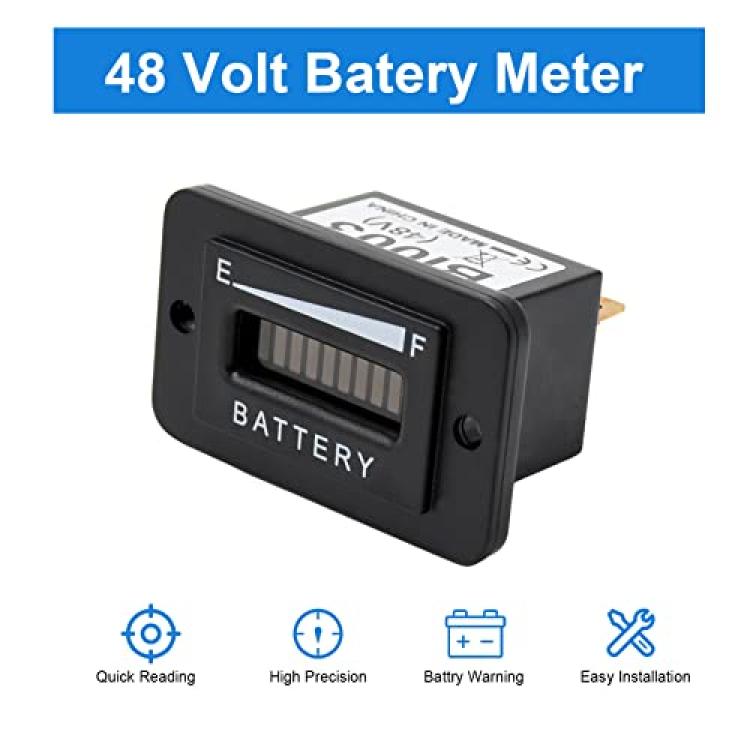

48V Battery Fuel Gauge Indicator, Golf Cart Battery Meter, Yamaha,EZGO, Fork Lifts,Club Car,LED Battery Indicator Meter Gauge

Product Specification
Product Size: 53x33x24(mm?
Display Screen: 10 Segment LED Bar Graph
Operate Current: 20mA
Operate Temperature: -30°C- 85°C

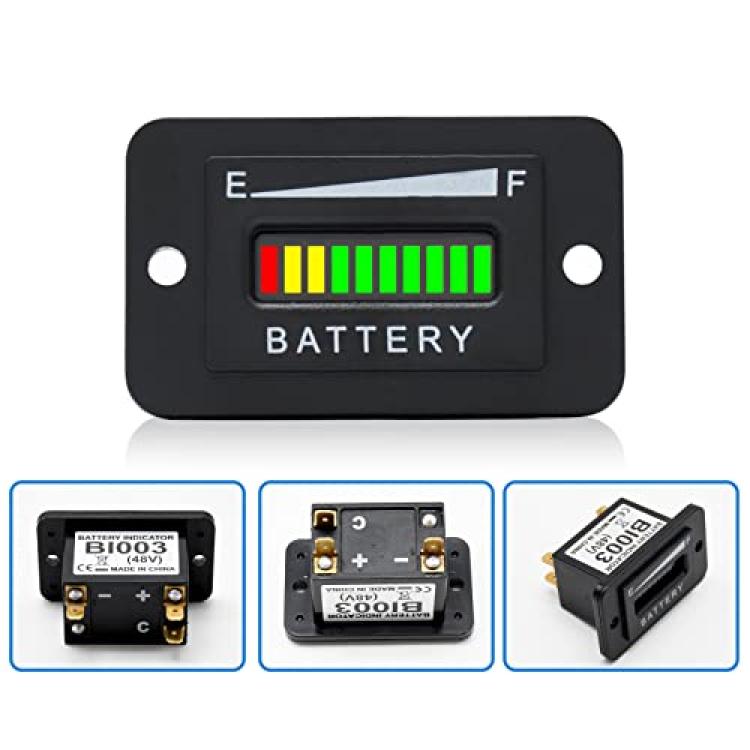

Pin Type: +,-,C
Package: With Box
N.W.: 45g
Waterproof Rate: IP65

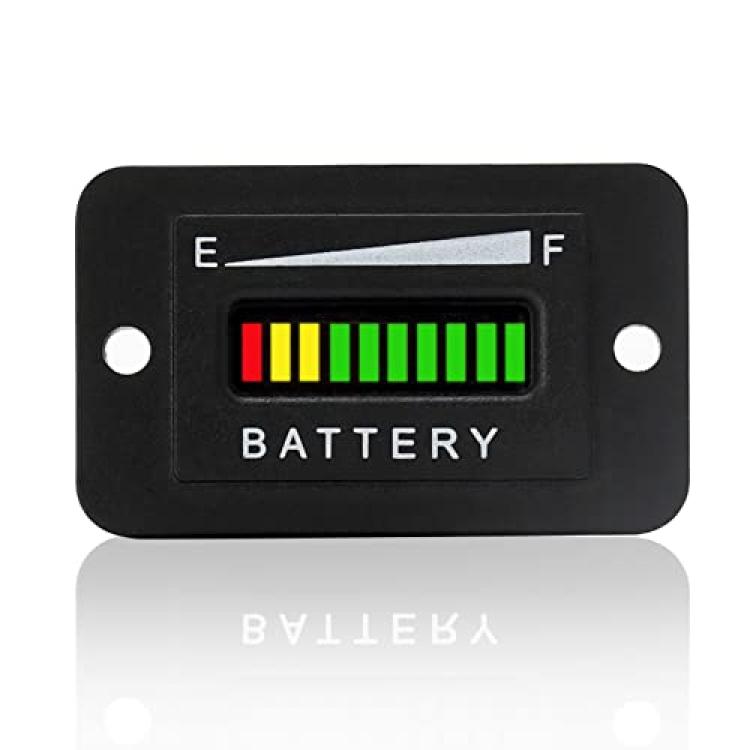

10 segment LED bar graph

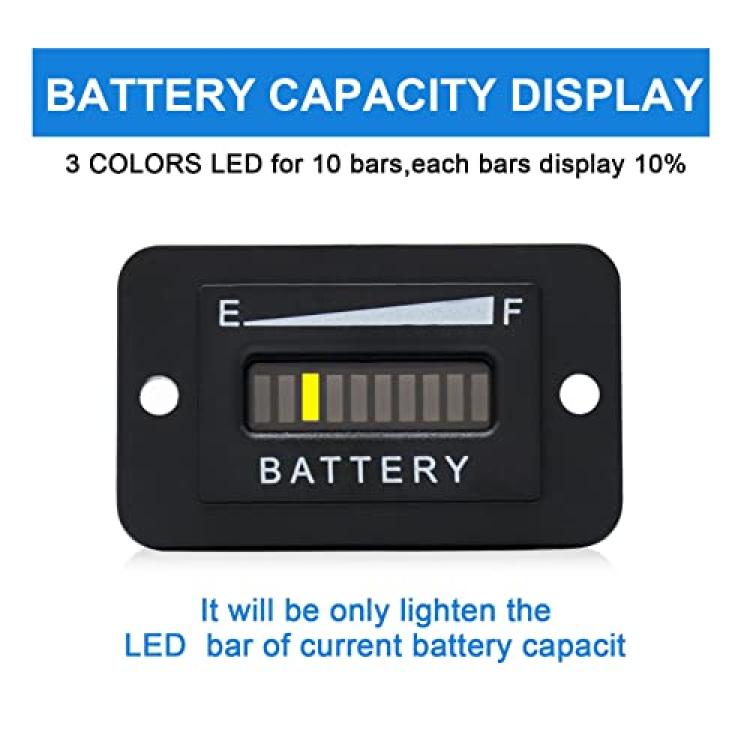

3 color LED display:1Red,2Yellow,3Green,different light displays different battery level visually.
When battery indicator connect with new battery,it will display full. After 155s,it will display the real battery level segment.
Note
The second LED from the left flashes as a warning that the batteries voltage has been discharged to 80% of their capacity.
At a 90% battery discharge, the red and yellow LEDs will alternately flash to indicate a very low voltage capacity is remining.
It is strongly recommended to recharge the batteries when you get to the 3rd Yellow LED, this is a safety precaution to avoid dead batteries

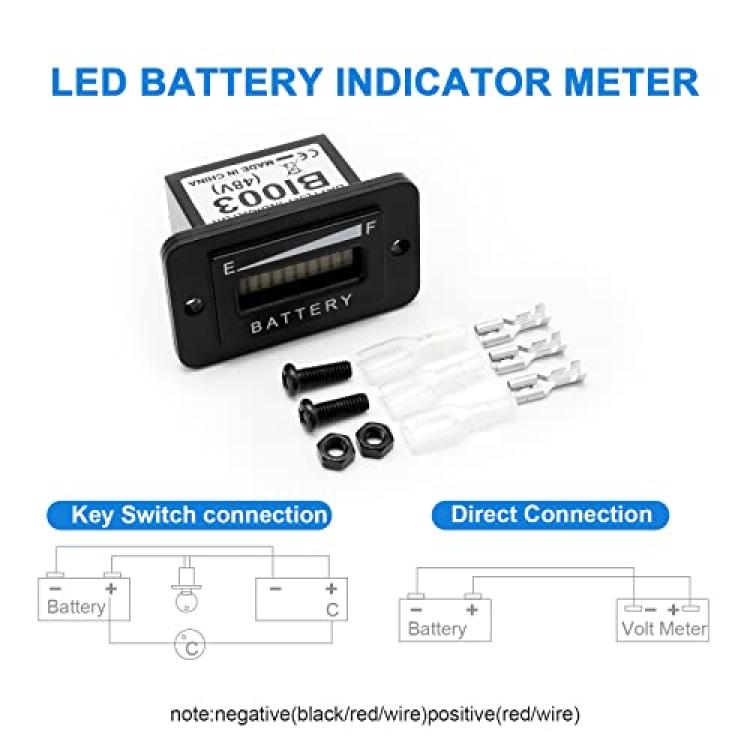

Special Note: The "C" pin must be connected to the positive (+) pin to keep the indicator getting a normal real-time battery level, if the "C" pin is not connected to the positive (+) pin it will appear that no battery is displayed on the battery, the light just flashes from low
