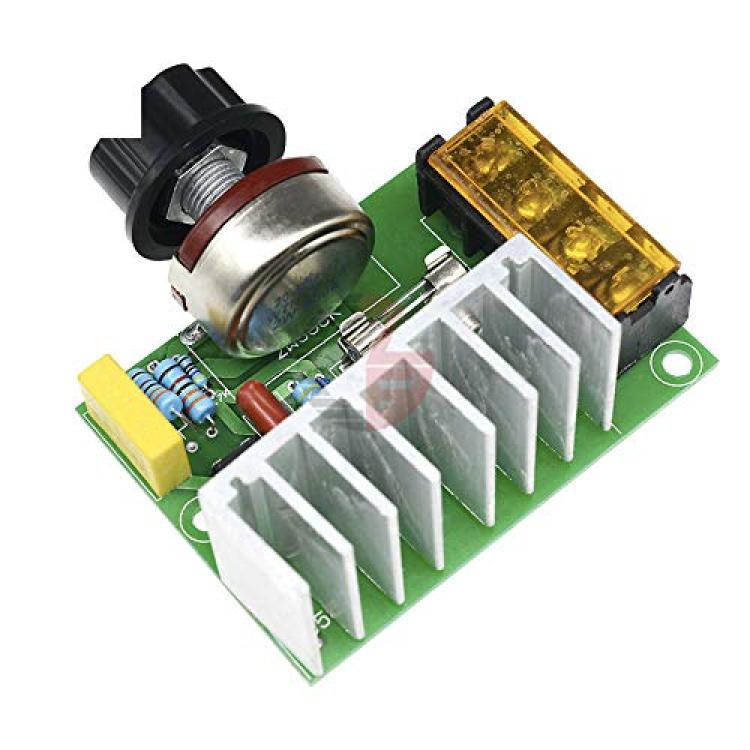

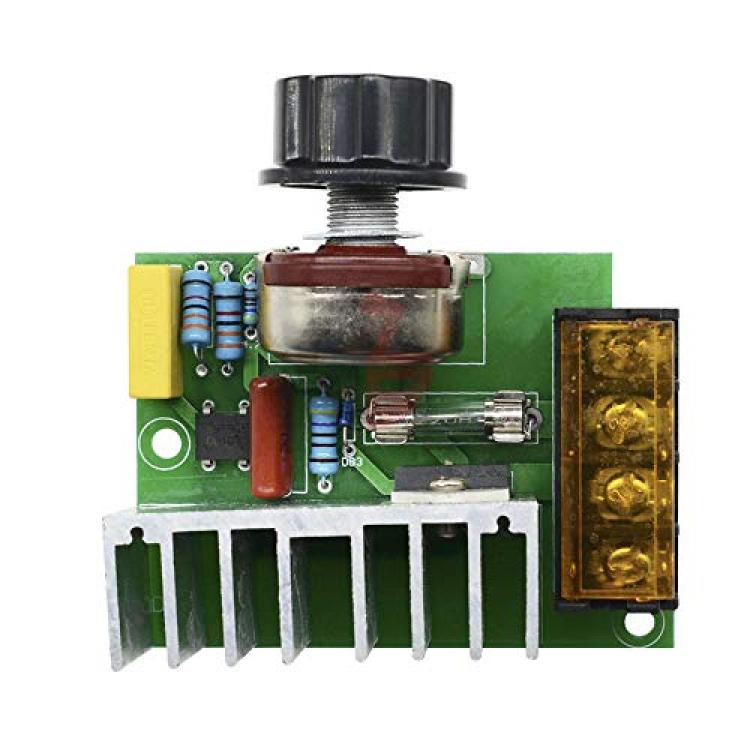

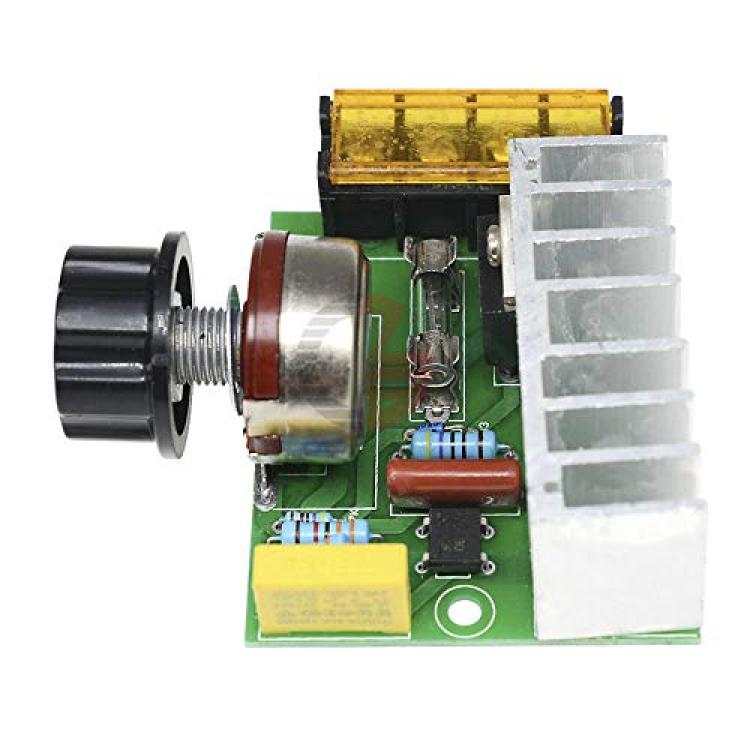

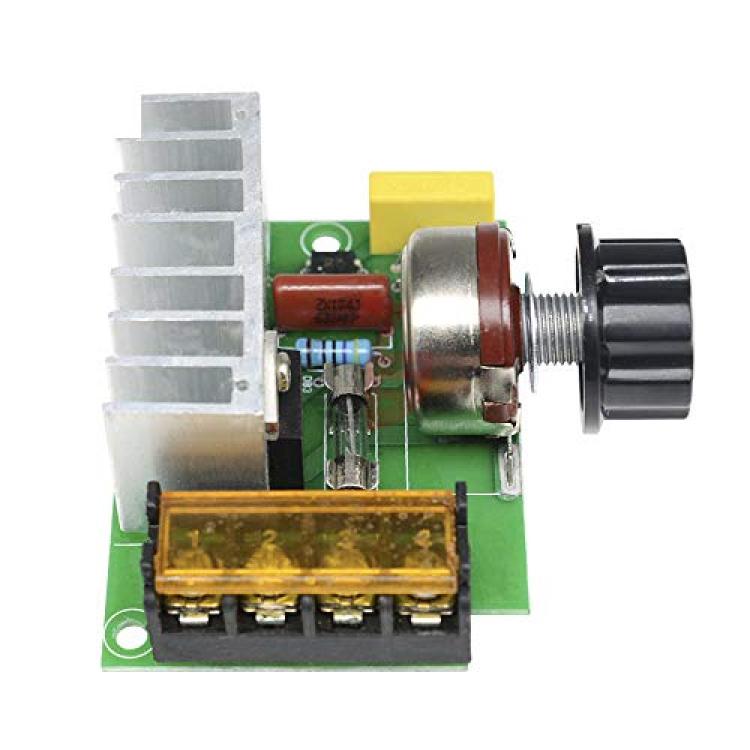

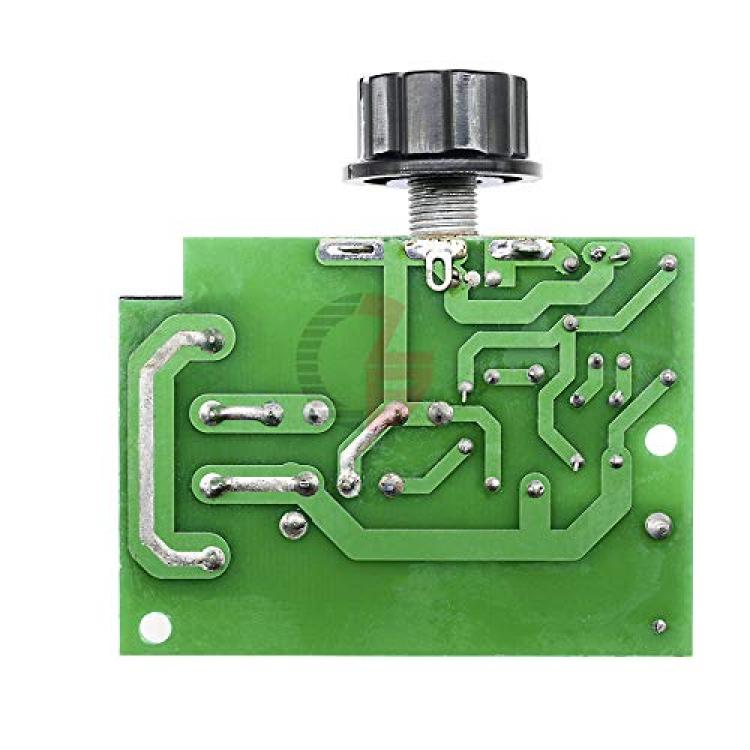

4000W AC 220V SCR Voltage Regulator Motor Controller Dimmer Switch Thermostat Electric Adjustable Power Converter Transformer
Availability: Pre-Order, Inquiry Price
About this product
*4000W AC 220V SCR Voltage Regulator Motor Controller Dimmer Switch Thermostat Electric Adjustable Power Converter Transformer
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*4000W AC 220V SCR Voltage Regulator Motor Controller Dimmer Switch Thermostat Electric Adjustable Power Converter Transformer
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*Date First Available : October 21, 2019
Description
Specifications:
Product Name: 4000W AC voltage regulator
Size: length: (L*W*H): 85*55*38mm / 3.3 * 2.2 * 1.5 inches,knob hole 6mm.
Maximum power: 4000W (resistive load limit power), long time should be reduced power use. Long time resistance load recommended within 2000.
Efficiency: more than 90%
Working voltage: AC 220V
Adjust the voltage: AC 0-220V
Voltage adjustment range: AC 0-220V, Resistive load conditions, starting a dozen volts, callback can be 0
Note that the load must be connected before it can be regulated
SCR is mainly used for resistive load (electric wire incandescent lamp, etc.), single-phase AC motor can also be, but not guaranteed can, other types of load, please confirm by yourself
Fuses are not omnipotent, there is reaction time, if the current is too large, in addition to burning the fuse, the module may also burn out.
Package Included:
1 x 4000W 220V AC SCR Voltage Regulator Dimmer Thermostat Electric Motor Controller
