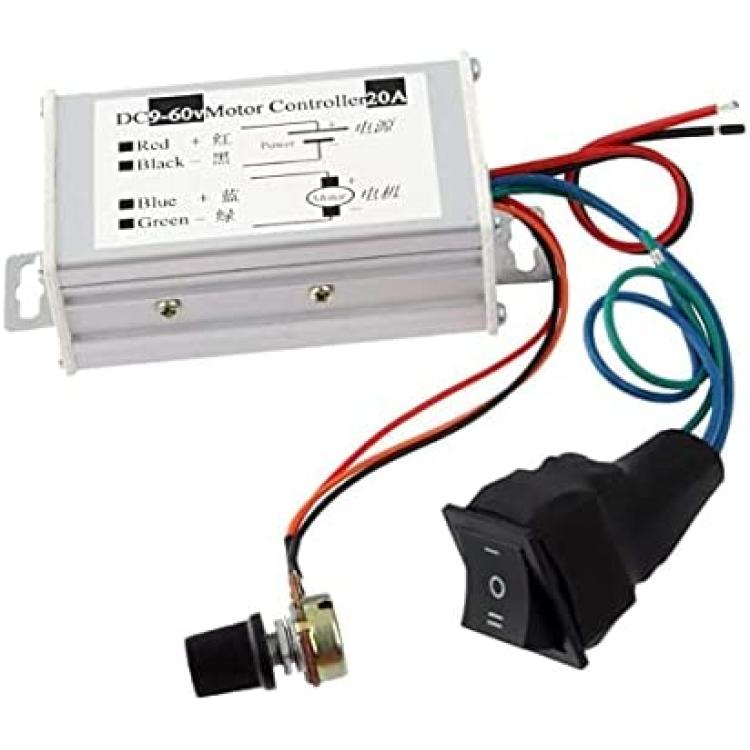

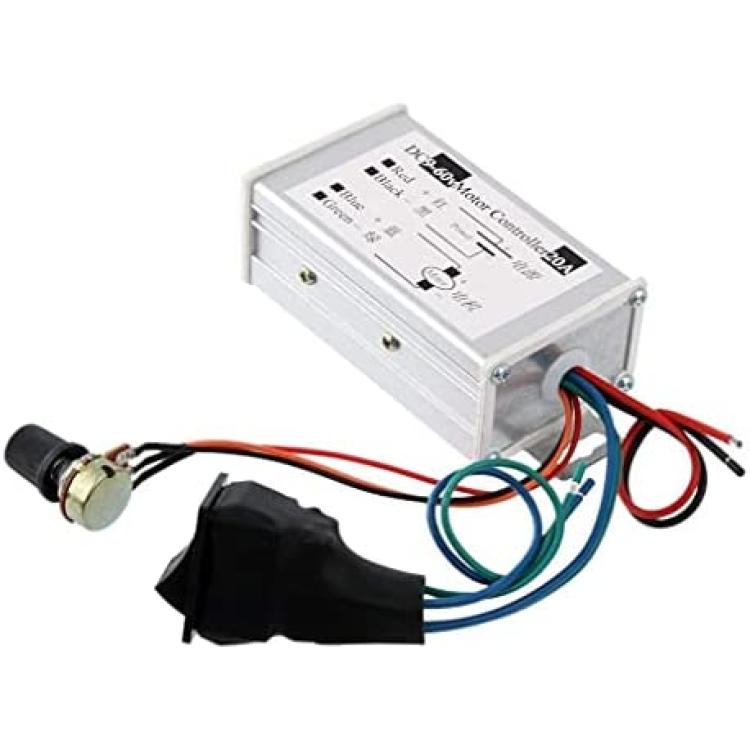

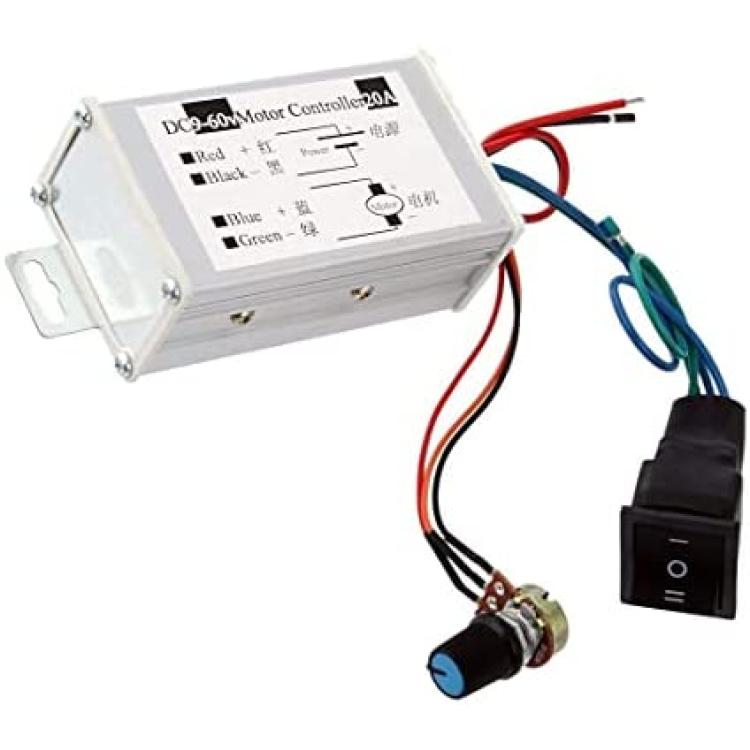

Motor Speed Controller DC 9V 12V 18V 24V 36V 50V 60V 20A Pulse Width Modulation Regulator 1200W Stepless Variable Speed Forward and Reverse Switch Pulsed Reverse Switch Pulse
About this product
*★ Product parameters: DC input voltage range 9V 12V 24V 48V 60V, output current 0-20A, power 1200W.
*★ Widely used: DC motor driver can be used for DC motor speed regulation and dimming.

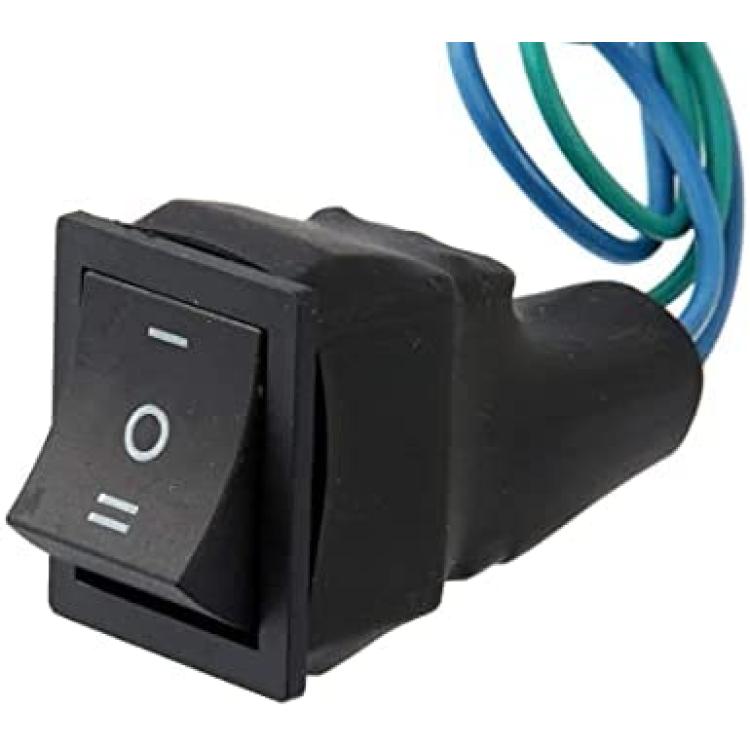

*★ Speed control: Our motor control board can adjust the motor speed through potentiometers, and support clockwise/counterclockwise rotation adjustment.
*★ Note: Do not switch another direction when running at high speed. It can not be used on electric vehicles, nor on Unnet speed reducer motors.
*★ PWM: Pulse width modulation (PWM) with wide/variable speed has the advantage of making full use of the energy of the power supply, and the circuit is efficient.
Description
Hello, I am very happy to serve you.
?Product parameters: ?
Input voltage: DC9-60V (universal)
Output voltage: linear under load
Output current: 0-20A (within 18A for long time use, pay attention to keep the module cool and cool)
Ultimate power: 1200W
Speed ??type: PWM adjustment

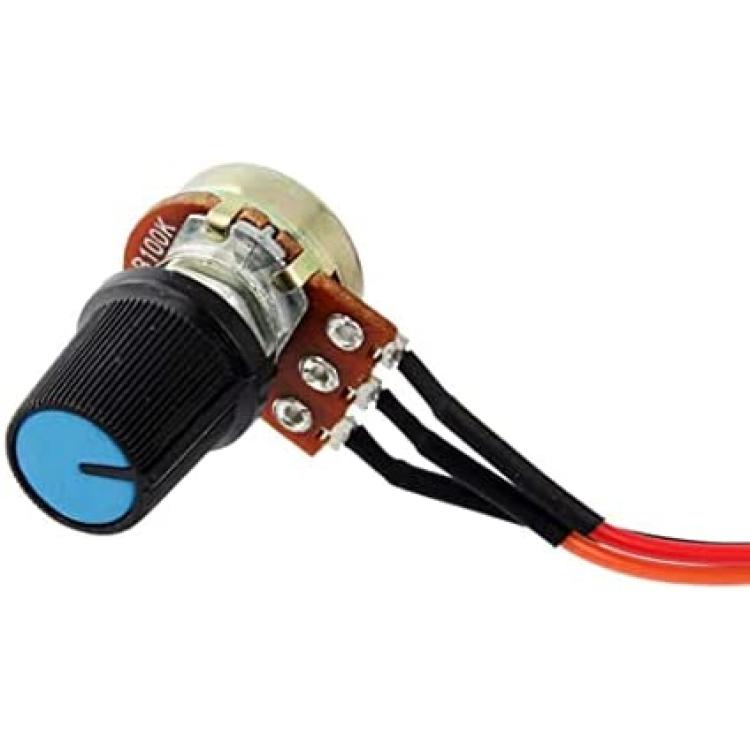

Speed ??control mode: potentiometer (linear)
Speed ??range: 0—100% Control frequency: 25KHZ
Module size: 92MM*52MM*36MM
Product net weight: 130 grams
According to the installation size: the back fixing hole center distance 104MM
Potentiometer according to the opening: 7MM
After-sales warranty: This product can be returned or refunded for any quality problems within two years.

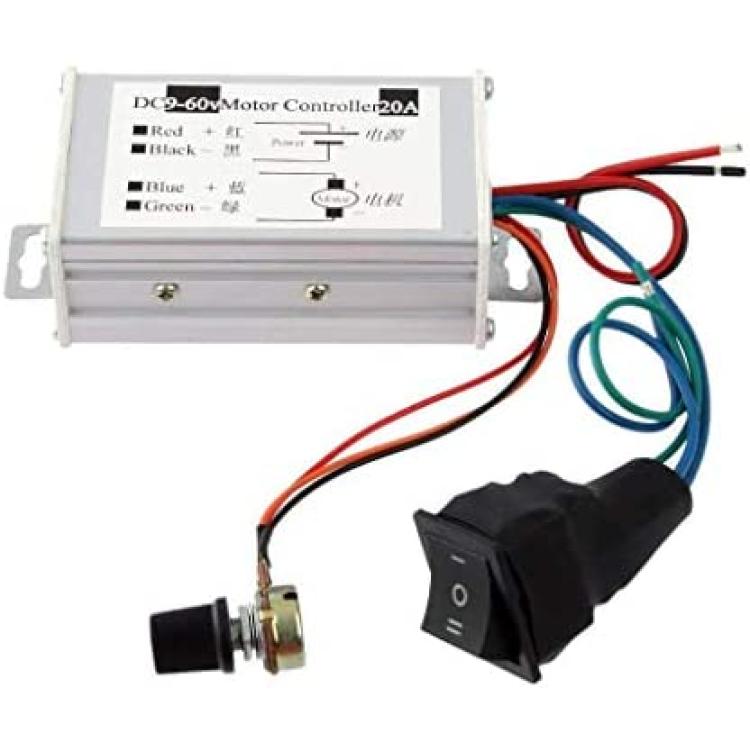

 ?Connection method: ?
Red line connection: positive power supply +
Black line connection: negative power supply -
Blue line connection: motor positive +
Green line connection: negative -
 ?Please note: ?
1. This governor is used for DC brushed motors.
2, not suitable for DC brushless motor speed; can not be used as a regulator or regulator!
3. The motor can be divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
? Package includes: ?
1 × DC governor 20A
2×Quick connector
?Special reminder: ?
The DC motor governor is connected to the DC power supply.
Never connect directly to home 110V AC.
Otherwise the damage will be at your own risk!
